Effects of Bi Doping on the In15Sb85 Phase Change Recording Thin Film

Sin Liang Ou; Po Cheng Kuo; Shu Chi Sheu; Chih Hsiang Hsiao; Don Yau Chiang; Wei Tai Tang

doi:10.4028/www.scientific.net/AMR.47-50.813

Paper Titles

The Fabrication of Nanoporous Hydroxyapatite Ceramics
p.797

Effect of Copper Oxide on the Sintering of Alumina Ceramics
p.801

The In Vivo Study of Biomimetic Chitosan Substrates’ Osteoinduction Effects
p.805

The Strength Deterioration of Aramid Fiber in High Temperature
p.809

Effects of Bi Doping on the In₁₅Sb₈₅ Phase Change Recording Thin Film
p.813

Carbon Nanotube Composites for Vibration Damping
p.817

Synthetic Biomimetic Carbonate-Hydroxyapatite Nanocrystals for Enamel Remineralization
p.821

Influence of Ru(II) Bipyridyl Complex on the Photocatalytic H₂ Evolution over TiO₂ Nanoparticles with Mesostructures
p.825

Study on the Deformation of TiNi/AlSi Composite Alloy Using DSCM Method
p.829

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 47-50Effects of Bi Doping on the In15Sb85 Phase Change...

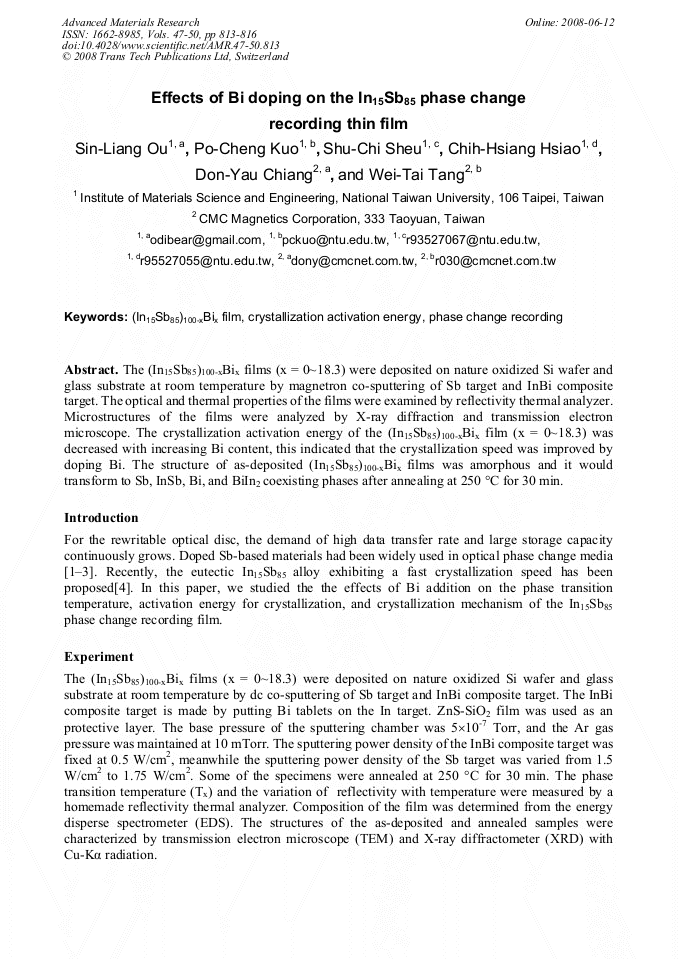

Effects of Bi Doping on the In₁₅Sb₈₅ Phase Change Recording Thin Film

Abstract:

The (In15Sb85)100-xBix films (x = 0~18.3) were deposited on nature oxidized Si wafer and glass substrate at room temperature by magnetron co-sputtering of Sb target and InBi composite target. The optical and thermal properties of the films were examined by reflectivity thermal analyzer. Microstructures of the films were analyzed by X-ray diffraction and transmission electron microscope. The crystallization activation energy of the (In15Sb85)100-xBix film (x = 0~18.3) was decreased with increasing Bi content, this indicated that the crystallization speed was improved by doping Bi. The structure of as-deposited (In15Sb85)100-xBix films was amorphous and it would transform to Sb, InSb, Bi, and BiIn2 coexisting phases after annealing at 250 °C for 30 min.
