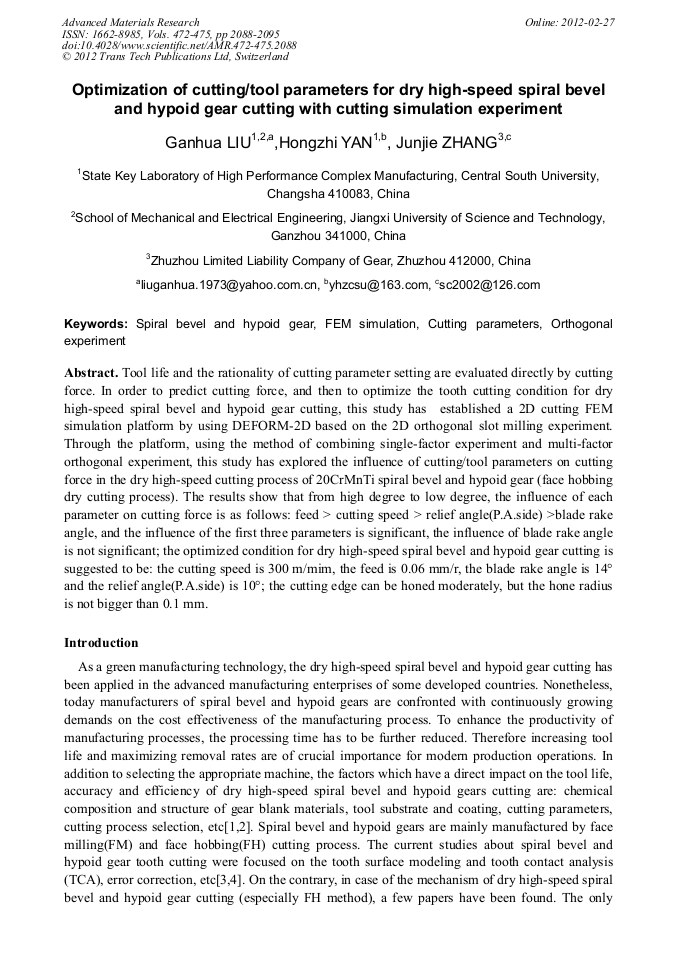

Optimization of Cutting/Tool Parameters for Dry High-Speed Spiral Bevel and Hypoid Gear Cutting with Cutting Simulation Experiment

Abstract:

Tool life and the rationality of cutting parameter setting are evaluated directly by cutting force. In order to predict cutting force, and then to optimize the tooth cutting condition for dry high-speed spiral bevel and hypoid gear cutting, this study has established a 2D cutting FEM simulation platform by using DEFORM-2D based on the 2D orthogonal slot milling experiment. Through the platform, using the method of combining single-factor experiment and multi-factor orthogonal experiment, this study has explored the influence of cutting/tool parameters on cutting force in the dry high-speed cutting process of 20CrMnTi spiral bevel and hypoid gear (face hobbing dry cutting process). The results show that from high degree to low degree, the influence of each parameter on cutting force is as follows: feed > cutting speed > relief angle(P.A.side) >blade rake angle, and the influence of the first three parameters is significant, the influence of blade rake angle is not significant; the optimized condition for dry high-speed spiral bevel and hypoid gear cutting is suggested to be: the cutting speed is 300 m/mim, the feed is 0.06 mm/r, the blade rake angle is 14° and the relief angle(P.A.side) is 10°; the cutting edge can be honed moderately, but the hone radius is not bigger than 0.1 mm.

• Periodical: Advanced Materials Research (Volumes 472-475)
• Pages: 2088-2095
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.472-475.2088
• Online since: February 2012
• Authors: Gan Hua Liu, Hong Zhi Yan, Jun Jie Zhang
• Keywords: Cutting Parameter, FEM Simulation, Orthogonal Experiment, Spiral Bevel and Hypoid Gear

References

[1] Xie Yaodong, Zhang Junjie, Wang Zhiyong, Application of PowerCUTTINGTM technology in the cutting process of spiral bevel and hypoid gears, Automotive Gear (1)(2011)29-34 (in Chinese).

[2] F. Klocke, A. Klein, Tool life and productivity improvement: Through cutting parameter setting and tool design in dry high-speed bevel gear tooth cutting, Gear Technology 23(3)(2006) 40-48.

DOI: 10.1016/j.procir.2012.04.010

[3] T. Nishino, Computerized modeling and Loaded Tooth Contact Analysis of Hypoid Gears by Face Hobbing Process, Journal of Advanced Mechanical Design, System, and Manufacturing 3(3)(2009)224-235.

DOI: 10.1299/jamdsm.3.224

[4] Q. Fan, Tooth surface error correction for face-hobbed hypoid gears, ASME Journal of Mechanical Design132(1)(2010) 011004-1-8.

DOI: 10.1115/1.4000646

[5] C. Brecher, F. Klocke, T. Schröder, Analysis and simulation of different manufacturing processes for bevel gear cutting, Journal of Advanced Mechanical Design, System, and Manufacturing 2(1)(2008)165-172.

DOI: 10.1299/jamdsm.2.165

[6] K. –D. Bouzakis, O. Friderikos, I. Tsiafis, FEM-supported simulation of chip formation and flow in gear hobbing of spur and helical gears, CIRP Journal of Manufacturing Science and Technology(1)(2008)18-26.

DOI: 10.1016/j.cirpj.2008.06.004

[7] Liu Ganhua, YAN Hongzhi, Study on constitutive model of 20CrMnTi gear steel in cutting process, Advanced Materials Research291-294(2011)311-317.

DOI: 10.4028/www.scientific.net/amr.291-294.311
