Influence of Magnesium Content on Preparation of Aluminum Foam

Hong Jie Luo; Ping Zhang; Yi Han Liu; Guang Chun Yao

doi:10.4028/www.scientific.net/AMR.476-478.1388

Paper Titles

Preparation and Magnetostriction of Epoxy-Bonded Pr(Fe_0.4Co_0.6)_1.93 Composites
p.1370

Effect of Deposition Polymerization Technique of Pyrrole on Properties of UHMWPE Fiber
p.1374

Hierarchical Porous Hollow Microsphere for Drug Release
p.1379

Synthesis and Electrochromic Properties of Soluble Polythiophenes
p.1383

Influence of Magnesium Content on Preparation of Aluminum Foam
p.1388

A Kind of Heterogeneous Data Synchronous Design for the Internet of Things
p.1392

The Electrochemical Behavior of the Rehealing Oxide Scales After Pitting Corrosion
p.1399

Multi-Functional Fabric Development and Study on its Performance
p.1403

Preparation of Raspberry-Like Polymer/Silica Composite Particles through Cationic Soap-Free Emulsion Polymerization
p.1408

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 476-478Influence of Magnesium Content on Preparation of...

Influence of Magnesium Content on Preparation of Aluminum Foam

Abstract:

Aluminum foam was prepared by foaming in melt route. Bubble growth and structure of the obtained foam blocks were investigated. Viscosity and surface tension of aluminum melt were also analyzed after adding Mg into it. The main results are as follows: expanding velocity of aluminum melt is accelerated after adding Mg and height of the foamed block is higher than that without adding Mg. The apparent density of aluminum foam increases first and then declines with increasing the Mg content. Intermetallic compounds existing in aluminum melt are largely oxidized when Mg is put into the melt and amount of the composite oxides increases obviously. These changes result in elevation of viscosity and reduction of surface tension in the aluminum melt.

You might also be interested in these eBooks

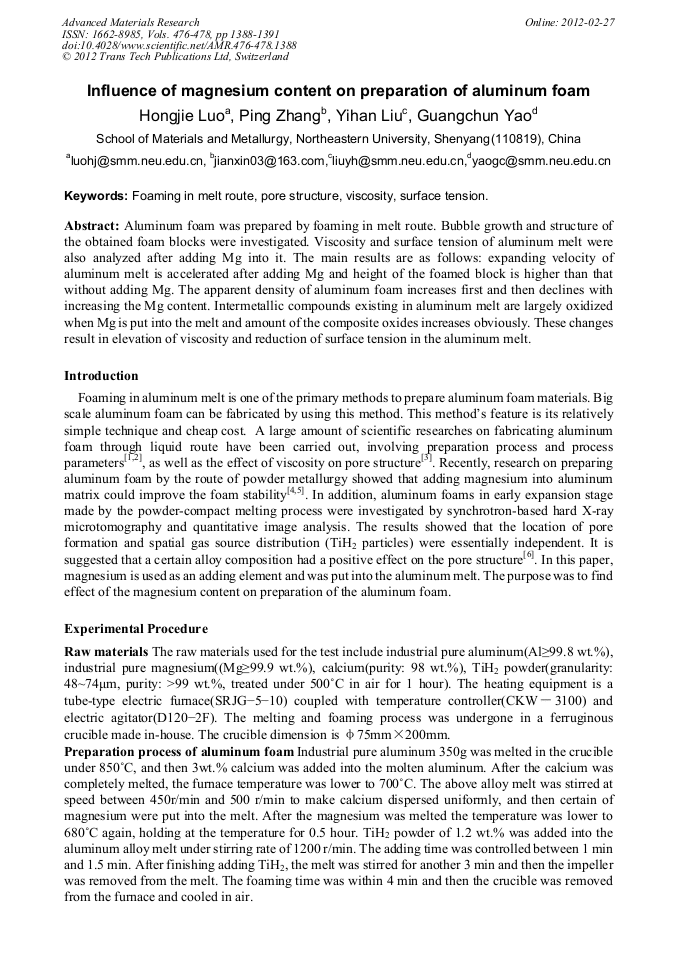

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 476-478)

Pages:

1388-1391

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.476-478.1388

Citation:

Cite this paper

Online since:

February 2012

Authors:

Hong Jie Luo, Ping Zhang, Yi Han Liu, Guang Chun Yao

Keywords:

Foaming in Melt Route, Pore Structure, Surface Tension, Viscosity

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] T. Miyoshi, M. Itoh, S. Akiyama, et al: Advanced Engineering Materials Vol.2(2000), 1438-1656

Google Scholar

[2] F. S. Han, J. N. Wei, H. F. Cheng, et al: Journal of Materials Processing Technology Vol.138 (2003), 505-507

Google Scholar

[3] C. C. Yang, H. Nakae: Journal of Materials Processing Technology Vol.141 (2003), 202-206

Google Scholar

[4] S. Asavavisithchai, A. R. Kennedy: Scripta Materialia Vol. 54 (2006), 1331-1334

Google Scholar

[5] Min Zhang, Guoyin Zu, GuangchunYao: Journal of Functional Materials Vol.38(2007), 576-579(In Chinese)

Google Scholar

[6] A. Rack, H. M. Helwig, A. Butow: Acta Materialia Vol.57 (2009), 4809-4821

Google Scholar

[7] Yuqing Wang, Yuqin Wu, Xiufang Bian: Chinese Science bulletin Vol.52(2007), 264-267(In Chinese)

Google Scholar

[8] Bing Li: Preparation of pure aluminum-based faom materials by direct foaming in melt( Shenyang, Northeastern University, 2008)(In Chinese)

Google Scholar
