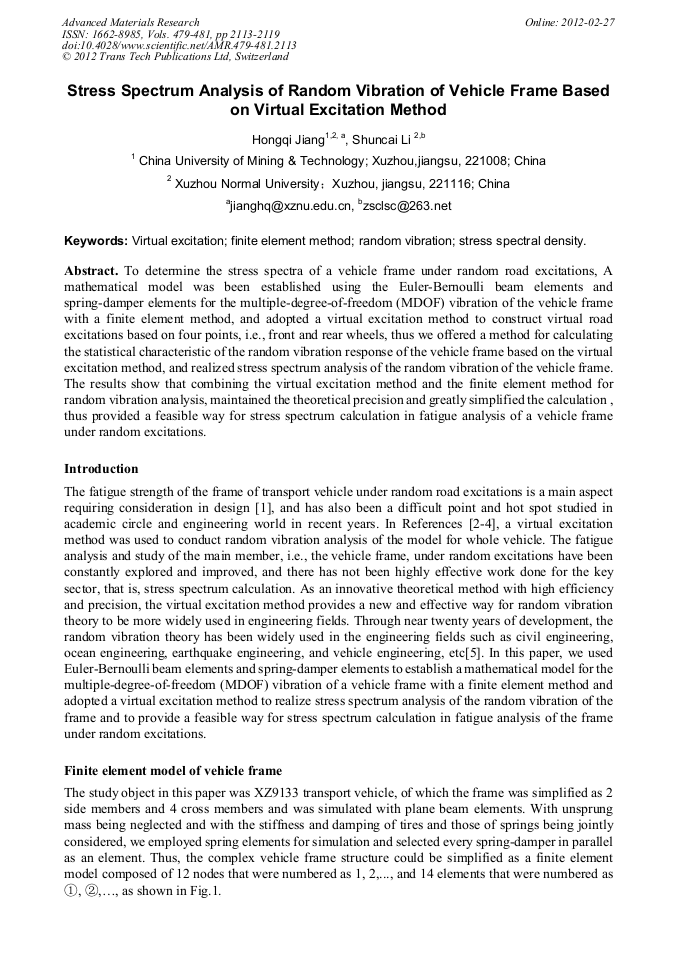

Stress Spectrum Analysis of Random Vibration of Vehicle Frame Based on Virtual Excitation Method

Abstract:

To determine the stress spectra of a vehicle frame under random road excitations, A mathematical model was been established using the Euler-Bernoulli beam elements and spring-damper elements for the multiple-degree-of-freedom (MDOF) vibration of the vehicle frame with a finite element method, and adopted a virtual excitation method to construct virtual road excitations based on four points, i.e., front and rear wheels, thus we offered a method for calculating the statistical characteristic of the random vibration response of the vehicle frame based on the virtual excitation method, and realized stress spectrum analysis of the random vibration of the vehicle frame. The results show that combining the virtual excitation method and the finite element method for random vibration analysis, maintained the theoretical precision and greatly simplified the calculation , thus provided a feasible way for stress spectrum calculation in fatigue analysis of a vehicle frame under random excitations.

• Periodical: Advanced Materials Research (Volumes 479-481)
• Pages: 2113-2119
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.479-481.2113
• Online since: February 2012
• Authors: Hong Qi Jiang, Shun Cai Li
• Keywords: Finite Element Method (FEM), Random Vibration, Stress Spectral Density, Virtual Excitation

References

[1] W.M. Pan, M.J. Yang and Y. Xu. Journal of Southwest Jiaotong University, 38(1): 12-16,2003.(in Chinese).

[2] L.L. Zhang, J.S. Tang and L.B. Li. Vibration and Impact, 25 (6): 167-169, 2006. (in Chinese).

[3] J. Li, Y.Y. Qin and Q. Zhao. Journal of Jilin University (Engineering and Technology Edition), 40(2): 316-319,2010. (in Chinese).

[4] J. Li, Y.Y. Qin and Q. Zhao. Automobile Engineering, 32(3): 254-257,2010. (in Chinese).

[5] J.H. Lin and Y.H. Zhang. Virtual Excitation Method for Random Vibration. 2004. (in Chinese).

[6] X.T. Zhang, Z.P. Wang, and B.C. Huang, et al. Structural Vibration Mechanics. Tongji University . 2005. (in Chinese).

[7] W.D. Wang, L.N. Sun and Z.J. Du. Journal of Jilin University (Engineering and Technology Edition), 40(4): 1082-1085,2010. (in Chinese).

[8] W.T.Xu, J.H. Lin, Y.H. Zhang.Latin America Journal of Solid and Structures. Vol.6:169-183,2009.
