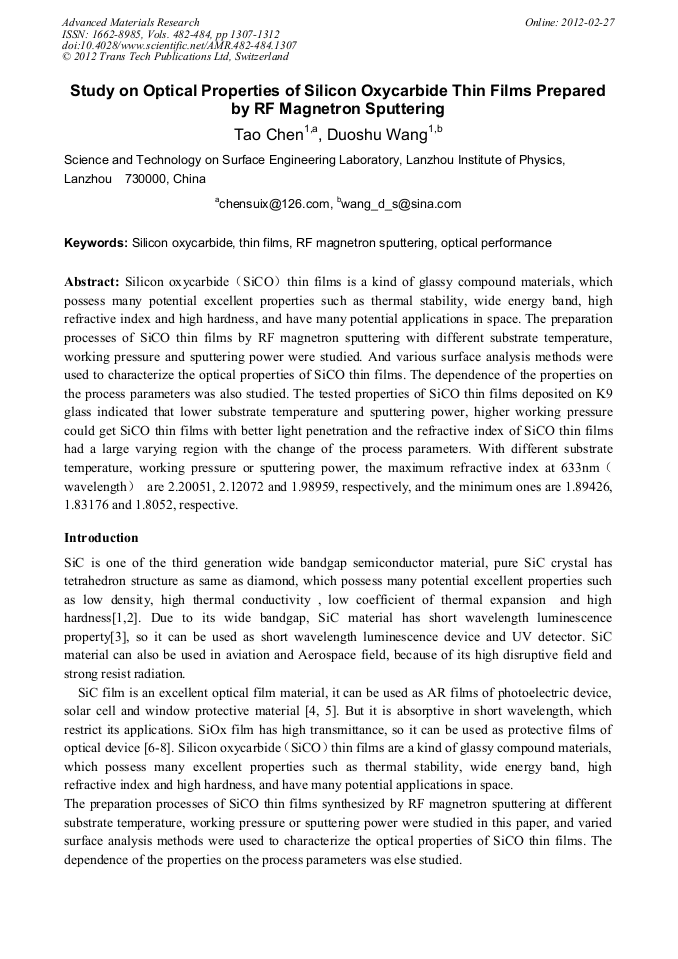

Study on Optical Properties of Silicon Oxycarbide Thin Films Prepared by RF Magnetron Sputtering

Abstract:

Silicon oxycarbide（SiCO）thin films is a kind of glassy compound materials, which possess many potential excellent properties such as thermal stability, wide energy band, high refractive index and high hardness, and have many potential applications in space. The preparation processes of SiCO thin films by RF magnetron sputtering with different substrate temperature, working pressure and sputtering power were studied. And various surface analysis methods were used to characterize the optical properties of SiCO thin films. The dependence of the properties on the process parameters was also studied. The tested properties of SiCO thin films deposited on K9 glass indicated that lower substrate temperature and sputtering power, higher working pressure could get SiCO thin films with better light penetration and the refractive index of SiCO thin films had a large varying region with the change of the process parameters. With different substrate temperature, working pressure or sputtering power, the maximum refractive index at 633nm（wavelength） are 2.20051, 2.12072 and 1.98959, respectively, and the minimum ones are 1.89426, 1.83176 and 1.8052, respective.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 1307-1312
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.1307
• Online since: February 2012
• Authors: Tao Chen, Duo Shu Wang
• Keywords: Optical Performance, RF Magnetron Sputtering, Silicon Oxycarbide, Thin Film

References

[1] Cary L Harris et al. Properties of Silicon Carbide [M]. INSPEC, Institution of Electrical Engineers, London, 1995.

[2] Stephen E. Saddow, Anant Agarwal et al. Advances in Silicon Carbide Processing and Applications [M]. Artech House, Inc. New York, 2001.

[3] N.I. Klyui, V.G. Litovchenko, A.G. Rozhin et al. Silicon solar cells with antireflection diamond-like carbon and silicon carbide films [J]. Solar Energy Materials & Solar Cells, 2002, 72: 597~603.

DOI: 10.1016/s0927-0248(01)00209-4

[4] Shinsuke Miyajima, Akira Yamada, Makoto Konagai. Highly conductive microcrystalline silicon carbide films deposited by the hot wire cell method and its application to amorphous silicon solar cells [J]. Thin Solid Films, 2003, 430: 274~277.

DOI: 10.1016/s0040-6090(03)00132-9

[5] Y. Huang, T. Chen, A. Gordijn et al. Preparation of microcrystalline silicon solar cells on microcrystalline silicon carbide window layers grown with HWCVD at low temperature [J]. Journal of Non-Crystalline Solids, 2008, 354: 2430~2434.

DOI: 10.1016/j.jnoncrysol.2007.09.067

[6] H. Omanda, T. Brousse, C. Marhic, et al. Improvement of the Thermal Stability of LiNi0.8Co0.2O2 Cathode by a SiOx Protective Coating [J]. J. Electrochem. Soc., 2004, 151(6): A922~A929.

DOI: 10.1149/1.1710892

[7] Cheng Xu, Hongcheng Dong, Jianyong Ma, et al. Influences of SiO2 protective layers and annealing on the laser-induced damage threshold of Ta2O5 films [J]. Chinese Optics of Letters, 2008, 6(3): 228~230.

DOI: 10.3788/col20080603.0228

[8] Ulrike Schulz, Stefan Jakobs, and Norbert Kaiser. SiO2 protective coatings on plastic optics deposited with plasma IAD [J]. Proc. SPIE 2776, 1996: 169~174.

DOI: 10.1117/12.246810
