Approach to Detect and Control Gap-Width with Peak Current in Pulse ECM

Abstract:

In this study, in order to keep the feed rate of the tool electrode the same as the dissolution rate of the workpiece material in the pulse ECM, a method was proposed to detect and control the gap-width according to the relationship between the current waveform and the gap-width. First, the relationship between the current waveform and the gap-width was investigated experimentally. It was found that there is a correlation in the transient overshoot of the current waveform and the gap-width. Based on this correlation, a system used to detect and control the gap width during machining was developed. This system is composed of the circuit that detects the change in the current waveform and the algorithm that processes the detected signals from the circuit. The effectiveness of the gap-width detecting and controlling method was verified by experimental results.

You might also be interested in these eBooks

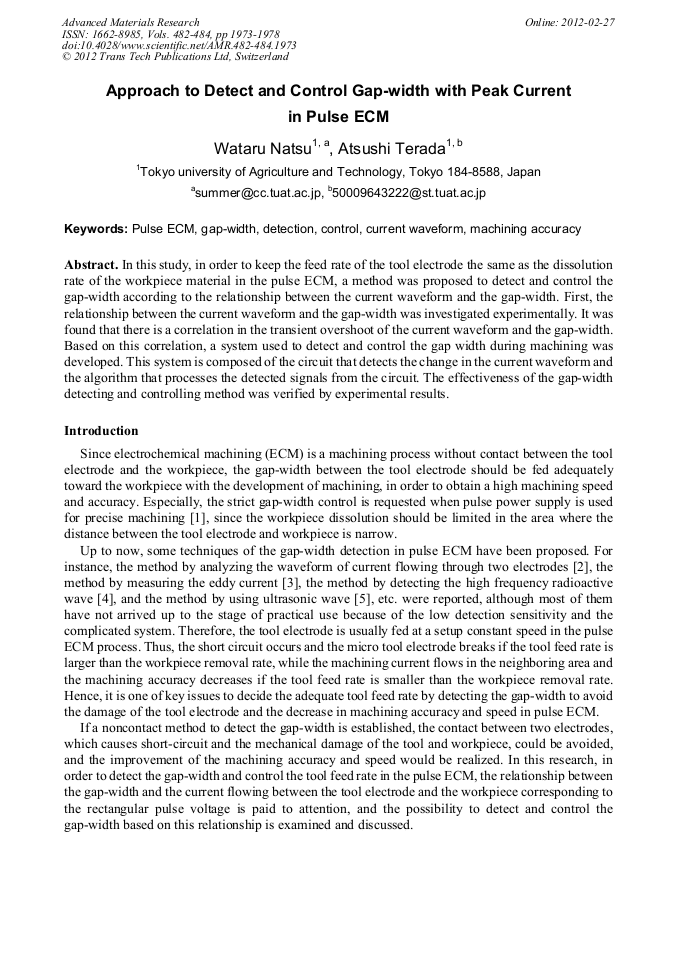

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 482-484)

Pages:

1973-1978

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.482-484.1973

Citation:

Cite this paper

Online since:

February 2012

Authors:

Wataru Natsu, Atsushi Terada

Keywords:

Control, Current Waveform, Detection, Gap-Width, Machining Accuracy, Pulse ECM

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K.P. Rajurkar, D.Zhu, J.A. McGeough, J. Kozak, A. De Silva, New Developments in Electro-Chemical Machining, Annals of the ClRP. 48(2)(1999) 567-579

DOI: 10.1016/s0007-8506(07)63235-1

Google Scholar

[2] B. Wei, K. P. Rajurkar, S. Talpallikar, Identification of Interelectrode Gap Sizes in Pulse Electrochemical Machining, Journal of the Electrochemical Society. 144(11)(1997) 3913-3918

DOI: 10.1149/1.1838110

Google Scholar

[3] C. Ing, E.S. Bignon, C. Bedrin, Application of Eddy Currents to In-process Measurement of the Gap in ECM, Annals of the CIRP. 31(1)(1982) 115-119

DOI: 10.1016/s0007-8506(07)63280-6

Google Scholar

[4] J.A. De Silva, K. McGeough, Process Monitoring of Electrochemical Micromachining, International Journal of Materials Processing Technology. 76(1998) 165-169

DOI: 10.1016/s0924-0136(97)00334-8

Google Scholar

[5] D. Clifton, A.R. Mount, G.M. Alder, D. Jardine, Ultrasonic Measurement of the Inter Electrode Gap in Electrochemical Machining, International Journal of Machine Tools and Manufacture. 42(2002) 1259-1267

DOI: 10.1016/s0890-6955(02)00041-x

Google Scholar

[6] A. Terada, W. Natsu, Improvement of ECM Characteristics by Removing Byproducts from Gap Area with Tool Motion Control, Proceedings of JSPE Autumn Meeting 2010. (2010) 227-228 (in Japanese)

Google Scholar

[7] W. Natsu, T. Kunimi, Analysis of ECM Phenomena with Equivalent Circuit for Electrolysis, International Journal of Electrical Machining. 15(2010) 45-50

DOI: 10.2526/ijem.15.45

Google Scholar
