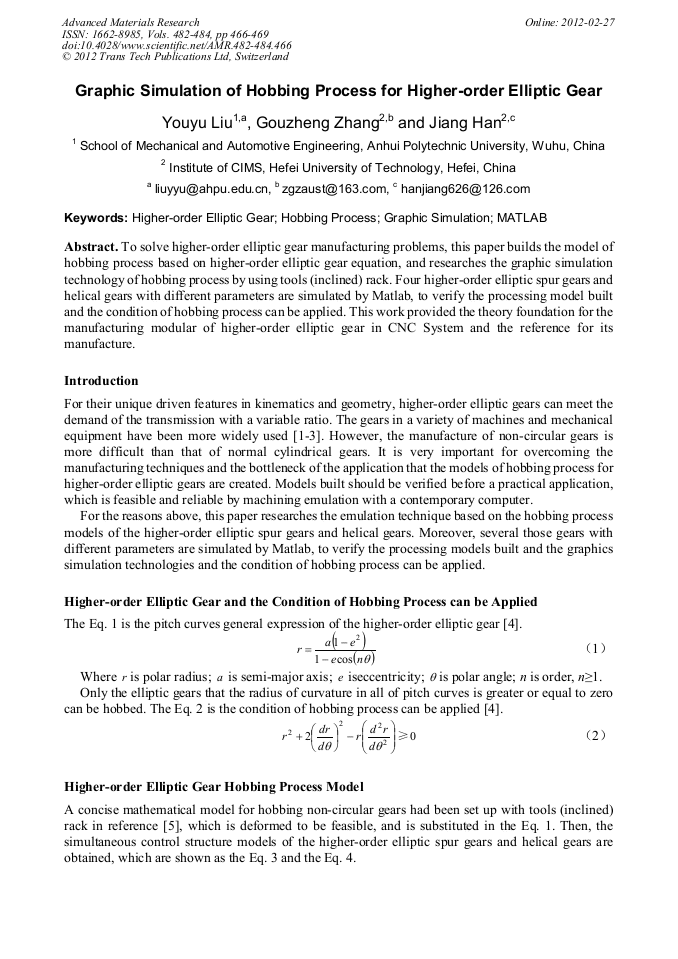

Graphic Simulation of Hobbing Process for Higher-Order Elliptic Gear

Abstract:

To solve higher-order elliptic gear manufacturing problems, this paper builds the model of hobbing process based on higher-order elliptic gear equation, and researches the graphic simulation technology of hobbing process by using tools (inclined) rack. Four higher-order elliptic spur gears and helical gears with different parameters are simulated by Matlab, to verify the processing model built and the condition of hobbing process can be applied. This work provided the theory foundation for the manufacturing modular of higher-order elliptic gear in CNC System and the reference for its manufacture.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 466-469
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.466
• Online since: February 2012
• Authors: You Yu Liu, Gou Zheng Zhang, Jiang Han
• Keywords: Graphic Simulation, Higher-Order Elliptic Gear, Hobbing Process, MATLAB
