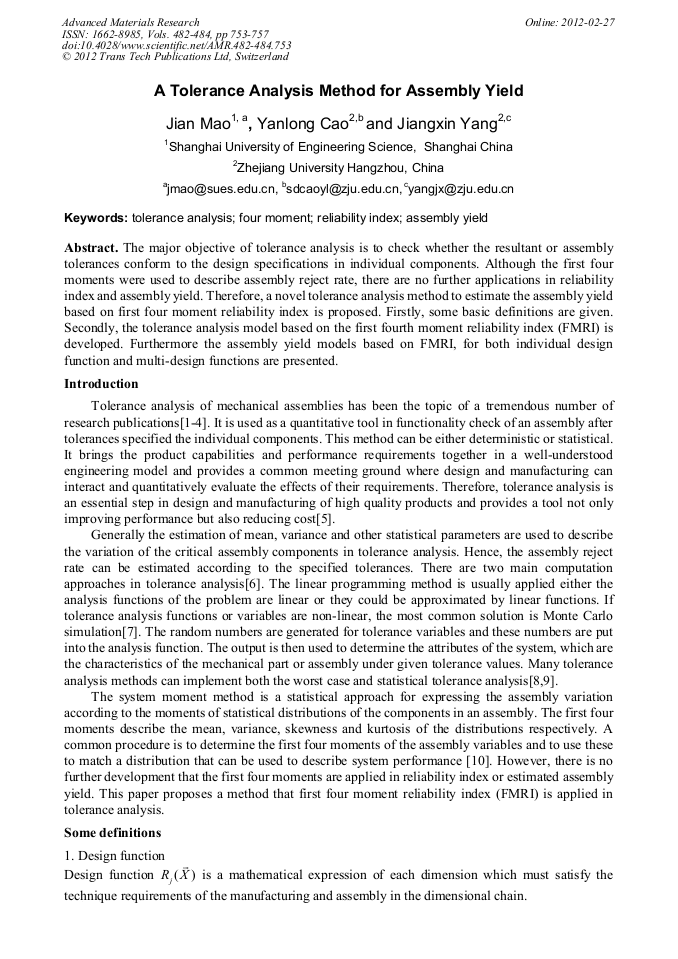

A Tolerance Analysis Method for Assembly Yield

Abstract:

The major objective of tolerance analysis is to check whether the resultant or assembly tolerances conform to the design specifications in individual components. Although the first four moments were used to describe assembly reject rate, there are no further applications in reliability index and assembly yield. Therefore, a novel tolerance analysis method to estimate the assembly yield based on first four moment reliability index is proposed. Firstly, some basic definitions are given. Secondly, the tolerance analysis model based on the first fourth moment reliability index (FMRI) is developed. Furthermore the assembly yield models based on FMRI, for both individual design function and multi-design functions are presented.

• Periodical: Advanced Materials Research (Volumes 482-484)
• Pages: 753-757
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.482-484.753
• Online since: February 2012
• Authors: Jian Mao, Yan Long Cao, Jiang Xin Yang
• Keywords: Assembly Yield, Four Moment, Reliability Index, Tolerance Analysis

References

[1] Shan A, Roth RN, Wilson RJ. A new approach to statistical geometrical tolerance analysis[J]. Int J Adv Manuf Technol, 1999,15:222–230

[2] Hong YS, Chang TC. A comprehensive review of tolerancing research[J]. Int J Prod Res. 2002, 40(11): 2425-2459

[3] Kang Y, Rong Y, Yang JC. Computer-aided fixture design verification. Part 2. tolerance analysis[J]. Int J Adv Manuf Technol, 2003, 21:836–841

[4] Kamali M, Vignat F, Desrochers A, Villeneuve F. 3D Simulation of Manufacturing Defects for Tolerance Analysis[J]. Journal of Computing and Information Science in Engineering, 2010,10: 1~ 13

DOI: 10.1115/1.3290768

[5] Ngoi BKA, Lim LEN, Ong AS, Lim BH. Applying the coordinate tolerance system to tolerance stack analysis involving position tolerance[J]. Int J Adv Manuf Technol, 1999, 15:404–408.

DOI: 10.1007/s001700050083

[6] Liu JD. Geometric tolerance analysis and synthesis using genetic algorithms[D]. Charlotte: The university of north carolina at charlotte, 2003.

[7] Huang SH, Zhang HC. Tolerance analysis in setup planning for rotational parts[J]. Journal of Manufacturing systems, 1996, 15(5): 340-350

DOI: 10.1016/0278-6125(96)84197-5

[8] Massimiliano M, Wilma P. A review of two models for tolerance analysis of an assembly: vector loop and matrix[J]. Int J Adv Manuf Technol (2009) 43:1106–1123.

DOI: 10.1007/s00170-008-1790-0

[9] Gao J, Chase KW, Magleby SP. Generalized 3-D tolerance analysis of mechanical assemblies with small kinematic adjustments[J]. IIE Transactions, 1998,30:367–377

DOI: 10.1080/07408179808966476

[10] Chase KW, Magleby SP, Gao J. Tolerance analysis of 2-D and 3-D mechanical assemblies with small kinematic adjustments[M]. Advanced Tolerancing Techniques: John Wiley, 1997: 103-138.

[11] Koksal G, Fathi Y. Statistical tolerancing using designed experiments in a noisy environment[M]. Computers & Industrial Engineering, 2003, 44:515–526

DOI: 10.1016/s0360-8352(02)00234-6

[12] Ross S M. A First Course in Probability[M]. Beijing: Posts&Telecom Press,(2009)

[13] Johnson ME, Ramberg JS, Wang C. The Johnson translation system in Monte Carlo studies[J]. Communications in Statistics - Simulation and Computation, 1982, 11(5):521-525

DOI: 10.1080/03610918208812272
