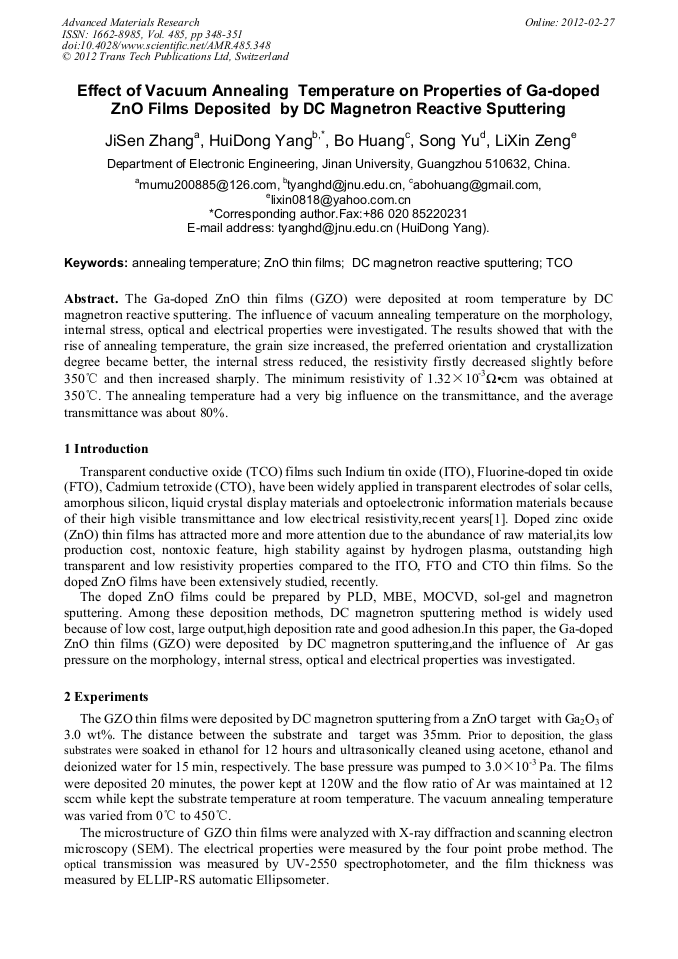

Effect of Vacuum Annealing Temperature on Properties of Ga-Doped ZnO Films Deposited by DC Magnetron Reactive Sputtering

Abstract:

The Ga-doped ZnO thin films (GZO) were deposited at room temperature by DC magnetron reactive sputtering. The influence of vacuum annealing temperature on the morphology, internal stress, optical and electrical properties were investigated. The results showed that with the rise of annealing temperature, the grain size increased, the preferred orientation and crystallization degree became better, the internal stress reduced, the resistivity firstly decreased slightly before 350°C and then increased sharply. The minimum resistivity of 1.32×10^-3Ω•cm was obtained at 350°C. The annealing temperature had a very big influence on the transmittance, and the average transmittance was about 80% in the visible range.

• Periodical: Advanced Materials Research (Volume 485)
• Pages: 348-351
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.485.348
• Online since: February 2012
• Authors: Ji Sen Zhang, Hui Dong Yang, Bo Huang, Song Yu, Li Xin Zeng
• Keywords: Annealing Temperature, DC Magnetron Reactive Sputtering, TCO, ZnO Thin Film

References

[1] LIN Ying-bin, WU Li-ping, LIN Luan:Journal of Fujian Normal University (Natural Science Edition), 2009, 5, Vol.25, No.3,P.58

[2] ZHAO Yong, YU Jin, YU Peng:Journal of Nanchang University(Natural Science), Vol.35, No.3 Jun.2011, P.258

[3] XIE Quntiao, MAO Shiping, XUE Shoudi:PIEZOELECTRICS & ACOUSTOOPTICS, Vol.33, No.2. Appl.2011, P.299

[4] Z Q Xu, H Deng, Y Li:Materials science in semiconductor processing, Sep.2006, P.132

[5] SHI Jun-dai, YANG Huidong, HUANG BO:Science Technology and Engineering, Vol.11, No.6, 2, 2011,P.1192

[6] XU Ji-wen, WANG Hua, REN Ming-fang and CHENG Jun:Journal of Materials Science & Engineering, Vol.109, Oct.2007,P.764
