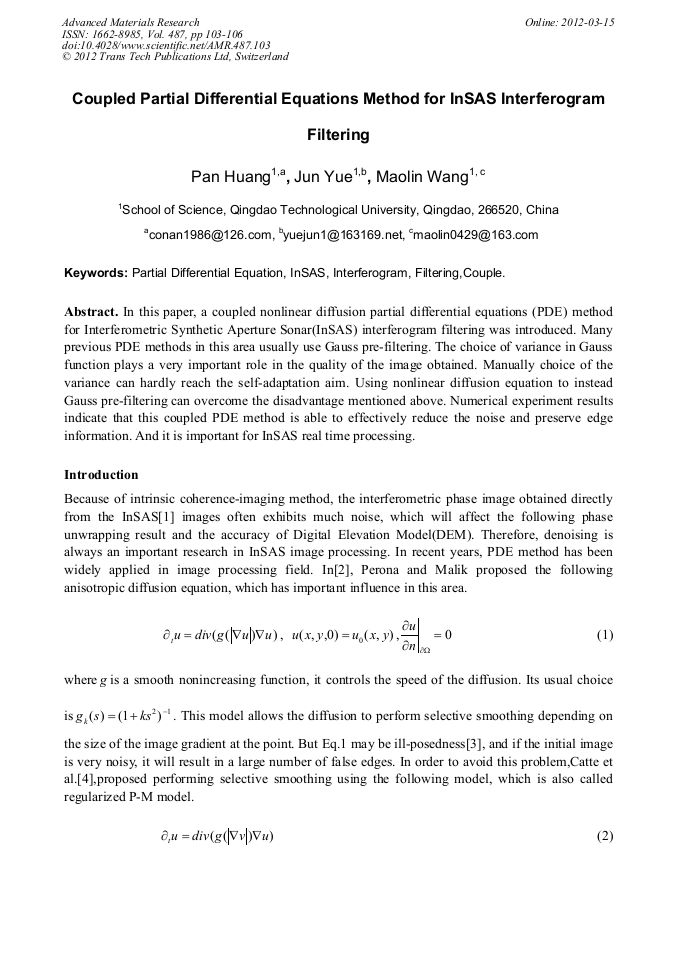

Coupled Partial Differential Equations Method for InSAS Interferogram Filtering

Abstract:

In this paper, a coupled nonlinear diffusion partial differential equations (PDE) method for Interferometric Synthetic Aperture Sonar(InSAS) interferogram filtering was introduced. Many previous PDE methods in this area usually use Gauss pre-filtering. The choice of variance in Gauss function plays a very important role in the quality of the image obtained. Manually choice of the variance can hardly reach the self-adaptation aim. Using nonlinear diffusion equation to instead Gauss pre-filtering can overcome the disadvantage mentioned above. Numerical experiment results indicate that this coupled PDE method is able to effectively reduce the noise and preserve edge information. And it is important for InSAS real time processing.

You might also be interested in these eBooks

Emerging Materials and Mechanics Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 487)

Pages:

103-106

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.487.103

Citation:

Cite this paper

Online since:

March 2012

Authors:

Pan Huang, Jun Yue, Mao Lin Wang

Keywords:

Couple, Filtering, InSAS, Interferogram, Partial Differential Equation (PDE)

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Griffiths, H.D. Rafik, T.A. Interferometric synthetic aperture sonar for high resolution 3-D mapping of the seabed[J]. IEE proceedings. Radar, sonar and navigation, 1997, 144(2): 96-103.

DOI: 10.1049/ip-rsn:19971076

Google Scholar

[2] Perona P, Malik J. Scale-space and edge detection using anisotropic diffusion[J]. IEEE TPAMI, 1990, 12: 629-639.

DOI: 10.1109/34.56205

Google Scholar

[3] Yu-Li You, Wenyuan Xu, Allen Tannenbaum et al. Behavioral Analysis of Anisotropic Diffusion in Image Processing[J]. IEEE Transactions on Image Processing. 1996, Vol 5, No 11, 1539-1553.

DOI: 10.1109/83.541424

Google Scholar

[4] Catte F, Coll T, Lions P L, Morel J M. Image selective smoothing and edge detection by nonlinear diffusion[J]. SIAM J. Numer. Anal, 1992, 29: 182-193.

DOI: 10.1137/0729012

Google Scholar

[5] Chen Y, Barcelos C A Z, Mair B A. Smoothing and Edge Detection by Time-Varying Coupled Nonlinear Diffusion Equations[J]. Computer Vision and Image Understanding, 2001, 82: 85-100.

DOI: 10.1006/cviu.2001.0903

Google Scholar

[6] S. Osher,J. Sethian. Fronts propagating with curvature dependent speed, algorithms based on the Hamilton–Jacobi Formulation[J]. Journal of Computational Physics. 1988 , 79: 12–49.

DOI: 10.1016/0021-9991(88)90002-2

Google Scholar

[7] Goldstein RM, ZebkerHA, WemerCL. Satellite radar interferometry: two- dimensional phase unwrapping[J]. Radio Science, 1988, 23: 713-720.

DOI: 10.1029/rs023i004p00713

Google Scholar
