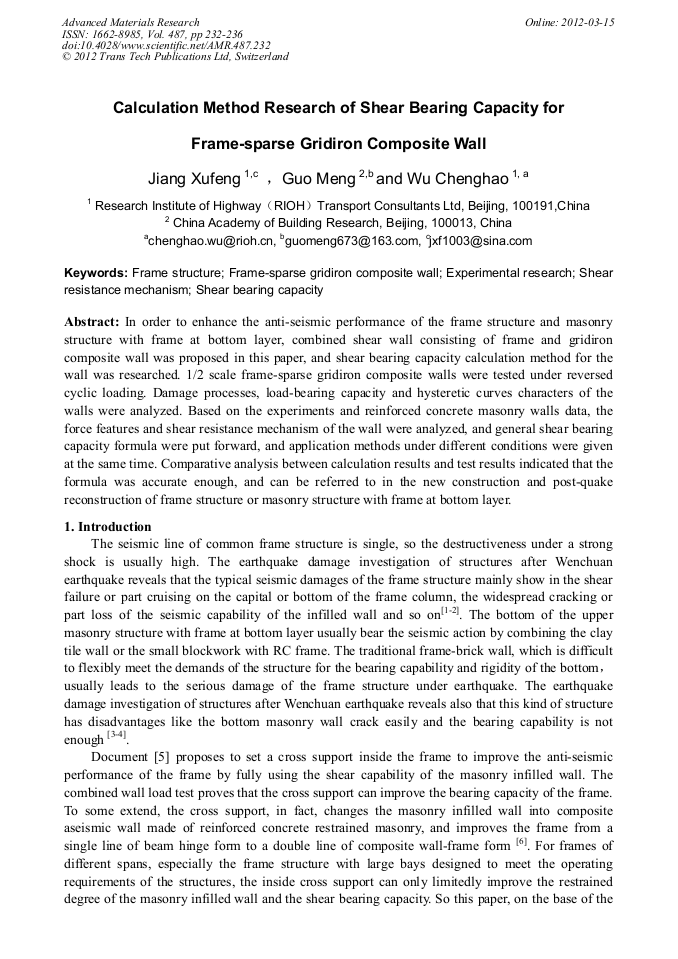

Calculation Method Research of Shear Bearing Capacity for Frame-Sparse Gridiron Composite Wall

Abstract:

In order to enhance the anti-seismic performance of the frame structure and masonry structure with frame at bottom layer, combined shear wall consisting of frame and gridiron composite wall was proposed in this paper, and shear bearing capacity calculation method for the wall was researched. 1/2 scale frame-sparse gridiron composite walls were tested under reversed cyclic loading. Damage processes, load-bearing capacity and hysteretic curves characters of the walls were analyzed. Based on the experiments and reinforced concrete masonry walls data, the force features and shear resistance mechanism of the wall were analyzed, and general shear bearing capacity formula were put forward, and application methods under different conditions were given at the same time. Comparative analysis between calculation results and test results indicated that the formula was accurate enough, and can be referred to in the new construction and post-quake reconstruction of frame structure or masonry structure with frame at bottom layer.

• Periodical: Advanced Materials Research (Volume 487)
• Pages: 232-236
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.487.232
• Online since: March 2012
• Authors: Xu Feng Jiang, Meng Guo, Cheng Hao Wu
• Keywords: Experimental Research, Frame Structure, Frame-Sparse Gridiron Composite Wall, Shear Bearing Capacity, Shear Resistance Mechanism

References

[1] Wang Wei, Xue Jianyang, Zhang Hongmei, et al. Seismic design and lessons learnt from the earthquake disaster of frame structures in 5. 12 Wenchuan earthquakes [J]. World Earthquake Engineering, 2009, 25(4): 131-135.

[2] Xiao Jianzhuang, Du Rui, Wang Changqing, et al. Anti-seismic performance and design investigation on recycled concrete frame during post-earthquake reconstruction [J]. Journal of Sichuan University(Engineering Science Edition), 2009, 41(S1): 1-6.

[3] Sun Jingjiang, Ma Qiang, Shi Hongbin, etc. Building damage in cities and towns located in higher intensity areas during Wenchuan earthquake [J]. Journal Earthquake of Engineering and Engineering Vibration, 2008, 28(3): 8-15.

[4] Guo Meng, Yao Qianfeng. Aseismic design method of building structure with frame-multi-ribbed composite walls at bottom layer [J]. Engineering Journal of Wuhan University, 2010, 43(2): 213-217.

[5] Fu Xiudai, Ma Feng, Yang Yongzhe. Experimental study of lattice composing shear walls on anti-seismic performance [J]. Journal of Tianjin University, 2000, 33(3): 336-340.
