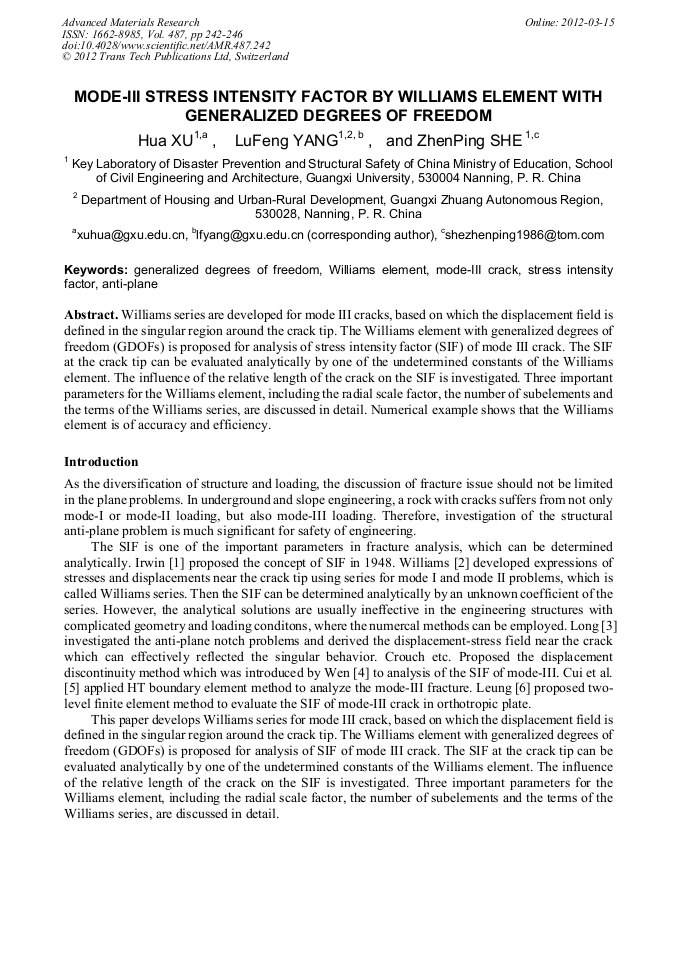

Mode-III Stress Intensity Factor by Williams Element with Generalized Degrees of Freedom

Abstract:

Williams series are developed for mode III cracks, based on which the displacement field is defined in the singular region around the crack tip. The Williams element with generalized degrees of freedom (GDOFs) is proposed for analysis of stress intensity factor (SIF) of mode III crack. The SIF at the crack tip can be evaluated analytically by one of the undetermined constants of the Williams element. The influence of the relative length of the crack on the SIF is investigated. Three important parameters for the Williams element, including the radial scale factor, the number of subelements and the terms of the Williams series, are discussed in detail. Numerical example shows that the Williams element is of accuracy and efficiency.

You might also be interested in these eBooks

Emerging Materials and Mechanics Applications

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 487)

Pages:

242-246

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.487.242

Citation:

Cite this paper

Online since:

March 2012

Authors:

Hua Xu, Lu Feng Yang, Zhen Ping She

Keywords:

Anti-Plane, Generalized Degrees of Freedom, Mode-III Crack, Stress Intensity Factor (SIF), Williams Element

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] G. R. Irwin, Fracture dynamics, Fracturing of Metals, ASM publ. (1948) 147-166.

Google Scholar

[2] M.L. Williams, On the stress distribution at the base of a stationary crack, Journal of Applied Mechanics, ASME. 24 (1957) 109-114.

Google Scholar

[3] J. Qian, Y. Q, Long, Sub region mixed FEM for calculating stress intensity factor of anti-plane notch in Bi-material, Computational Structural Mechanics and Applications. 8(3) (1991) 325-330. (In Chinese).

DOI: 10.1016/0013-7944(92)90029-e

Google Scholar

[4] P.H. Wen, The determination of the stress intensity factors by the displacement discontinuity method, Shanghai Journal of Mechanics. 13(2) (1992) 33-40. (In Chinese).

Google Scholar

[5] Y.H. Cui, J. Wang, Dhanasekar M and Qin Q H. Mode III fracture analysis by Trefftz boundary element method, ACTA Mechanics Sinica. 23(2) (2007) 173-181.

DOI: 10.1007/s10409-007-0056-7

Google Scholar

[6] A.Y.T. Leung, K.L. Tsang, Mode III two-Dimensional crack problem by two-level finite element method, International Journal of Fracture. 102(3) (2000) 245-258.

Google Scholar

[7] China Aviation Institute, The Stress Intensity Factor Handbook, Updated Version. Science Press, Bei Jing, 1993. (In Chinese).

Google Scholar
