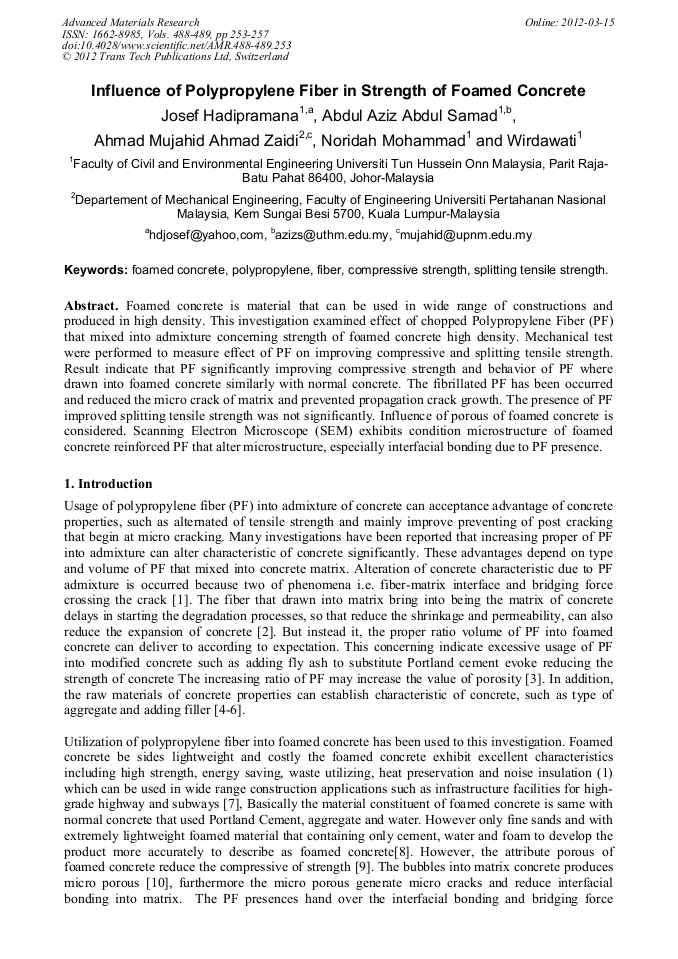

Influence of Polypropylene Fiber in Strength of Foamed Concrete

Abstract:

Foamed concrete is material that can be used in wide range of constructions and produced in high density. This investigation examined effect of chopped Polypropylene Fiber (PF) that mixed into admixture concerning strength of foamed concrete high density. Mechanical test were performed to measure effect of PF on improving compressive and splitting tensile strength. Result indicate that PF significantly improving compressive strength and behavior of PF where drawn into foamed concrete similarly with normal concrete. The fibrillated PF has been occurred and reduced the micro crack of matrix and prevented propagation crack growth. The presence of PF improved splitting tensile strength was not significantly. Influence of porous of foamed concrete is considered. Scanning Electron Microscope (SEM) exhibits condition microstructure of foamed concrete reinforced PF that alter microstructure, especially interfacial bonding due to PF presence.

• Periodical: Advanced Materials Research (Volumes 488-489)
• Pages: 253-257
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.488-489.253
• Online since: March 2012
• Authors: Josef Hadipramana, Abdul Aziz Abdul Samad, Zi Jun Zhao, Noridah Mohammad, W. Wirdawati
• Keywords: Compressive Strength, Fiber, Foamed Concrete, Polypropylene (PP), Splitting Tensile Strength

References

[1] Furlan Jr, S. and J. o.B. de Hanai, Shear behaviour of fiber reinforced concrete beams. Cement and Concrete Composites, 1997. 19(4): pp.359-366.

DOI: 10.1016/s0958-9465(97)00031-0

[2] Kakooei, S., et al., The effects of polypropylene fibers on the properties of reinforced concrete structures. Construction and Building Materials, 2011. 27(1): pp.73-77.

DOI: 10.1016/j.conbuildmat.2011.08.015

[3] Karahan, O. and C.D. AtiÅŸ, The durability properties of polypropylene fiber reinforced fly ash concrete. Materials & Design, 2010. 32(2): pp.1044-1049.

DOI: 10.1016/j.matdes.2010.07.011

[4] Alhozaimy, A.M., P. Soroushian, and F. Mirza, Mechanical properties of polypropylene fiber reinforced concrete and the effects of pozzolanic materials. Cement and Concrete Composites, 1996. 18(2): pp.85-92.

DOI: 10.1016/0958-9465(95)00003-8

[5] Pliya, P., A.L. Beaucour, and A. Noumowé, Contribution of cocktail of polypropylene and steel fibres in improving the behaviour of high strength concrete subjected to high temperature. Construction and Building Materials, 2010. 25(4): p.1926-(1934).

DOI: 10.1016/j.conbuildmat.2010.11.064

[6] Houssam A, T., Properties of polypropylene fiber reinforced silica fume expansive-cement concrete. Construction and Building Materials, 1999. 13(4): pp.171-177.

DOI: 10.1016/s0950-0618(99)00027-6

[7] Jones, M.R. and A. McCarthy. Behviour and assesment of Foamed Concrete for Concrtuction Applications. in Use of Foam Concrete in Construction. 2005. International Concference of University of Dundee, Scotland, UK.: Thomas Telford.

[8] Aldridge, D. Introduction To Foamed Concrete : What, Why, How? in Used of Foamed Concrete in Construction. 2005. International Confrence of University of Dundee, Scotland UK: Thomas Telford.

[9] Kearsley, E.P. and P.J. Wainwright, The effect of porosity on the strength of foamed concrete. Cement and Concrete Research, 2002. 32(2): pp.233-239.

DOI: 10.1016/s0008-8846(01)00665-2

[10] Just, A. and B. Middendorf, Microstructure of high-strength foam concrete. Materials Characterization, 2009. 60(7): pp.741-748.

DOI: 10.1016/j.matchar.2008.12.011

[11] BSEN-197-1, Cement —Part 1: Composition, specifications and conformity criteria for common cements. (2000).

[12] BSEN-882, Specification for aggregates from natural sources for concrete. (1992).

[13] Jones, M.R. and A. McCarthy, Heat of hydration in foamed concrete: Effect of mix constituents and plastic density. Cement and Concrete Research, 2006. 36(6): pp.1032-1041.

DOI: 10.1016/j.cemconres.2006.01.011

[14] Jones, M.R. and A. McCarthy, Utilising unprocessed low-lime coal fly ash in foamed concrete. Fuel, 2005. 84(11): pp.1398-1409.

DOI: 10.1016/j.fuel.2004.09.030

[15] BS1881, BSI, Part 116-Method for determination of compressive strength. (1983).

[16] BS-EN-12390-6: 2009, Testing Hardened Concrete Part 6: Tensile Splitting Strength of Test Specimens. (2009).

DOI: 10.3403/02128962

[17] Nambiar, E.K.K. and K. Ramamurthy, Models relating mixture composition to the density and strength of foam concrete using response surface methodology. Cement and Concrete Composites, 2006. 28(9): pp.752-760.

DOI: 10.1016/j.cemconcomp.2006.06.001

[18] Bentur, A., S. Mindess, and G. Vondran, Bonding in polypropylene fibre reinforced concretes. International Journal of Cement Composites and Lightweight Concrete, 1989. 11(3): pp.153-158.

DOI: 10.1016/0262-5075(89)90087-0

[19] Nambiar, E.K.K. and K. Ramamurthy, Air-void characterisation of foam concrete. Cement and Concrete Research, 2007. 37(2): pp.221-230.

DOI: 10.1016/j.cemconres.2006.10.009

[20] Behnood, A. and M. Ghandehari, Comparison of compressive and splitting tensile strength of high-strength concrete with and without polypropylene fibers heated to high temperatures. Fire Safety Journal, 2009. 44(8): pp.1015-1022.

DOI: 10.1016/j.firesaf.2009.07.001

[21] Narayanan, N. and K. Ramamurthy, Structure and Properties of Aerated Concrete: A Review. Cement and Concrete Composites, 2000. 22: pp.321-329.

DOI: 10.1016/s0958-9465(00)00016-0

[22] Sun, Z. and Q. Xu, Microscopic, physical and mechanical analysis of polypropylene fiber reinforced concrete. Materials Science and Engineering: A, 2009. 527(1-2): pp.198-204.

DOI: 10.1016/j.msea.2009.07.056
