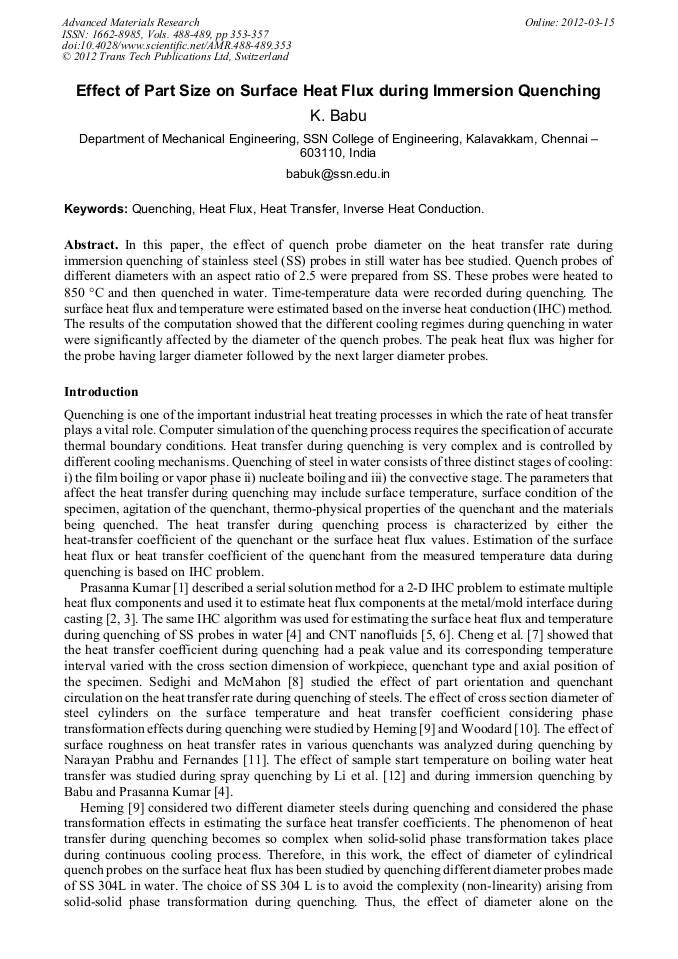

Effect of Part Size on Surface Heat Flux during Immersion Quenching

Abstract:

In this paper, the effect of quench probe diameter on the heat transfer rate during immersion quenching of stainless steel (SS) probes in still water has bee studied. Quench probes of different diameters with an aspect ratio of 2.5 were prepared from SS. These probes were heated to 850 °C and then quenched in water. Time-temperature data were recorded during quenching. The surface heat flux and temperature were estimated based on the inverse heat conduction (IHC) method. The results of the computation showed that the different cooling regimes during quenching in water were significantly affected by the diameter of the quench probes. The peak heat flux was higher for the probe having larger diameter followed by the next larger diameter probes.

• Periodical: Advanced Materials Research (Volumes 488-489)
• Pages: 353-357
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.488-489.353
• Online since: March 2012
• Authors: K. Babu
• Keywords: Heat Flux, Heat Transfer, Inverse Heat Conduction , Quenching

References

[1] T.S. Prasanna Kumar, A serial solution for the 2-D inverse heat conduction problem for estimating multiple heat flux components, Numer. Heat Transfer, Part B. 45 (2004) 541-563.

DOI: 10.1080/10407790490277940

[2] T.S. Prasanna Kumar, H.C. Kamath, Estimation of multiple heat flux components at the metal/mold interface in bar and plate aluminium alloy castings, Metall. Mater. Trans. B, 35 (2004) 575-585.

DOI: 10.1007/s11663-004-0056-y

[3] S. Arunkumar, K.V. Sreenivas Rao, T.S. Prasanna Kumar, Spatial variation of heat flux at the metal–mold interface due to mold filling effects in gravity die-casting, Int. J. Heat Mass Transfer, 51 (2008) 2676-2685.

DOI: 10.1016/j.ijheatmasstransfer.2007.10.020

[4] K. Babu, T.S. Prasanna Kumar, Mathematical modeling of surface heat flux during quenching, Metall. Mater. Trans. B, 41 2010) 214-224.

DOI: 10.1007/s11663-009-9319-y

[5] K. Babu, T.S. Prasanna Kumar, Estimation and analysis of surface heat flux during quenching in CNT nanofluids, J. Heat Transfer, 133 (2011) 071501.

DOI: 10.1115/1.4003572

[6] K. Babu, T.S. Prasanna Kumar, Effect of CNT concentration and agitation on surface heat flux during quenching in CNT nanofluids, Int. J. Heat Mass Transfer, 54 (2011) 106-117.

DOI: 10.1016/j.ijheatmasstransfer.2010.10.003

[7] M. Cheng, J. Cheng, S.Q. Yuan, F. Zhao, Studies on the heat transfer behaviour of the interface between workpiece and media in the quenching process, Acta Metall. Sinica, 10 (1997) 479-484.

[8] M. Sedighi, C.A. McMahon, The influence of quenchant agitation on the heat transfer coefficient and residual stress development in the quenching of steels, J. Engg. Manuf., 214 (2000) 555-567.

DOI: 10.1243/0954405001518251

[9] Cheng Heming, Huang Xieqing, Xie Jianbin, Comparison of surface heat-transfer coefficients between various diameter cylinders during rapid cooling. J. Mater. Process. Technol. 138 (2003) 399-402.

DOI: 10.1016/s0924-0136(03)00106-7

[10] P.R. Woodard, S. Chanrasekar, H.T.Y. Yang, Analysis of temperature and microstructure in the quenching of steel cylinders, Metall. Mater. Trans. B, 30 (1999) 815-822.

[11] K. Narayan Prabu, Peter Fernandes, Effect of surface roughness on metal/quenchant interfacial heat transfer and evolution of microstructure, Mater. Des, 28 (2007) 544-550.

DOI: 10.1016/j.matdes.2005.08.005

[12] D. Li, M.A. Wells, S.L. Cockcroft, E. Caron, Effect of sample start temperature during transient boiling heat water heat transfer, Metall. Mater. Trans. B, 38 (2007) 901-910.

DOI: 10.1007/s11663-007-9091-9
