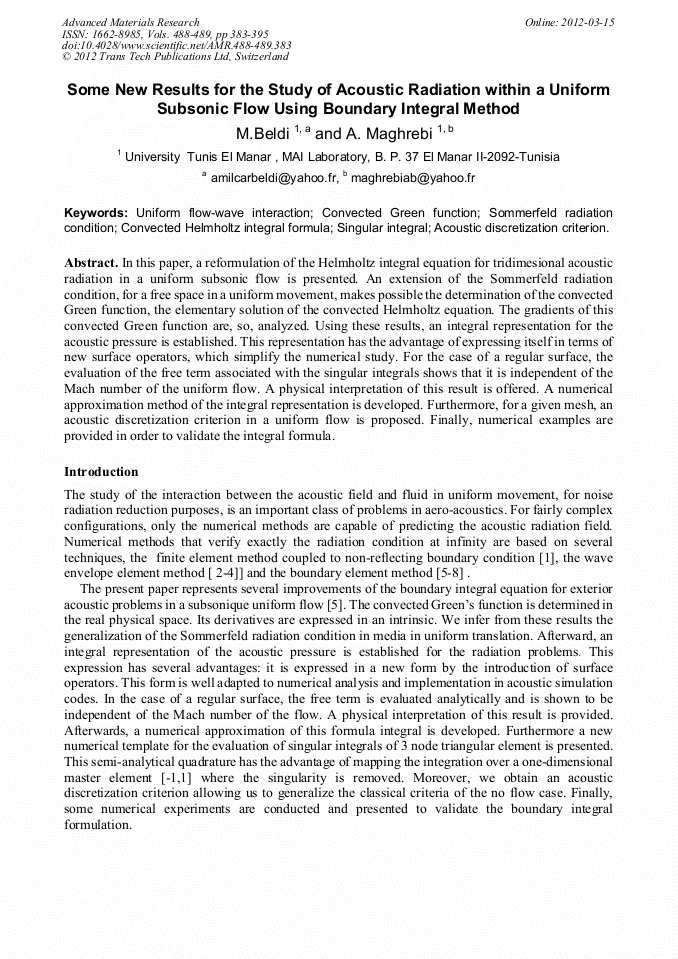

Some New Results for the Study of Acoustic Radiation within a Uniform Subsonic Flow Using Boundary Integral Method

Abstract:

In this paper, a reformulation of the Helmholtz integral equation for tridimesional acoustic radiation in a uniform subsonic flow is presented. An extension of the Sommerfeld radiation condition, for a free space in a uniform movement, makes possible the determination of the convected Green function, the elementary solution of the convected Helmholtz equation. The gradients of this convected Green function are, so, analyzed. Using these results, an integral representation for the acoustic pressure is established. This representation has the advantage of expressing itself in terms of new surface operators, which simplify the numerical study. For the case of a regular surface, the evaluation of the free term associated with the singular integrals shows that it is independent of the Mach number of the uniform flow. A physical interpretation of this result is offered. A numerical approximation method of the integral representation is developed. Furthermore, for a given mesh, an acoustic discretization criterion in a uniform flow is proposed. Finally, numerical examples are provided in order to validate the integral formula.

• Periodical: Advanced Materials Research (Volumes 488-489)
• Pages: 383-395
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.488-489.383
• Online since: March 2012
• Authors: M. Beldi, A. Maghrebi
• Keywords: Acoustic Discretization Criterion, Convected Green Function, Convected Helmholtz Integral Formula, Singular Integral, Sommerfeld Radiation Condition, Uniform Flow-Wave Interaction

References

[1] F. Magoules, I. Harari (Editors), Special issue on absorbing boundary conditions, Comput. Method Appl. Mech. Engrg. 195 (2006) 3354-3902

[2] R. J. Astley, A finite element, wave envelope formulation for acoustical radiation in moving flows, Journal of Sound and Vibration, 103 (1985) 471-485.

DOI: 10.1016/s0022-460x(85)80016-x

[3] W. Eversman, Mapped infinite wave envelope elements for acoustic radiation in a uniformly moving medium, Journal of Sound and Vibration, 224 (1999) 665-687.

DOI: 10.1006/jsvi.1999.2235

[4] T. Mertens, P. Gamallo, R.J. Astley, Ph Bouillard, A mapped finite and infinite partition of unity method for convected acoustic radiation in axisymmetric domains, Comput. Method Appl. Mech. Engrg. 197 (2008) 4273-4283.

DOI: 10.1016/j.cma.2008.05.006

[5] T. W. Wu and L. Lee, A direct boundary integral formulation for acoustic radiation in a subsonic uniform flow, Journal of Sound and Vibration 175 (1994) 51-63.

DOI: 10.1006/jsvi.1994.1310

[6] Pantazopoulou P., Rice H. and Carley M., Boundary integral methods for scattering in non-unoform flows, 11th AIAA/CEAS Aeroacoustics Conference, 23-25May 2005, Monterey,Clifornia,V.4 2315-2327

DOI: 10.2514/6.2005-2985

[7] Anurag Agarwal and Philip J. Morris, Prediction Method for Broadband Noise from Unsteady Flow in a Slat Cove, AIAA Journal 44 (2006) 301-310

DOI: 10.2514/1.12991

[8] Morino L., Boundary integral equations in aerodynamics, Applied Mechanics Reviews 46 (1993) 445-466

DOI: 10.1115/1.3120373

[9] A. D. Pierce, Acoustics: an Introduction to its Physical Principles and Applications, Woodbuey, New York , The Acoustical Society of America 1989.

[10] A. Sommerfeld, Partial Differential Equations in Physics, Academic Press Inc., Publishers New York, N.Y. 1949.

[11] A.F. Seybert, B. Soenarko, F.J. Rizzo and D.J. Shippy, An advanced computational method for radiation and scattering of acoustic waves in three dimensions , J. Acoust. Soc. Am.77 (1985)362-368 .

DOI: 10.1121/1.391908

[12] A. Maghrebi, Galerkin BEM for acoustic radiation in a subsonique uniform flow, Ph.D thesis, Engineering National School of Tunis (publication to appear ).

[13] M. Guiggiani and A. Gigante, A General Algorithm for Multidimensional Cauchy Principal Value Integrals in the boundary Element Method, Journal of Applied Mechanics, Vol.57 (1990), 906-915.

DOI: 10.1115/1.2897660

[14] I. Babuska, F.Ihlenburg, E. T. Paik, and S. A. Sauter, A Generalized Finite Element Method for Solving the Helmholtz equation in two dimensions with minimal pollution, Comput. Methods Appl. Mech. Engrg., 128 (1995), 325-359.

DOI: 10.21236/ada290280

[15] K. Gerdes and F. Ihlenburg, On the pollution effect in FE solutions of the 3D- Helmholtz equation, Comput. Methods Appl. Mech. Engrg., 170 (1999), 155-172.

DOI: 10.1016/s0045-7825(98)00239-4

[16] H. Glardi and X. Bohineust, Boundary element calculation of external field around simple structures applied to vehicle analysis, ISMA19-Tools for Noise and Vibration Analysis.

[17] A. J. Burton, The solution of Helmholtz' equation in exterior domains using integral equations, National Physical Laboratory, Report. NAC 30 ,Teddington, Middlesex, U. K. (1973).

[18] D. G. Crighton, Scattering and diffraction of sound by moving bodies, J. Fluid Mech. Vol.72 part 2 (1975), 209-227.

DOI: 10.1017/s0022112075003308
