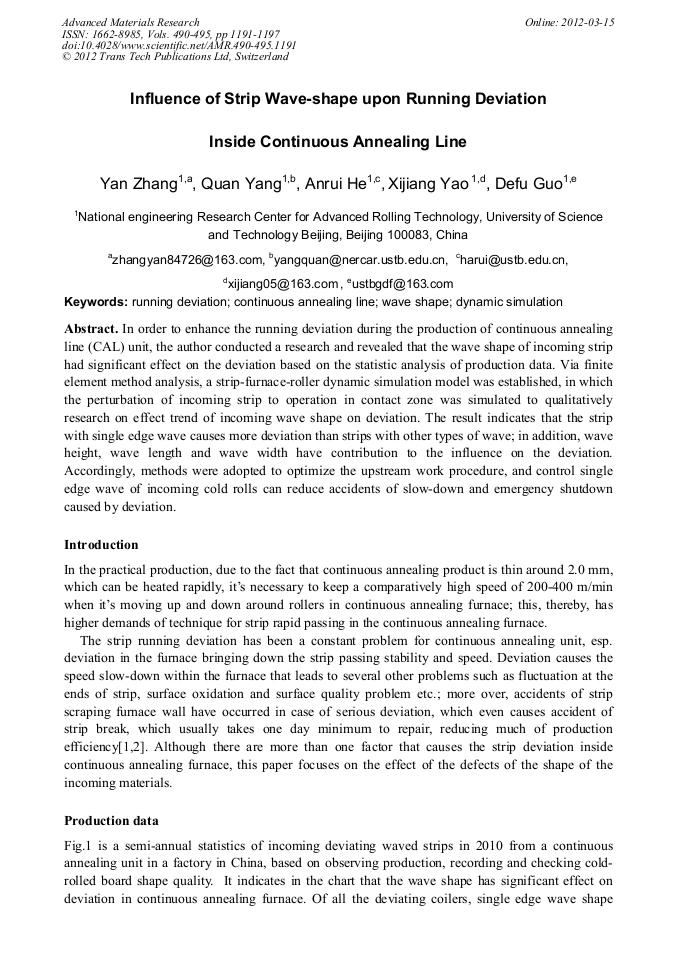

Influence of Strip Wave-Shape upon Running Deviation inside Continuous Annealing Line

Abstract:

In order to enhance the running deviation during the production of continuous annealing line (CAL) unit, the author conducted a research and revealed that the wave shape of incoming strip had significant effect on the deviation based on the statistic analysis of production data. Via finite element method analysis, a strip-furnace-roller dynamic simulation model was established, in which the perturbation of incoming strip to operation in contact zone was simulated to qualitatively research on effect trend of incoming wave shape on deviation. The result indicates that the strip with single edge wave causes more deviation than strips with other types of wave; in addition, wave height, wave length and wave width have contribution to the influence on the deviation. Accordingly, methods were adopted to optimize the upstream work procedure, and control single edge wave of incoming cold rolls can reduce accidents of slow-down and emergency shutdown caused by deviation.

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 1191-1197
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.1191
• Online since: March 2012
• Authors: Yan Zhang, Quan Yang, An Rui He, Xi Jiang Yao, De Fu Guo
• Keywords: Continuous Annealing Line, Dynamic Simulation, Running Deviation, Wave Shape

References

[1] Dai Jiang-bo. Study on the Strip Buckling in Continuous Annealing Production Line/[D]. Beijing: University of Science and Technology Beijing, 2005: 1, in Chinese.

[2] Kuang Qun-yi, Xu Qi-fa, Xu Hua-wen. Analysis of Strip Off-tracking for ACL and Improvement Measures [J]. Hydraulics Pneumatics&Seals, 2010, (7): 12-15, in Chinese.

[3] Yang Jing. Research on the Deformation Mechanism and the Influence Factors of the Strip Buckling in the Continuous Annealing Furnace/[D]. Beijing: University of Science and Technology Beijing, 2010: 12, in Chinese.

[4] Zhang Qing-dong, Chang Tie-zhu, Dai Jiang-bo, et al. Finite Element Simulation of the Transverse Distribution of Tensile Stress in the Strip during Continuous Annealing Process [J]. J University of Science and Technology Beijing, 2006, 28(12): 1162-1166, in Chinese.

[5] Sun Zhong-jian, Li Sheng-di, Lin Da-wei. The Distribution of Strip Tension in the Furnace of CAPL [J]. East China In st Metall, 1994, 11(2): 130, in Chinese.

[6] Xu Yong-gui, Chen Shou-qun, Sun Zhong-jian. Study and Discussion of the Mechanism for the Hot Waved Surface of Strip in the CAPL Furnace [J]. East China In st Metall, 1994, 11 (2) : 1, in Chinese.

[7] Rahai A R, A linia M M, Kazemi S. Buckling Analysis of Stepped Plates Using Modified Buckling Mode Shape [J]. Thin Walled Struct, 2008, 46 (5): 484.

DOI: 10.1016/j.tws.2007.10.012

[8] Jacques N, Elias A, Potier-Ferry M, et al. Buckling and Wrinkling during Strip Convey in Processing Lines [J]. J Mater Process Technology, 2007, 190 (1-3) : 33.

DOI: 10.1016/j.jmatprotec.2007.03.117

[9] Kim S E, Thai H T, Lee JH. Buckling Analysis of Plates Using the Two Variable Refined Plate Theory [J]. Thin Walled Struct, 2009, 47(4): 455.

DOI: 10.1016/j.tws.2008.08.002
