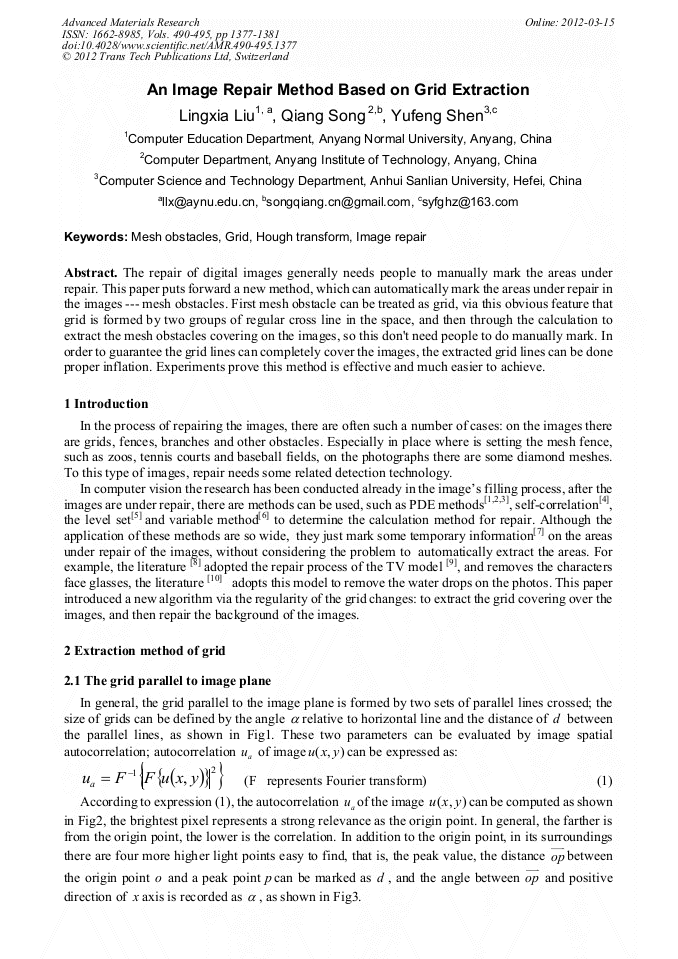

An Image Repair Method Based on Grid Extraction

Abstract:

The repair of digital images generally needs people to manually mark the areas under repair. This paper puts forward a new method, which can automatically mark the areas under repair in the images --- mesh obstacles. First mesh obstacle can be treated as grid, via this obvious feature that grid is formed by two groups of regular cross line in the space, and then through the calculation to extract the mesh obstacles covering on the images, so this don't need people to do manually mark. In order to guarantee the grid lines can completely cover the images, the extracted grid lines can be done proper inflation. Experiments prove this method is effective and much easier to achieve.

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 1377-1381
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.1377
• Online since: March 2012
• Authors: Ling Xia Liu, Qiang Song, Yu Feng Shen
• Keywords: Grid, Hough Transform (HT), Image Repair, Mesh Obstacles

References

[1] T. Chan, J. Shen. Non-texture inpainting by curvature driven diffuseions (CDD)[J]. Visual Comm, Image Rep. 2001 (4): 436-449.

[2] M. Bertalmio, G. Sapiro, V. Caselles, et al. Image inpainting [J], in Proc. of SIGGRAPH2000, 2000 , p.417–424.

[3] Chan T, Shen F. Mathematical Models for Local Non-texture Inpaintings [J]. SIAM Journal on Applied Mathematics, 2002, 62: 1019-1043.

DOI: 10.1137/s0036139900368844

[4] T. Amano, A. Yamaguchi, S. Inokuchi, Image interpolation using bplp method on the eigenspace[J]. The IEICE Transactions on Information and Systems, 2002, J85-D-II(3): 457–465.

[5] S. Masnou, J. -M. Morel. Level lines based dis-occlusion[A], in Proc. of ICIP'98, 1998,. 3: 259–263.

[6] C. Ballester, V. Caselles, J. Verdera, et al. A variational model for filling-in gray level and color images [A], in Proc. of ICCV2001, 2001, 1: 10–16.

DOI: 10.1109/iccv.2001.937493

[7] M. Haindl,J. Filip. Fast restoration of colour movie scratches [A], in Proc. of ICPR2002, 2002, 3: 269-272.

[8] C. Wu, C. Liu, H. Y. SHum, et al. Automatic eyeglasses removal from face images[A], in Proc. of ACCV2002, 2002, p.193–198.

[9] C. W. Lee, K. Jung, H. J. Kim. Automatic text detection and removal in video sequences [J], Pattern Recognition Letters, 2003, 24(15): 2607–262.

DOI: 10.1016/s0167-8655(03)00105-3

[10] M. Kuramoto, A. Yamashita, T. Kaneko, et al. Removal of waterdrops in images by using multiple cameras [S], in Proc. of MVA2002, (2002).

[11] A. Almansa,A. Desolneux,S. Vamech. Vanishing point detection without any a priori information [J]. IEEE Trans. on PAMI, 2003, 25(4): 502-507.

DOI: 10.1109/tpami.2003.1190575

[12] Bertalmio M, et al. Image Inpainting [A], SIGGRAPH. 2000, 1: 417-424.
