Microstructure Formation Mechanism of AZ31 Magnesium Alloy Processed by Rheo-Forming

Ren Guo Guan; Zhan Yong Zhao; Chao Lian; Run Ze Chao; Chun Ming Liu

doi:10.4028/www.scientific.net/AMR.490-495.3319

Paper Titles

Photochromic, Kinetics, and Fluorescence of a Novel Diarylethene
p.3301

Microstructure and Properties of TiO₂ Thin Films Doped with Ni
p.3306

Low Temperature Synthesis of Nano-Carbon Materials Using a Water-Soluble Catalyst Support by Chemical Vapor Deposition
p.3311

Low Temperature Synthesis of Onion-Like Fullerenes Using Aluminum Hydroxide Supported Iron Catalyst
p.3315

Microstructure Formation Mechanism of AZ31 Magnesium Alloy Processed by Rheo-Forming
p.3319

Material Constants of TC18 Titanium Alloy Deformated in α+β Region
p.3323

New Technics of Restoring High-Strength Steel Parts on Airplane by Brush Plating a Composite Coating of Diamond
p.3327

Finite Element Analysis of the φ320mm Hydraulic Support Column
p.3331

Modeling of the Mixing of Composite Solid Propellant Slurry in a Kneading Mixer
p.3334

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 490-495Microstructure Formation Mechanism of AZ31...

Microstructure Formation Mechanism of AZ31 Magnesium Alloy Processed by Rheo-Forming

Abstract:

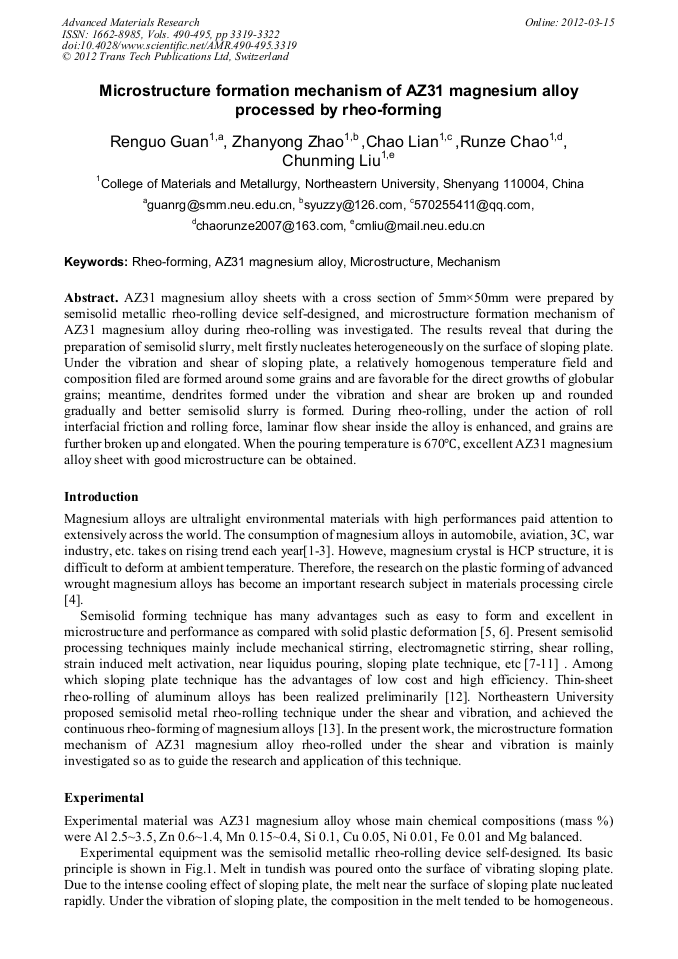

AZ31 magnesium alloy sheets with a cross section of 5mm×50mm were prepared by semisolid metallic rheo-rolling device self-designed, and microstructure formation mechanism of AZ31 magnesium alloy during rheo-rolling was investigated. The results reveal that during the preparation of semisolid slurry, melt firstly nucleates heterogeneously on the surface of sloping plate. Under the vibration and shear of sloping plate, a relatively homogenous temperature field and composition filed are formed around some grains and are favorable for the direct growths of globular grains; meantime, dendrites formed under the vibration and shear are broken up and rounded gradually and better semisolid slurry is formed. During rheo-rolling, under the action of roll interfacial friction and rolling force, laminar flow shear inside the alloy is enhanced, and grains are further broken up and elongated. When the pouring temperature is 670°C, excellent AZ31 magnesium alloy sheet with good microstructure can be obtained.

You might also be interested in these eBooks

Mechatronics and Intelligent Materials II

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 490-495)

Pages:

3319-3322

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.490-495.3319

Citation:

Cite this paper

Online since:

March 2012

Authors:

Ren Guo Guan, Zhan Yong Zhao, Chao Lian, Run Ze Chao, Chun Ming Liu

Keywords:

AZ31 Magnesium Alloy, Mechanism, Microstructure, Rheo-Forming

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] K. Yu, W.X. Li, R.C. Wang, Z.Q. Ma: The Chinese Journal of Nonferrous Metals Vol. 13 (2003), p.277 ( in Chinese).

Google Scholar

[2] C.J. Bettles, M.A. Gibson: Journal of Metals Vol. 57 (2005), p.464.

Google Scholar

[3] H. Friedrich, S. Schumann: Journal of Materials Processing Technology Vol. 117 (2001), p.276.

Google Scholar

[4] D. Apelian, Q.Y. Pan, M. Findon: Die Casting Engineer Vol. 48 (2004), p.22.

Google Scholar

[5] M.C. Flemings: Metallurgical Transactions A Vol. 22 (1991), p.957.

Google Scholar

[6] R.A. Martinez, M.C. Flemings: Metallurgical and Materials Transactions A Vol. 36 (2005), p.2205.

Google Scholar

[7] S. Ji, Z. Fan, M.J. Bevis: Materials Science and Engineering Vol. 299 (2001), p.210.

Google Scholar

[8] S.P. Midson: Die Casting Engineer Vol. 50 (2006), p.48.

Google Scholar

[9] Z. Liu, W.M. Mao, X.M. Liu: Transactions of Nonferrous Metals Society of China Vol. 20 (2010), p.805.

Google Scholar

[10] T. Haga, K. Tkahshi, M. Ikawaand, H. Watari: Journal of Materials Processing Technology, Vol. 42 (2004), p.153.

Google Scholar

[11] P. Wang, J. Liu, J. Z Cui: Materials Science and Technology Vol. 17 (2009), p.43.

Google Scholar

[12] T. Haga, P. Kapranos: Journal of Materials Processing Technology Vol. 130/131 (2002), p.594.

Google Scholar

[13] R.G. Guan, Z.H. Xing, L. Shi, C. Wang, Y. Wang: Materials Science Forum Vol. 561-565 (2007), p.865.

Google Scholar

[14] R.G. Guan, F.R. Cao, J.W. Li, C. Wang: Journal of Materials Processing Technology Vol. 209 (2009), p.2592.

Google Scholar

[15] R.B. Song, Y.L. Kang, J.G. Li, J.W. Wang, A.M. Zhao: Acta Metallurgica Sinica Vol. 39 (2003), p.310 ( in Chinese).

Google Scholar
