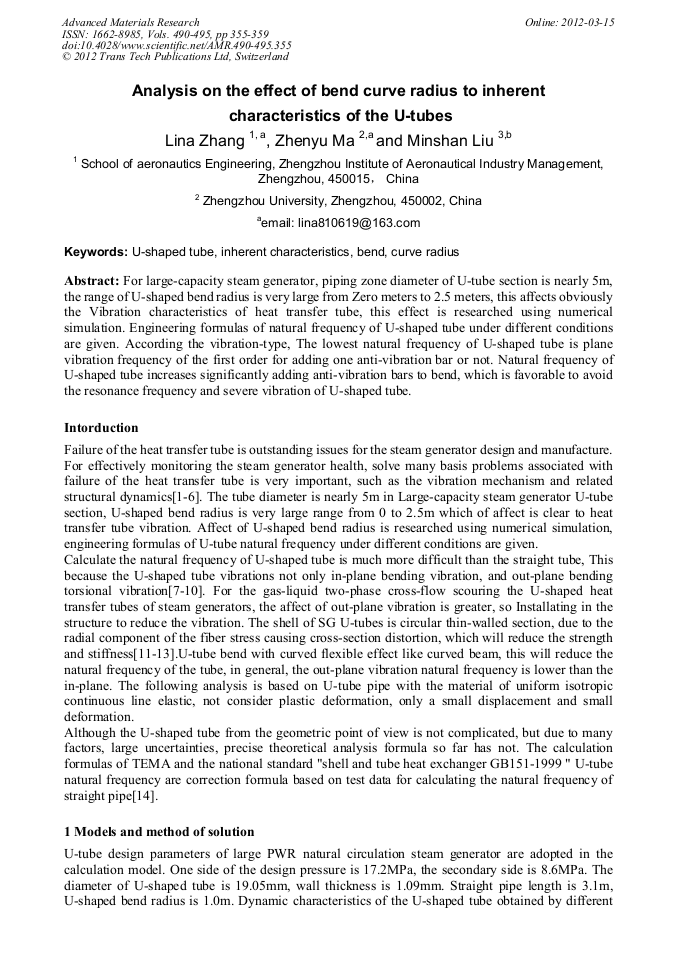

Analysis on the Effect of Bend Curve Radius to Inherent Characteristics of the U-Tubes

Abstract:

For large-capacity steam generator, piping zone diameter of U-tube section is nearly 5m, the range of U-shaped bend radius is very large from Zero meters to 2.5 meters, this affects obviously the Vibration characteristics of heat transfer tube, this effect is researched using numerical simulation. Engineering formulas of natural frequency of U-shaped tube under different conditions are given. According the vibration-type, The lowest natural frequency of U-shaped tube is plane vibration frequency of the first order for adding one anti-vibration bar or not. Natural frequency of U-shaped tube increases significantly adding anti-vibration bars to bend, which is favorable to avoid the resonance frequency and severe vibration of U-shaped tube

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 355-359
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.355
• Online since: March 2012
• Authors: Li Na Zhang, Zhen Yu Ma, Min Shan Liu
• Keywords: Bend, Curve Radius, Inherent Characteristics, U-Shaped Tube

References

[1] Cheng Lin. The heat exchanger in the fluid induced vibration [M]. Science Press, 1995: 87-92.

[2] Lai Yongxing, Liu Minshan, Dong Qiwu. Characteristic analysisof Static external fluid for heat exchanger tube's dynamic [J]. Pressure vessel, 2004, 121(12): 22-25.

[3] Jong Chull Jo, Myung Jo Jhung, Woong Sik Kim et al. Dynamic characteristics of steam generator U-tubes with defect[J]. Nuclear Engineering and Design. 2005: 235: 821-831.

DOI: 10.1016/j.nucengdes.2004.09.009

[4] Jong Chull Jo, Won Ky Shin. Fluid elastic instability analysis of operating nuclear steam generator U-tubes [J]. Nuclear Engineering and Design. 1999, (193): 55-71.

DOI: 10.1016/s0029-5493(99)00173-9

[5] Fu Mingyu, Xia Guoqing. Analysis of the once-through steam generator in the static and dynamic characteristics [J]. Journal of Harbin Engineering University. 2002, 23(3): 28-32.

[6] Yang Kang, Han Tao. ANSYS applicates in the modal analysis. Journal of Jiamusi University. 2005, 23 (1): 81-84.

[7] Fu Jiyang. Research on 10MW HTR two loop pipeline leak before break [D]. Beijing: Tsinghua University dissertations, (1999).

[8] Dong Jianling, Fu Jiyang, Yin Dejian. Analysis of HTR-10 steam generator tube LBB [C]. Proceedings of the Eleventh National Conference on structural mechanics, chengdu, 2000: 77-80.

[9] National Nuclear Safety Administration Safety Guide. Design and verification of nuclear power plants and nuclear safety regulations HAF0215(1)[S], (1996).

[10] KAMOJB K. Modeling of transient thermal-hydraulic phenomena in a one-through steam generator during auxiliary feed water injection [J]. Nuclear Technology, 1994, 105: 381 -394.

DOI: 10.13182/nt94-a34938

[11] J J Jeong, M Hwang, Y J Lee, et al. Single-and Two-Phase Flow Characteristics in the Primary Side of a U-Tubes Steam Generator. In: The 10th International Topical Meeting on Nuclear Reactor Thermal Hydraulics. Seoul, Korea, (2003).

[12] Yang Chen, Tang Shengli, He Zuwei. Research on U of U-tube steam generator model and its simulation. Journal of system simulation. 1999, 11(3): 167-171.

[13] Qian Songwen, Wu Jiasheng, Ceng Wenming. The heat exchanger fluid induced vibration foundation [M]. Wuhan: Huazhong Institute of technology press, (1998).

[14] The national standards GB151-1999, shell and tube heat exchangers [S]. Beijing: National Bureau of quality and technical supervision, (2000).
