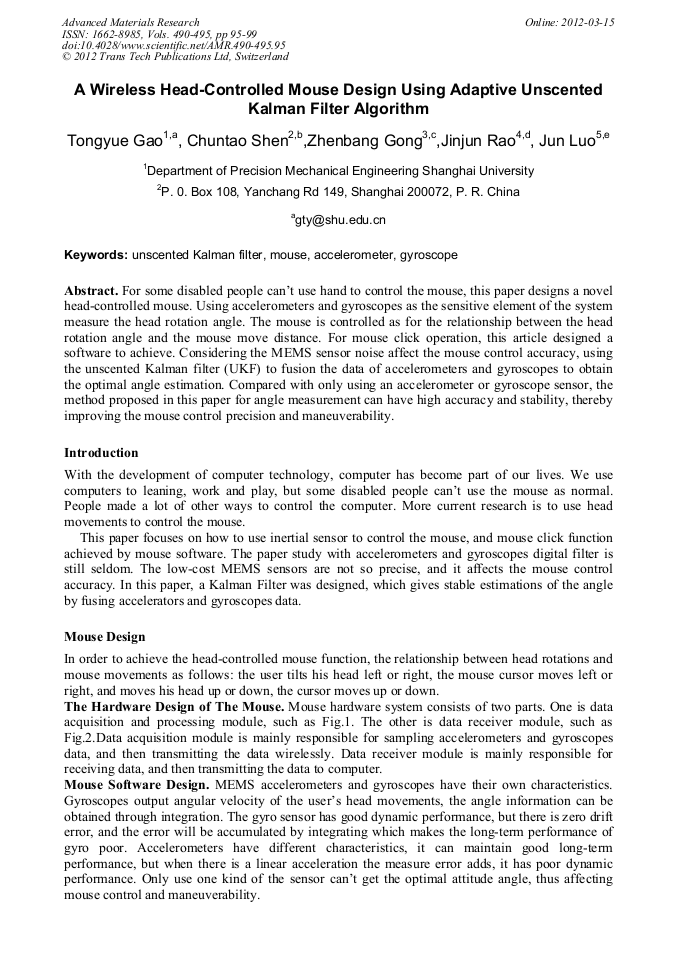

A Wireless Head-Controlled Mouse Design Using Adaptive Unscented Kalman Filter Algorithm

Abstract:

For some disabled people can’t use hand to control the mouse, this paper designs a novel head-controlled mouse. Using accelerometers and gyroscopes as the sensitive element of the system measure the head rotation angle. The mouse is controlled as for the relationship between the head rotation angle and the mouse move distance. For mouse click operation, this article designed a software to achieve. Considering the MEMS sensor noise affect the mouse control accuracy, using the unscented Kalman filter (UKF) to fusion the data of accelerometers and gyroscopes to obtain the optimal angle estimation. Compared with only using an accelerometer or gyroscope sensor, the method proposed in this paper for angle measurement can have high accuracy and stability, thereby improving the mouse control precision and maneuverability.

• Periodical: Advanced Materials Research (Volumes 490-495)
• Pages: 95-99
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.490-495.95
• Online since: March 2012
• Authors: Tong Yue Gao, Chun Tao Shen, Zhen Bang Gong, Jin Jun Rao, Jun Luo
• Keywords: Accelerometer, Gyroscope, Mouse, Unscented Kalman Filter (UKF)

References

[1] Yu-Luen Chen. Application of Tilt Sensors inHuman–Computer Mouse Interface for People With Disabilities[J]. IEEE Transactions On Neural Systems And Rehabilitation Engineering, VOL. 9, NO. 3, (2001).

DOI: 10.1109/7333.948457

[2] Soochan Kim. Minje Park. Sasiporn Anumas. Jaeha Yoo. Head Mouse System Based on Gyro- and Opto-Sensors[J]. IEEE International Conference on Biomedical Engineering and Informatics. (2010).

DOI: 10.1109/bmei.2010.5639399

[3] Ferrol R. Blackmon, Michael Weeks. Target Acquisition by a Hands-free Wireless Tilt Mouse[J]. IEEE International Conference on Systems, Man, and Cybernetics San Antonio, TX, USA - October (2009).

DOI: 10.1109/icsmc.2009.5346346

[4] Tongyue Gao, Zhenbang Gong, Jun Luo, Wei Ding and Wei Feng. An Attitude Determination System For A Small Unmanned Helicopter Using Low-Cost Sensors[J]. IEEE international Conference on Robotics and Biomimetics. December 17 - 20, 2006, Kunming, China.

DOI: 10.1109/robio.2006.340099

[5] S. J. Julier and J. K. Uhlmann. Unscented filtering and nonlinear estimation. Proceedings of the IEEE, (2004).

[6] Dan Simon. Optimal state estimation[M]. John Wiley & Sons, Inc., Hoboken, New Jersey. 2006. 395-457.

[7] Alan H. F. Lam, Wen J. Li, Yunhui Liu, and Ning Xi. MIDS: Micro input Device System Using MEMS Sensors[J]. Proceedings of the 2002 IEEE/RSJ intl. Conference on Intelligent Robots and Systems EPFL, Lausanne, Switzerland. October, (2002).

DOI: 10.1109/irds.2002.1043893
