For Libraries For Publication Open Access Downloads About Us Contact Us
Paper Titles
The Synthesis of Cu0.81Ni0.19 Intermetallics by Mechanical Alloying
p.379
Preparation and Characterisation of CaP-Containing Coating on Magnesium Alloy by Micro-Arc Oxidation and Hydrothermal Treatment
p.383
Graphite Encapsulated Iron Nanoparticles Produced by Ball-Milling and Annealing a Mixture of Expanded Graphite and Iron Powders
p.387
Effect of Agitation on Sorption Behavior of Expanded Graphite for Methyl Orange in Water and Crude Oil Floated on Water
p.391
Anti-Friction Effect of Ball-Milled Expanded Graphite/Fe Powders
p.395
Natural Chlorophyll-Sensitized Nanocrystalline TiO2 as Photoanode of a Hybrid Photoelectrochemical Biofuel Cell
p.399
Rejection of Arsenopyrite in a High As-Containing Pyrite Concentrate by Inorganic Depressants
p.403
Cobalt Ion Extraction from Wastewater by P204 Microemulsion Saponified
p.407
Extraction of L-Theanine Using Chiral Supported Emulsion Liquid Membrane
p.411

Anti-Friction Effect of Ball-Milled Expanded Graphite/Fe Powders

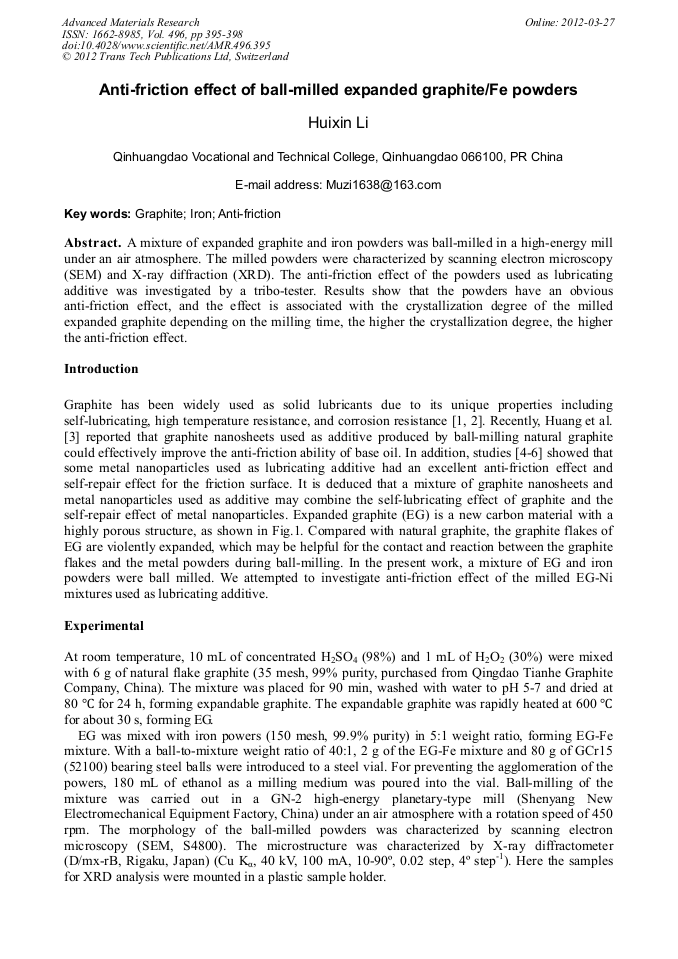

Article Preview

Abstract:

A mixture of expanded graphite and iron powders was ball-milled in a high-energy mill under an air atmosphere. The milled powders were characterized by scanning electron microscopy (SEM) and X-ray diffraction (XRD). The anti-friction effect of the powders used as lubricating additive was investigated by a tribo-tester. Results show that the powders have an obvious anti-friction effect, and the effect is associated with the crystallization degree of the milled expanded graphite depending on the milling time, the higher the crystallization degree, the higher the anti-friction effect

You might also be interested in these eBooks
Functional Materials and Nanotechnology View Preview

Info:

Periodical:

Advanced Materials Research (Volume 496)

Pages:

395-398

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.496.395

Citation:

Cite this paper

Online since:

March 2012

Authors:

Hui Xin Li

Keywords:

Anti-Friction, Graphite, Iron

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2012 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] F. Li, F. Y. Yan, L. G. Yu: Wear Vol. 237 (2000), P. 33.

Google Scholar

[2] L. P. Ning, J.B. Wang: Tribology Vol. 21(2001), P. 335.

Google Scholar

[3] H.D. Huang, J. P. Tu, L.P. Gan, T. Z. Zou, C.Z. Li, X.B. Zhao: Tribology Vol. 25(2005),P. 312.

Google Scholar

[4] H.Z. Wo, K.H. Hu, X.G. Hu: Tribology Vol. 24 (2004), P. 33.

Google Scholar

[5] J.X. Zhang, K. Liu, X.G. Hu: Tribology Vol. 22 (2002), P. 44.

Google Scholar

[6] J. F. Zhou, Z.J. Zhang, X.B. Wang: Tribology Vol. 20 (2000), P. 123.

Google Scholar

[7] M. Inagaki, R. Tashiro, Y. Washino: J. Phys. Chem. Solids Vol. 65 (2004), P. 133.

Google Scholar

[8] L.Q. Wang, X.Q. Yue, F.C. Zhang, R.J. Zhang: J Alloys Compd. Vol. 497 (2010), P. 344.

Google Scholar

© 2025 Trans Tech Publications Ltd. All rights are reserved, including those for text and data mining, AI training, and similar technologies. For open access content, terms of the Creative Commons licensing CC-BY are applied.
Scientific.Net is a registered trademark of Trans Tech Publications Ltd.
