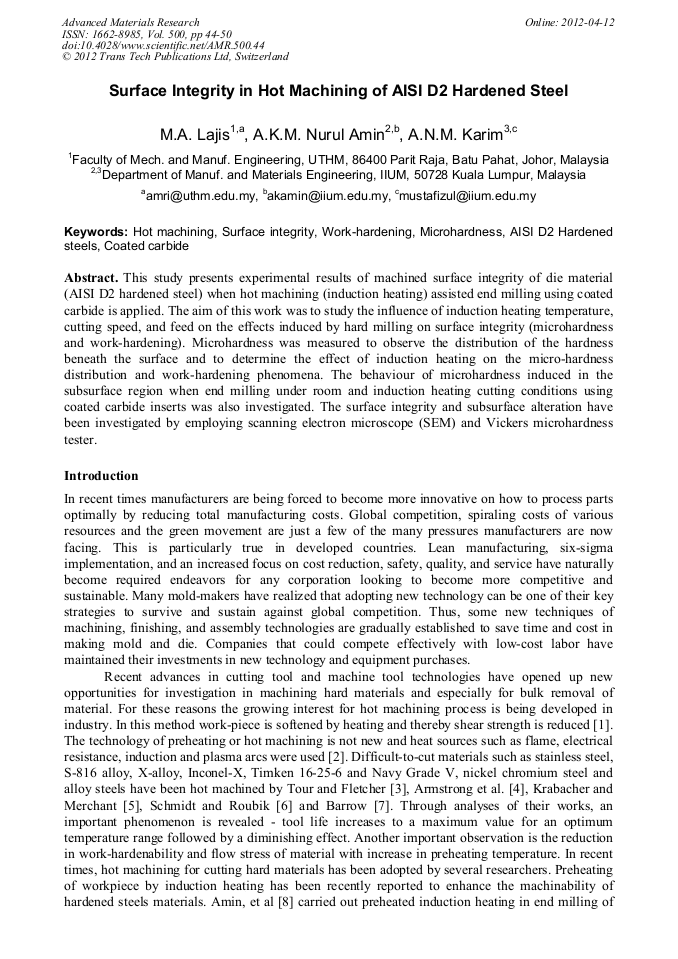

Surface Integrity in Hot Machining of AISI D2 Hardened Steel

Abstract:

This study presents experimental results of machined surface integrity of die material (AISI D2 hardened steel) when hot machining (induction heating) assisted end milling using coated carbide is applied. The aim of this work was to study the influence of induction heating temperature, cutting speed, and feed on the effects induced by hard milling on surface integrity (microhardness and work-hardening). Microhardness was measured to observe the distribution of the hardness beneath the surface and to determine the effect of induction heating on the micro-hardness distribution and work-hardening phenomena. The behaviour of microhardness induced in the subsurface region when end milling under room and induction heating cutting conditions using coated carbide inserts was also investigated. The surface integrity and subsurface alteration have been investigated by employing scanning electron microscope (SEM) and Vickers microhardness tester.

• Periodical: Advanced Materials Research (Volume 500)
• Pages: 44-50
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.500.44
• Online since: April 2012
• Authors: Mohd Amri Lajis, A.K.M. Nurul Amin, A.N. Mustafizul Karim
• Keywords: AISI D2 Hardened Steels, Coated Carbide, Hot Machining, Microhardness, Surface Integrity, Work-Hardening

References

[1] K.P. Maity, P.K. Swain: An Experimental Investigation of Hot-Machining to Predict Tool Life, Journal of Materials Processing Technology (2007).

[2] P. Dumitrescu, P. Koshy, J. Stenekes, M.A. Elbestawi: High-Power Diode Laser Assisted Hard Turning of AISI D2 Tool Steel, Int. Journal of Machine Tools & Manufacture (2006).

DOI: 10.1016/j.ijmachtools.2006.01.005

[3] S. Tour, L.S. Fletcher, Hot Spot Machining, Iron Age, 164, (78).

[4] E.T. Armastrong, A.S. Closer, E.F. Kate: Machining of Heated Metals, ASME, 35 (1951), 73.

[5] E.J. Krabacher, M.E. Merchant: Basic Factors in Hot Machining of Metals, Trans. ASME 73 (1951), 761.

DOI: 10.1115/1.4016424

[6] A.O. Schmidt, H.R. Roubik: Milling Hot Work Piece, Eng. Dig. 10 (1949).

[7] G. Barrow: Machining At High Strength Metals At Elevated Temperature Using Electrical Current Heating, Annals of CIRP 14, 145-151 (1966).

[8] A.K.M.N. Amin, S.B. Dolah, M.B. Mahmud, M.A. Lajis: Effects of Workpiece Preheating on Surface Roughness, Chatter and Tool Performance During End Milling of Hardened Steel D2, Journal of Materials Processing Technology, 201, 466-470 (2008).

DOI: 10.1016/j.jmatprotec.2007.11.304

[9] A.K.M.N. Amin, M.M. Abdelgadir: The Effect of Preheating of Work Material on Chatter During End Milling of Medium Carbon Steel Performed on a Vertical Machining Center (VMC), ASME Journal of Manufacturing Science and Engineering, 674-680 (2003).

DOI: 10.1115/1.1596557

[10] A.K.M. N Amin, I. Abraham, N. Khairussima: Influence of Preheating on The Performance of Circular Carbide Inserts in End Milling of Carbon Steel, Proceedings of The 3rd International Conference on Advanced Manufacturing Technology ICAMT, Kuala Lumpur (2004).

DOI: 10.1016/j.jmatprotec.2006.03.131

[11] M.A. Lajis, A.K.M. Nurul Amin, A.N. Mustafizul Karim, AM.K. Hafiz: Preheating in End Milling of AISI D2 Hardened Steel with Coated Carbide Inserts, Advanced Materials Research, Vol. 83-86 (2010) p. pp.56-66.

DOI: 10.4028/www.scientific.net/amr.83-86.56

[12] M.A. Lajis, A.K.M. Nurul Amin, A.N. Mustafizul Karim, Turnad L. Ginta: Performance Evaluation of PCBN in End Milling of AISI D2 Hardened Steel Under Room and Preheated Machining Conditions, Advanced Materials Research, Vol. 264-265 (2011).

DOI: 10.4028/www.scientific.net/amr.264-265.901

[13] D. Ulutan and T. Ozel: Machining Induced Surface Integrity in Titanium and Nickel Alloys: A Review, Int. Journal of Machine Tools & Manufacture, 51 (2011) 250-280.

DOI: 10.1016/j.ijmachtools.2010.11.003

[14] Reed-Hill, Robert: Principles of Physical Metallurgy, PWS Publishing, 3rd edition, Boston (1994).

[15] T.I. El-Wardany, H.A. Kishawy, M.A. Elbestawi: Surface Integrity of Die Material in High Speed Hard Machining, Part 2: Microhardness Variations and Ressidual Stresses, Transactions of The ASME, Journal of Manufacturing Science and Engineering, 122: 632–641 (2000).

DOI: 10.1115/1.1286557

[16] W.F. Smith: Principles of Materials Science and Engineering, New York: McGraw-Hill, Inc., 3rd edition, (1996).
