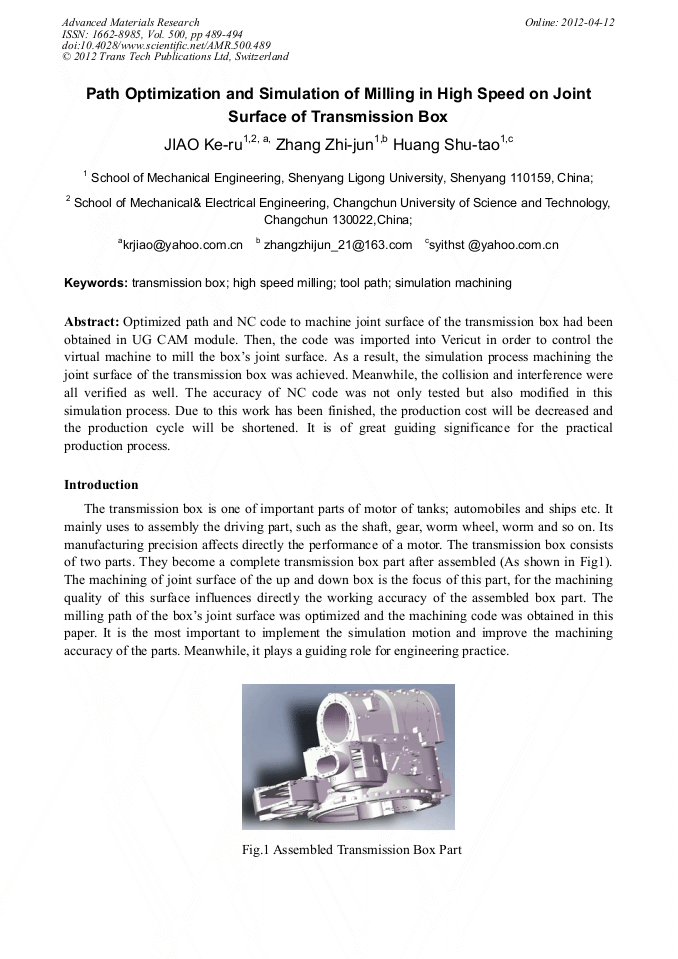

Path Optimization and Simulation of Milling in High Speed on Joint Surface of Transmission Box

Abstract:

Optimized path and NC code to machine joint surface of the transmission box had been obtained in UG CAM module. Then, the code was imported into Vericut in order to control the virtual machine to mill the boxs joint surface. As a result, the simulation process machining the joint surface of the transmission box was achieved. Meanwhile, the collision and interference were all verified as well. The accuracy of NC code was not only tested but also modified in this simulation process. Due to this work has been finished, the production cost will be decreased and the production cycle will be shortened. It is of great guiding significance for the practical production process.

• Periodical: Advanced Materials Research (Volume 500)
• Pages: 489-494
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.500.489
• Online since: April 2012
• Authors: Ke Ru Jiao, Zhi Jun Zhang, S.T. Huang
• Keywords: High Speed Milling, Simulation Machining, Tool Path, Transmission Box

References

[1] G. M. Xie, X.Y. Zeng: UG CAM Practical Course (Tsinghua University Press, Beijing 2003).

[2] J. An, Y. Zh. Zou: UG Post-builder (Tsinghua University Press, Beijing 2003).

[3] Q. L. Wang， L. M. Li: UG Milling Manufacture Process Practical Guidance (Tsinghua University Press，Beijing 2002).

[4] X. K. Luo, CH. Y. Zhang: Numerical Control Machine Tool Operation and Programming (Chemical Industry Press, Beijing, 2001).

[5] K. Iwata, M. Onosato, K. Tramoto and A. Oskioa: CIRP Annals-manufacturing Technology, 44(1): (1995) 399-402.

[6] J.V. Owen: Manufacturing Engineering， 113(5): (1994) 33-37.

[7] S. Smith, J. Tlusty: Asme Journal of Engineering for Industry, 113 (1991) 169-175.

[8] Y. B. Luo, D. F. Chen, T. Y. Xiao: China Mechanical Engineering, 14 (5): (2003) 402-405.
