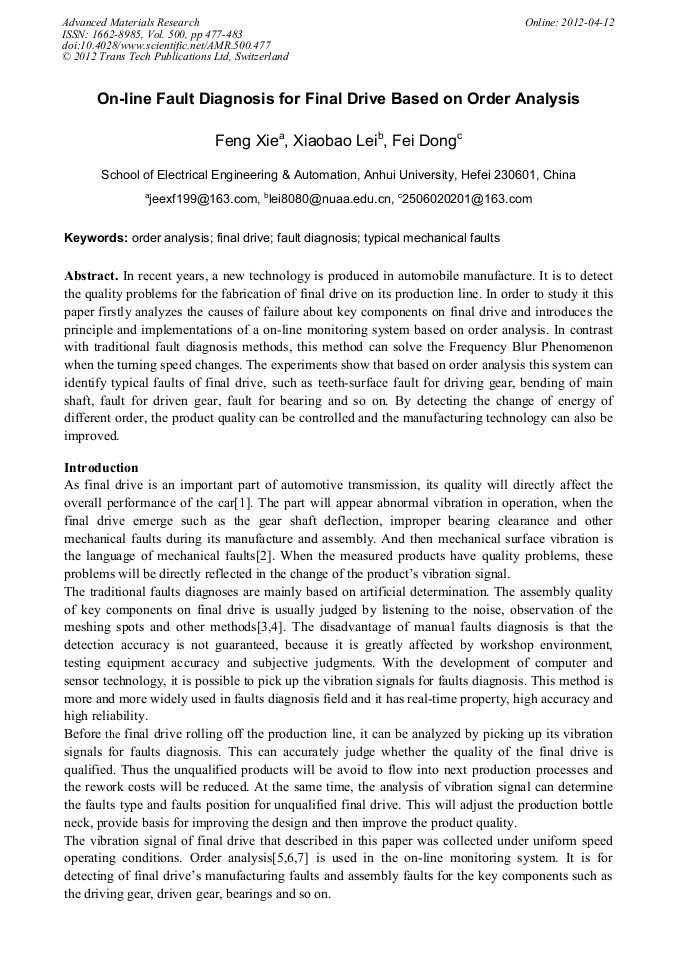

On-Line Fault Diagnosis for Final Drive Based on Order Analysis

Abstract:

In recent years, a new technology is produced in automobile manufacture. It is to detect the quality problems for the fabrication of final drive on its production line. In order to study it this paper firstly analyzes the causes of failure about key components on final drive and introduces the principle and implementations of a on-line monitoring system based on order analysis. In contrast with traditional fault diagnosis methods, this method can solve the Frequency Blur Phenomenon when the turning speed changes. The experiments show that based on order analysis this system can identify typical faults of final drive, such as teeth-surface fault for driving gear, bending of main shaft, fault for driven gear, fault for bearing and so on. By detecting the change of energy of different order, the product quality can be controlled and the manufacturing technology can also be improved.

• Periodical: Advanced Materials Research (Volume 500)
• Pages: 477-483
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.500.477
• Online since: April 2012
• Authors: Feng Xie, Xiao Bao Lei, Fei Dong
• Keywords: Fault Diagnosis, Final Drive, Order Analysis, Typical Mechanical Faults

References

[1] Jiarui Chen, Automobile structure(The second edition, Book2), China machine press, p.118, (2007).

[2] Zhijun Zhao, Zhengshi Liu, Feng Xie, Research on gearbox fault diagnosis based on time-order analysis. Journal of Hefei University Of Technology(Natural Science) , Vol. 32 No. 5, pp.632-635, May (2009).

[3] Zhijing Bai, Jiexiong Ding, Lijuan Yao etc, Research on evaluation method of main reducer quality. Mechanical Transmission, Vol. 32 No. 5, pp.78-81, May (2008).

[4] Lijuan Yao, Jiexiong Ding, An online vibration monitoring system for final drive of automobile, Noise and Vibration Control, No. 4, pp.54-57, August (2007).

[5] Ande Wan, Dongji Sun, Yongjie Zhao, Synchronous revolution order analysis application in fault diagnosis of auto gearbox. Computer Measurement & Control Vol. 14, No. 3, pp.299-232, (2006).

[6] Xiaofeng Su, Research on method of main reducer fault diagnosis based on order analysis algorithm, Master degree thesis , Hefei University Of Technology, pp.18-25, (2009).

[7] Yuancheng Wang, The application of order time analysis in gear transmission fault diagnosis, Master degree thesis, Tongji University, pp.7-56, (2006).

[8] Lei Hu, The spiral bevel gears of automobile gear reducer parameterized modeling and finite element analysis, Master degree thesis, Wuhan University of Technology, (2008).

[9] Kexing Chen, The technology of Equipment state inspection and fault diagnosis, Science and technology literature press, Beijing, (1991).

[10] Gang Chen, The vibration fault diagnosis of gear and rolling bearing, Master degree thesis, Northwestern Polytechnical University, (2007).
