Friction Stir Welding of 6061-T6 Aluminum Alloy

Abstract:

Friction stir welding (FSW) is a new and promising welding process which can produce low cost and high quality joints of heat-treatable aluminum alloys. This is because it does not require the consumable filler materials and can eliminate some welding defects such as crack and porosity. The main objective of the present work was to evaluate the processing parameter of friction stir welding (FSW) process for 6061-T6 alloy and to determine the properties of the obtained joints. Experiments have been conducted by varying the friction stir welding processing parameter ; tool rotational speed, in rpm (410, 865, 1140) and feed rate, in mm/min (22, 32, 45). The shoulder diameter of the tool for FSW was 18 mm. Microstructure, microhardness and tensile properties were investigated in this studied. The results showed that there was a variation of grain size in each weld zone which depends on the material and process parameters of FSW in the joint itself. The coarsest grain size was observed in the heat affect zone (HAZ), followed by the Thermo Mechanically Affected Zone (TMAZ) and the nugget zone. The highest hardness was reported on the nugget zone and maximum tensile strength was obtained on the sample with processing parameter 865 rpm rotational speed.

You might also be interested in these eBooks

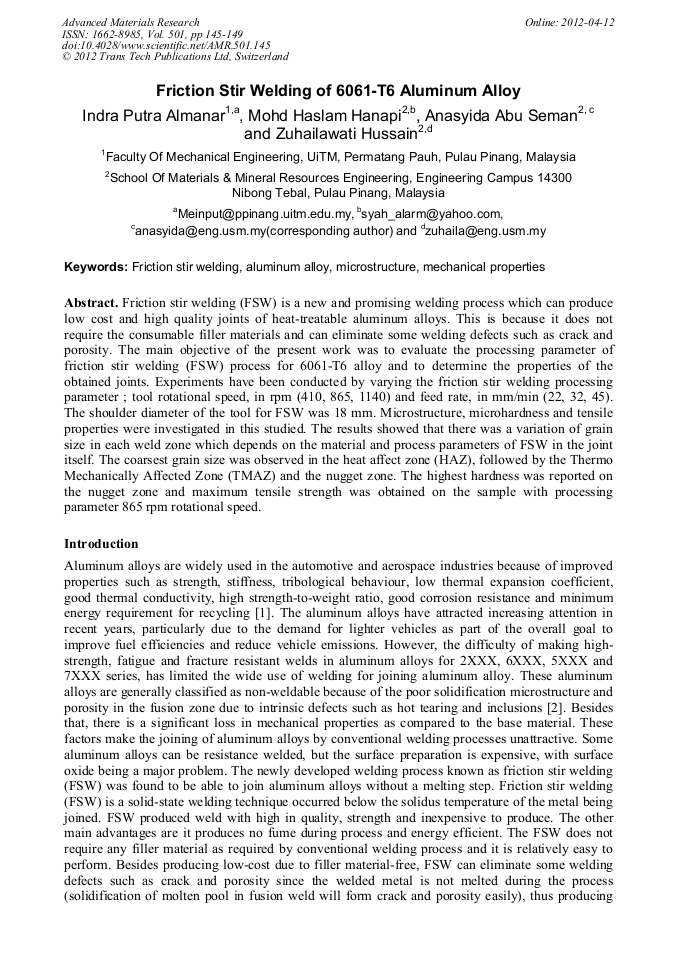

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 501)

Pages:

145-149

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.501.145

Citation:

Cite this paper

Online since:

April 2012

Authors:

Indra Putra Almanar, Mohd Haslam Hanapi, Abu Seman Anasyida, Zuhailawati Hussain

Keywords:

Aluminium Alloy, Friction Stir Welding (FSW), Mechanical Property, Microstructure

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] W.S. Miller, L.Zhuang, J.Bottema, A.J. Wittebrood, P.De Smet, A.Haszler, A.Vieregge, Recent development in aluminium alloys for the automotive industry, Materials Science and Engineering A 280(1) (2000) 37-49.

DOI: 10.1016/s0921-5093(99)00653-x

Google Scholar

[2] C. Gallais, A. Denquina, Y. Brechet, G. Lapasset, Precipitation microstructures in an AA6056 aluminium alloy after friction stir welding: Characterisation and modeling, Materials Science and Engineering A 496 (2008) 77–89.

DOI: 10.1016/j.msea.2008.06.033

Google Scholar

[3] H.J. Liu, Tensile Properties and Fracture Locations of Friction-Stir-Welded Joints of 2017-T351 Aluminum Alloy, Journal of Materials Processing Technology, 142 (2003) 692-696.

DOI: 10.1016/s0924-0136(03)00806-9

Google Scholar

[4] Y.J. Kwon, S.B. Shim, D.H. Park, Friction stir welding of 5052 aluminum alloy plates, Trana. Nonferrous Met. Soc. China (19) (2009) s23-s27.

DOI: 10.1016/s1003-6326(10)60239-7

Google Scholar

[5] Y.J. Kwon, I.Shigematsui, N. Saito, Production of ultra-fine grained aluminum alloy using friction stir process, Journal Mater Trans 44(7) (2003) 1343−1350.

DOI: 10.2320/matertrans.44.1343

Google Scholar

[6] A.Ali, Characterization of 2024-T351 Friction Stir Welding Joints. Journal of Failure Analysis and Prevention, 6 (4) (2006) 83-96.

DOI: 10.1361/154770206x117559

Google Scholar

[7] V.Balasubramanian, Relationship between base metal properties and friction stir welding process parameters, Material Science Engineering A, 480 (2008) 397–403.

DOI: 10.1016/j.msea.2007.07.048

Google Scholar
