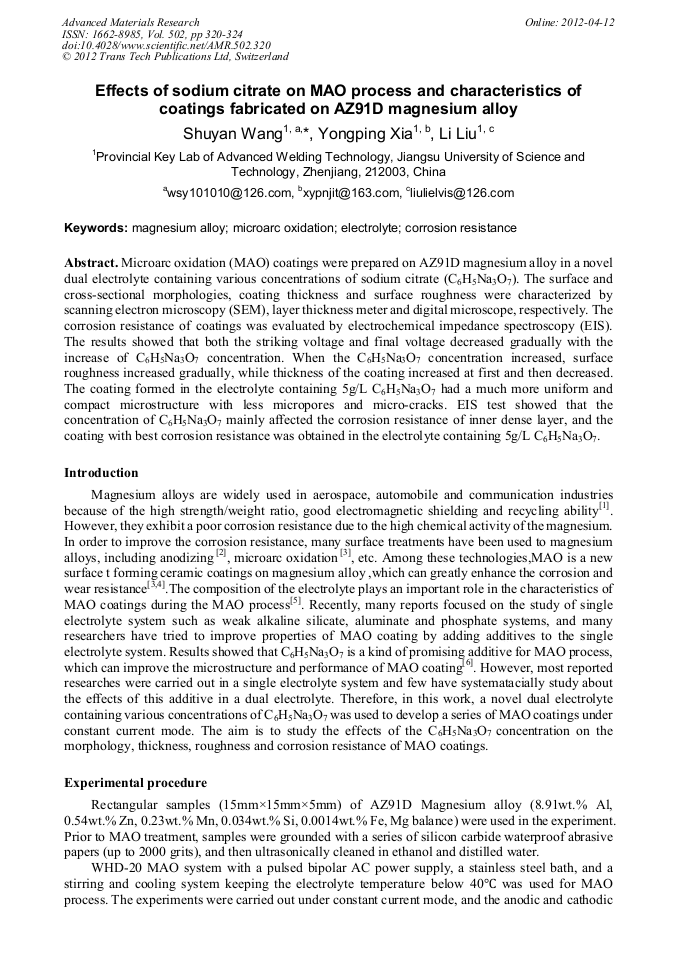

Effects of Sodium Citrate on MAO Process and Characteristics of Coatings Fabricated on AZ91D Magnesium Alloy

Abstract:

Microarc oxidation (MAO) coatings were prepared on AZ91D magnesium alloy in a novel dual electrolyte containing various concentrations of sodium citrate (C₆H₅Na₃O₇). The surface and cross-sectional morphologies, coating thickness and surface roughness were characterized by scanning electron microscopy (SEM), layer thickness meter and digital microscope, respectively. The corrosion resistance of coatings was evaluated by electrochemical impedance spectroscopy (EIS). The results showed that both the striking voltage and final voltage decreased gradually with the increase of C₆H₅Na₃O₇ concentration. When the C₆H₅Na₃O₇ concentration increased, surface roughness increased gradually, while thickness of the coating increased at first and then decreased. The coating formed in the electrolyte containing 5g/L C₆H₅Na₃O₇ had a much more uniform and compact microstructure with less micropores and micro-cracks. EIS test showed that the concentration of C₆H₅Na₃O₇ mainly affected the corrosion resistance of inner dense layer, and the coating with best corrosion resistance was obtained in the electrolyte containing 5g/L C₆H₅Na₃O₇.

• Periodical: Advanced Materials Research (Volume 502)
• Pages: 320-324
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.502.320
• Online since: April 2012
• Authors: Shu Yan Wang, Yong Ping Xia, Li Liu
• Keywords: Corrosion Resistance, Electrolyte, Magnesium Alloy, Micro-Arc Oxidation

References

[1] P.D. Caton, Magnesium-an old material with new applications, Mater. Des. 12 (1991) 309-316.

[2] Y. Liu, Z.L. Wei, F.W. Yang and Z. Zhang. Environmental friendly anodizing of AZ91D magn-esium alloy in alkaline borate-benzoate electrolyte, J. Alloys Compd. 509 (2011) 6440-6446.

DOI: 10.1016/j.jallcom.2011.03.083

[3] A.L. Yerokhin, X. Nie, A. Leyland, A. Matthews and S.J. Dowey, Plasma electrolysis for surface engineering, Surf. Coat. Technol. 122 (1999) 73-93.

DOI: 10.1016/s0257-8972(99)00441-7

[4] P.B. Srinivasan, C. Blawert, W. Dietzel, Dry sliding wear behaviour of plasma electrolytic oxidation coated AZ91 cast magnesium alloy, Wear. 266 (2009) 1241-1247.

DOI: 10.1016/j.wear.2009.03.013

[5] H. H Luo, Q.Z. Cai, B.K. Wei, B. Yu, D.J. Li, J. He and Z. Liu, Effect of (NaPO3)6 concentrations on corrosion resistance of plasma electrolytic oxidation coatings formed on AZ91D magnesium alloy, J. Alloys Compd. 464 (2008) 537-543.

DOI: 10.1016/j.jallcom.2007.10.072

[6] S. Lu, Z.X. Wang, J. Chen and X.S. Zhou, Optimization of dual electrolyte and characteristics of micro-arc oxidation coating fabricated on ZK60 Mg alloy, Trans. Nonferrous Met. Soc. China. 21(2001) 929-935.

DOI: 10.1016/s1003-6326(11)60803-0

[7] F. Liu, D.Y. Shan, Y.W. Song and E.H. Han, Formation process of composite plasma electrolytic oxidation coating containing zirconium oxides on AM50 magnesium alloy, Trans. Nonferrous Met. Soc. China. 21 (2011) 943-948.

DOI: 10.1016/s1003-6326(11)60805-4

[8] L.M. Chang, Growth regularity of ceramic coating on magnesium alloy by plasma electrolytic oxidation, J. Alloys Compd. 468 (2009) 462-465.

DOI: 10.1016/j.jallcom.2008.01.069

[9] J. Liang, B.G. Guo, J. Tian, H.W. Liu, J.F. Zhou, W.M. Liu and T. Xu, Effects of NaAlO2 on structure and corrosion resistance of microarc oxidation coatings formed on AM60B magnesium alloy in phosphate-KOH electrolyte, Surf. Coat. Technol. 199 (2005).

DOI: 10.1016/j.surfcoat.2005.03.020

[10] H.P. Duan, C.W. Yan, F.H. Wang, Effect of electrolyte additives on performance of plasma electrolytic oxidation films formed on magnesium alloy AZ91D, Electrochim. Acta. 52 (2007) 3785-3793.

DOI: 10.1016/j.electacta.2006.10.066
