Preparation of Nanosilver Loaded Calcium Phosphate by In Situ Phase Conversion Process

Faungchat Thammarakcharoen; K. Wasoontararat; Jintamai Suwanprateeb

doi:10.4028/www.scientific.net/AMR.506.254

Paper Titles

Properties of Porous Alumina Fabricated by Ceramic Injection Moulding Using Environmentally Friendly Binder
p.238

Factors Influencing the Morphology of Cellulose Acetate Electrospun Fiber Mats
p.242

Combination Effects of the Antimicrobial Agents and Cinnamon Oil
p.246

A New Approach for the Preparation of Bleached Shellac for Pharmaceutical Application: Solid Method
p.250

Preparation of Nanosilver Loaded Calcium Phosphate by In Situ Phase Conversion Process
p.254

Molecular Dynamics Study of DNA Duplex Containing Carbazole-Derived Universal Base
p.258

Effect of Crystalline Morphology on Mechanical Properties of PPB Polymer Nanofiber Composite
p.262

Effect of Galactomannan on the Dynamic Properties of Xyloglucan Aqueous Solution
p.266

Determination of Surface Free Energy and Contact Angle for Hydrolyzed Shellac
p.270

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 506Preparation of Nanosilver Loaded Calcium Phosphate...

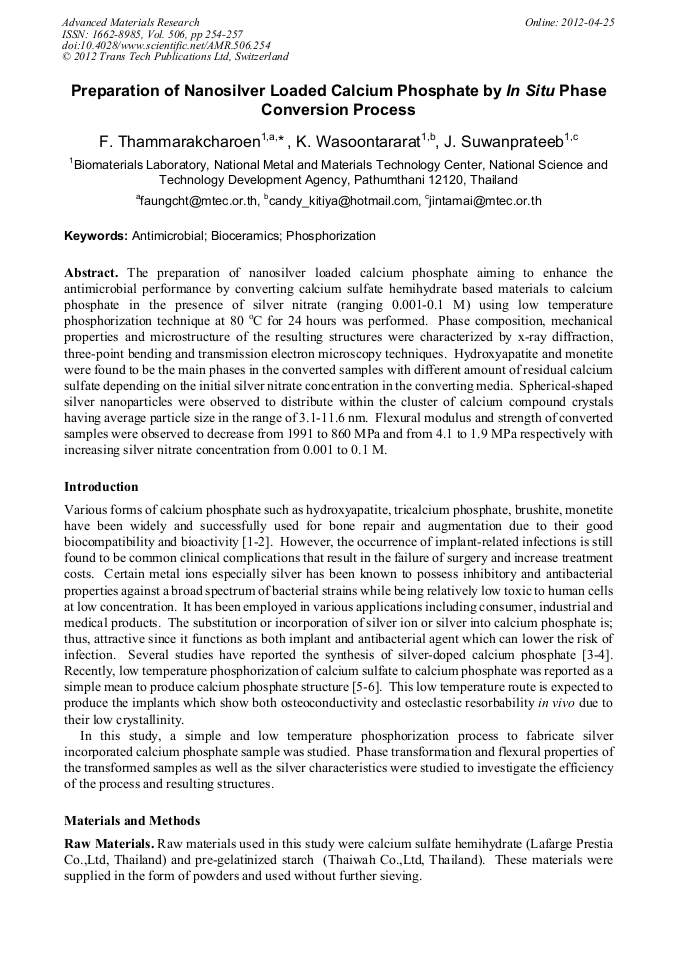

Preparation of Nanosilver Loaded Calcium Phosphate by In Situ Phase Conversion Process

Abstract:

The preparation of nanosilver loaded calcium phosphate aiming to enhance the antimicrobial performance by converting calcium sulfate hemihydrate based materials to calcium phosphate in the presence of silver nitrate (ranging 0.001-0.1 M) using low temperature phosphorization technique at 80 °C for 24 hours was performed. Phase composition, mechanical properties and microstructure of the resulting structures were characterized by x-ray diffraction, three-point bending and transmission electron microscopy techniques. Hydroxyapatite and monetite were found to be the main phases in the converted samples with different amount of residual calcium sulfate depending on the initial silver nitrate concentration in the converting media. Spherical-shaped silver nanoparticles were observed to distribute within the cluster of calcium compound crystals having average particle size in the range of 3.1-11.6 nm. Flexural modulus and strength of converted samples were observed to decrease from 1991 to 860 MPa and from 4.1 to 1.9 MPa respectively with increasing silver nitrate concentration from 0.001 to 0.1 M.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 506)

Pages:

254-257

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.506.254

Citation:

Cite this paper

Online since:

April 2012

Authors:

Faungchat Thammarakcharoen, K. Wasoontararat, Jintamai Suwanprateeb

Keywords:

Antimicrobial, Bioceramic, Phosphorization

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] S. V. Dorozhkin: J. Mater. Sci. Vol. 42 (2007), p.1061.

Google Scholar

[2] S.M. Warren, R.K. Nacamuli, H.J.K. Song and M.T. Longaker: J. Cranio. Surg. Vol. 15(1) (2004), p.34.

Google Scholar

[3] Jin-Ku Liu, Xiao-Hong Yang, Xin-Gang Tian: Powder Technol. Vol. 184 (2008), p.21.

Google Scholar

[4] V. Simon, C. Albon, S. Simon: J. Non-Crystalline Solids. Vol. 354 (2008), p.1751.

Google Scholar

[5] K. Wasoontararat, W. Suvannapruk, J. Suwanprateeb: Adv. Mater. Res. Vol. 93-94 (2010), pp.63-66.

Google Scholar

[6] J. Suwanprateeb, W. Suvannapruk and K. Wasoontararat: J. Mater. Sci.: Mater. in Med. Vol. 21(2) (2010), p.419.

Google Scholar

[7] Marcos Díaz, Flora Barba, Miriam Miranda, Francisco Guitián, Ramón Torrecillas, José S. Moya: J. Nanomater. Vol. 2009 (2009), p.1.

Google Scholar

[8] R. Janardhanana, M. Karuppaiaha, N. Hebalkara, T. N. Rao: Polyhedron. Vol. 28(12) (2009), p.2522.

Google Scholar
