Study of Mechanical Properties of Magnesium Oxide Doped Alumina (Al2O3) and Yttria Stabilized Zirconia (YSZ) Composite for Medical Applications

A. Phothawan; K. Nganvongpanit; T. Tunkasiri; Sukum Eitssayeam

doi:10.4028/www.scientific.net/AMR.506.521

Paper Titles

Gelatin/Fibroin Hydrogel for Controlled Release of Human Dentin Matrix Extract
p.505

Fabrication of P₂O₅-CaO-Na₂O Glasses Doped with Zinc Oxide for Artificial Bone Applications
p.509

Antimicrobial Performance and Cytotoxicity of Antibiotics Impregnated Hydroxyapatite for Osteomyelitis Treatment
p.513

Floating Alginate Beads as Carriers for Self-Emulsifying System Containing Tetrahydrocurcumin
p.517

Study of Mechanical Properties of Magnesium Oxide Doped Alumina (Al₂O₃) and Yttria Stabilized Zirconia (YSZ) Composite for Medical Applications
p.521

Investigation of Antibacterial Properties of Soda Calcium Borosilicate Glass Doped with TiO₂
p.525

Influence of Diluents on Physical Properties of Soybean Extracted Powder Prepared by Spray Drying Method
p.529

Development of Acrylic Matrix Type Ketoprofen Patch
p.533

Antimicrobial Effect of Brazillian Propolis/Polycaprolactone Polymer on some Human Pathogenic Bacteria
p.537

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 506Study of Mechanical Properties of Magnesium Oxide...

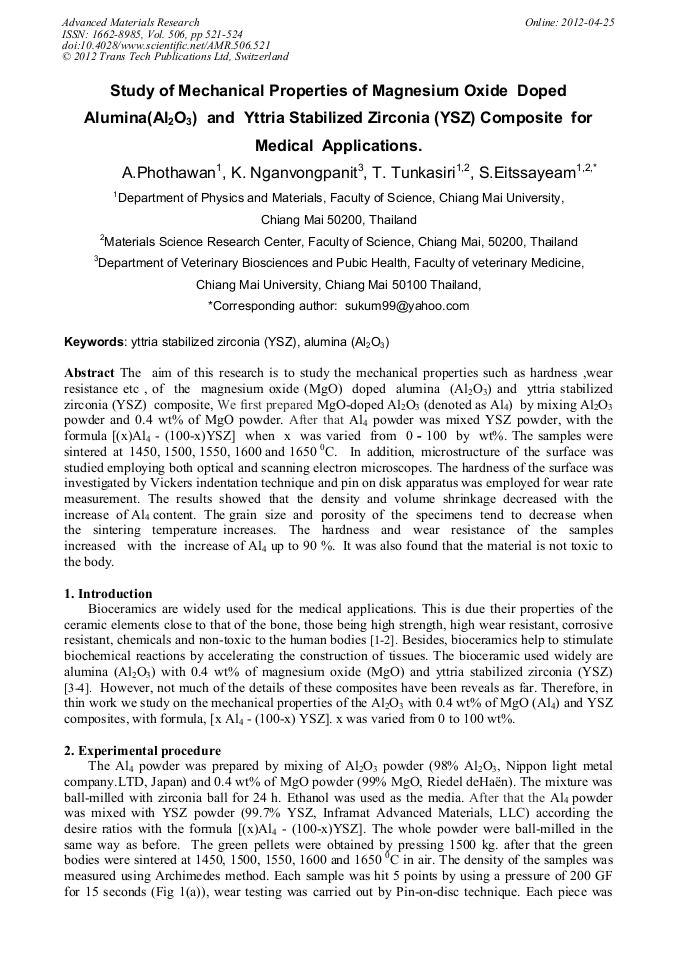

Study of Mechanical Properties of Magnesium Oxide Doped Alumina (Al₂O₃) and Yttria Stabilized Zirconia (YSZ) Composite for Medical Applications

Abstract:

The aim of this research is to study the mechanical properties such as hardness ,wear resistance etc , of the magnesium oxide (MgO) doped alumina (Al₂O₃) and yttria stabilized zirconia (YSZ) composite, We first prepared MgO-doped Al₂O₃ (denoted as Al₄) by mixing Al₂O₃ powder and 0.4 wt% of MgO powder. After that Al₄ powder was mixed YSZ powder, with the formula [(x)Al₄ - (100-x)YS when x was varied from 0 - 100 by wt%. The samples were sintered at 1450, 1500, 1550, 1600 and 1650 °C. In addition, microstructure of the surface was studied employing both optical and scanning electron microscopes. The hardness of the surface was investigated by Vickers indentation technique and pin on disk apparatus was employed for wear rate measurement. The results showed that the density and volume shrinkage decreased with the increase of Al₄ content. The grain size and porosity of the specimens tend to decrease when the sintering temperature increases. The hardness and wear resistance of the samples increased with the increase of Al₄ up to 90 %. It was also found that the material is not toxic to the body.
