Effect of Vanadium on Thermal Fatigue Resistance of Cr5 Deposited Metal

Abstract:

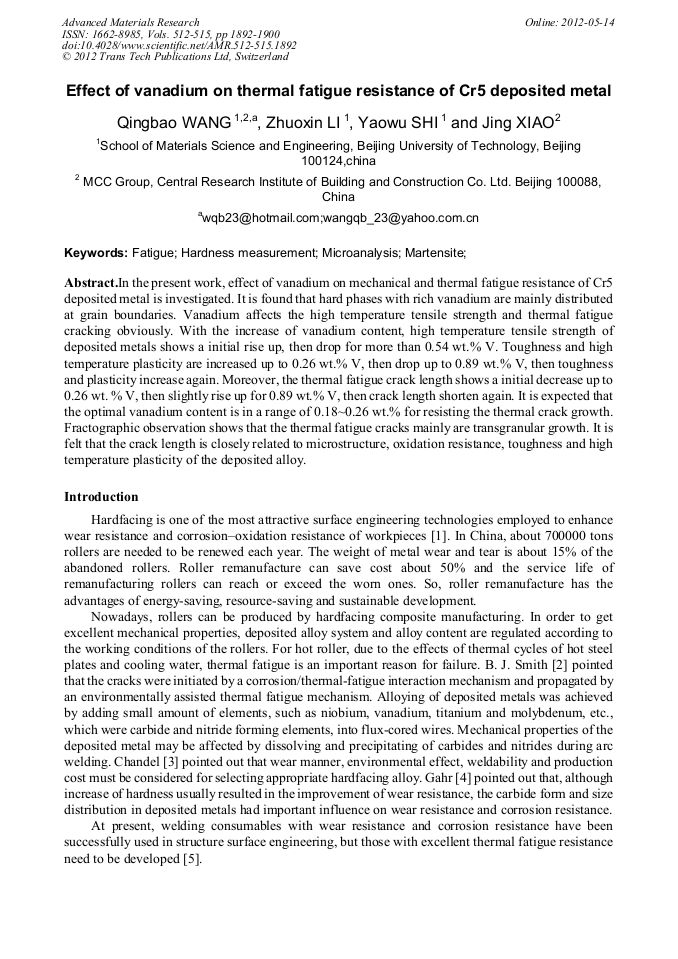

In the present work, effect of vanadium on mechanical and thermal fatigue resistance of Cr5 deposited metal is investigated. It is found that hard phases with rich vanadium are mainly distributed at grain boundaries. Vanadium affects the high temperature tensile strength and thermal fatigue cracking obviously. With the increase of vanadium content, high temperature tensile strength of deposited metals shows a initial rise up, then drop for more than 0.54 wt.% V. Toughness and high temperature plasticity are increased up to 0.26 wt.% V, then drop up to 0.89 wt.% V, then toughness and plasticity increase again. Moreover, the thermal fatigue crack length shows a initial decrease up to 0.26 wt. % V, then slightly rise up for 0.89 wt.% V, then crack length shorten again. It is expected that the optimal vanadium content is in a range of 0.18~0.26 wt.% for resisting the thermal crack growth. Fractographic observation shows that the thermal fatigue cracks mainly are transgranular growth. It is felt that the crack length is closely related to microstructure, oxidation resistance, toughness and high temperature plasticity of the deposited alloy

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 1892-1900
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.1892
• Online since: May 2012
• Authors: Qing Bao Wang, Zhuo Xin Li, Yao Wu Shi, Jing Xiao
• Keywords: Fatigue, Hardness Measurement, Martensite, Microanalysis

References

[1] Atony KC, Antony AN, Bhansali KJ, Messler RW, Miller AE, Price MO (1983) in: Hardfacing, ASM, Handbook6: 771

[2] Smith BJ, Erskine CP, Hartranft RJ,Marder AR (1992) Corrosion-Fatigue Circumferential Cracking in Cr-Mo Low Alloy Boiler Tube Steels: Part 2—Laboratory Simulation, J. Eng. Mater. Technol 114(3): 270~277

DOI: 10.1115/1.2904172

[3] Chandel RS (2001) Hardfacing consumables and their characteristics for mining and mineral processing industry, Indian Weld. J:26–34

DOI: 10.22486/iwj.v34i1.178619

[4] Gahr KZ (1987) Microstructure and Wear of Materials, Elsevier, Oxford

[5] Persson A,Hogmark S,Bergström J (2005) Thermal fatigue cracking of surface engineered hot work tool steels. Surface & Coatings Technology 191: 216–227.

DOI: 10.1016/j.surfcoat.2004.04.053

[6] Wei SHZH, Zhu JH,Xu LJ (2006) Effects of carbon on microstructures and properties of high vanadium high-speed steel. Materials and Design 27:58~63

DOI: 10.1016/j.matdes.2004.09.027

[7] Hwang KC, Lee S, Lee HC (1998) Effects of alloying elements on microstructure and fracture properties of cast high speed steel rolls Part I: Microstructural analysis. Materials Science and Engineering A254:282–295

DOI: 10.1016/s0921-5093(98)00626-1

[8] Hwang KC, Lee S, Lee HC (1998) Effects of alloying elements on microstructure and fracture properties of cast high speed steel rolls Part II. Fracture behavior. Materials Science and Engineering A254:296–304

DOI: 10.1016/s0921-5093(98)00694-7

[9] Persson A, Hogmark S, Bergström J (2004) Simulation and evaluation of thermal fatigue cracking of hot work tool steels. International Journal of Fatigue 26:1095–1107.

DOI: 10.1016/j.ijfatigue.2004.03.005

[10] Persson A, Hogmark S, Bergström J (2004) Failure modes in field-tested brass die casting dies. Journal of Materials Processing Technology 148:108–118.

DOI: 10.1016/j.jmatprotec.2004.01.052

[11] Zhao XCH(2003) Research on Cr5-Type Forged Steel for Backup Roll Heat Treatment of metals 28(6):26~28

[12] Chang KK, Park JI, Lee S (2005) Effects of alloying elements on microstructure, hardness, and fracture toughness of centrifugally cast high-speed steel rolls. Metallurgical and Materials Transactions 36A(01):87-97.

DOI: 10.1007/s11661-005-0141-0

[13] Manganello SJ (1990) in: Corbett RB Ed., Rolls for the Metal Working Industries, Iron and Steel Society, Warrendale, PA: 227.

[14] De Barbadillo JJ, Trozzi CJ (1981) Mechanism of banding in hot strip mill work rolls. Iron and Steel Engineer:63-72

[15] Smith BJ, Erskine CP, Hartranft RJ (1995) High-Temperature Corrosion-Fatigue Circumferential Cracking life Evaluation Procedure for low Alloy Cr-Mo Boiler Tube Steel. Materials characterization 34:81-86

DOI: 10.1016/1044-5803(94)00052-m

[16] Birol Y (2010) Materials Science and Engineering A 527 : 6091–6097

[17] Fuchs KD (2001) Hot-work tool steels with improved properties for die casting application, in: J. Bergström (Ed.), Proceedings of the ITC-VI, Karlstad :15–22.

[18] Duh D, Schruff I (2002) Optimized heat treatment and nitriding parameters for a new hot-work tool steel, in: J. Bergström Ed., Proceedings of the ITC-VI, Karlstad: 479–496.

[19] Roche P, Beaton M, Klarenfjord B, Sandberg O (1997) Toughness and ductility your die needs both, in: Trans. 19th Int. Die Casting Congress and Exposition, NADCA, Minneapolis:223–232.
