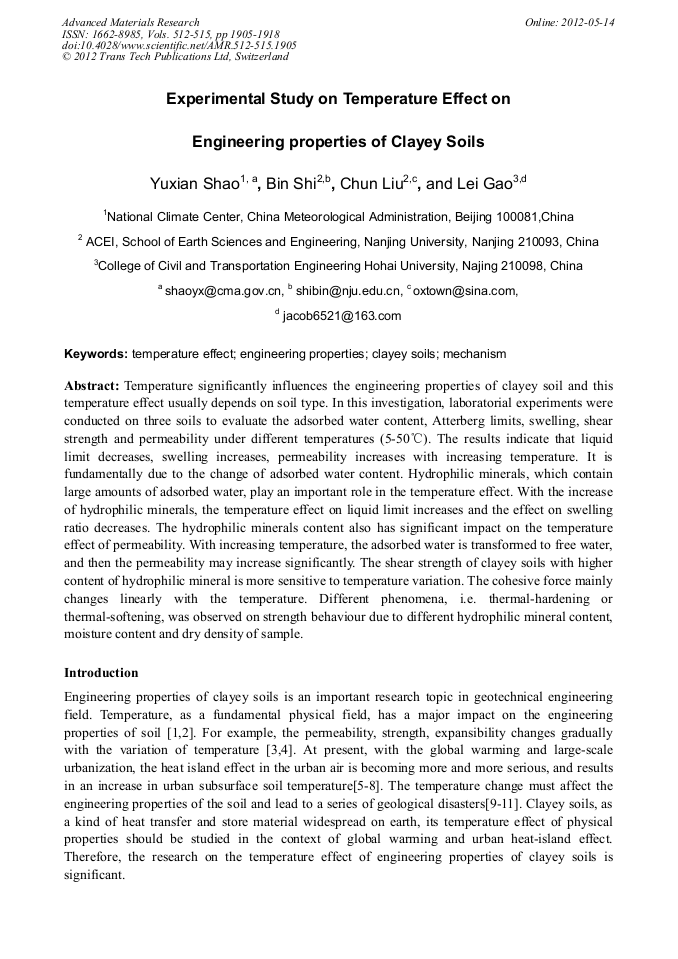

Experimental Study on Temperature Effect on Engineering Properties of Clayey Soils

Abstract:

Temperature significantly influences the engineering properties of clayey soil and this temperature effect usually depends on soil type. In this investigation, laboratorial experiments were conducted on three soils to evaluate the adsorbed water content, Atterberg limits, swelling, shear strength and permeability under different temperatures (5-50°C). The results indicate that liquid limit decreases, swelling increases, permeability increases with increasing temperature. It is fundamentally due to the change of adsorbed water content. Hydrophilic minerals, which contain large amounts of adsorbed water, play an important role in the temperature effect. With the increase of hydrophilic minerals, the temperature effect on liquid limit increases and the effect on swelling ratio decreases. The hydrophilic minerals content also has significant impact on the temperature effect of permeability. With increasing temperature, the adsorbed water is transformed to free water, and then the permeability may increase significantly. The shear strength of clayey soils with higher content of hydrophilic mineral is more sensitive to temperature variation. The cohesive force mainly changes linearly with the temperature. Different phenomena, i.e. thermal-hardening or thermal-softening, was observed on strength behaviour due to different hydrophilic mineral content, moisture content and dry density of sample.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 1905-1918
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.1905
• Online since: May 2012
• Authors: Yu Xian Shao, Bin Shi, Chun Liu, Lei Gao
• Keywords: Clayey Soils, Engineering Properties, Mechanism, Temperature Effect

References

[1] MITCHELL J K, KENICHI S. Fundamentals of soil behavior. New York: John Wiley &Sons, Inc., (2005)

[2] A. N. KURICHSKY, et al. Translated by LI Sheng-lin, et al. Translations of the soil bound water. Beijing: Geological Press.(1982 )(in Chinese)

[3] T.J. Marshall, J.W. Holmes Soil Physics(2nd ed.)Cambridge Univ. Press, New York (1988)

[4] PASSWELL R E. Temperature effects on clay consolidation. J. Soil Mech. and Found. Engrg. Div., ASCE, 93(3) (1967): 9－21.

[5] Bin SHI, Chun LIU, Baojun WANG, Urban heat island effect on engineering properties of soil and the related disaster effect . Advances in Earth Science, 23(11) (2008): 1167-1173. (in Chinese)

[6] Bin SHI, Yuxian SHAO, Chun LIU, et al.. Impact and key issues of urban heat island effect to soil engineering properties. Journal of Engineering Geology, 17(2) (2009): 180-187. (in Chinese)

[7] Ferguson G, Woodbury AD. Subsurface heat flow in an urban environment. J Geophys Res 109 (2004):B02402

[8] S. Lei, J.L. Daniels, Z. Bian, N. Wainaina. Improved soil temperature modeling. Environmental Earth Science (2010) (online first) http://www.springerlink.com/content/4270051v730891w4/

[9] Ferguson G, Woodbury AD. Urban heat island in the subsurface. Geophys Res Lett 34 (2007):L23713

[10] Figuerola P I, MazzeoNA. Urban–ruraltemperature differences in Buenos Aires. Int J Climatol 18: (1998):p.1709–1723

DOI: 10.1002/(sici)1097-0088(199812)18:15<1709::aid-joc338>3.0.co;2-i

[11] WANG Baojun, SHI Bin, JIANG Hongtao, et al. Characteristics of Ground Temperature Variations in Superficial Soil Layers for Nanjing in Recent 30 Years. Geological Journal of China Universities, 15(2) (2009): 199-205. (in Chinese)

[12] DELAGE P, SULTAN N, CUI Y J. On the thermal consolidation of Boom clay. Canadian Geotechnical Journal, 37(4) (2000): 343-354.

DOI: 10.1139/t99-105

[13] Y.J. Cui, N. Sultan, P. Delage. A thermomechanical model for saturated clays. Canadian Geotechnical Journal, 37 (2) (2000), p.607–620

DOI: 10.1139/t99-111

[14] P. Delage, N. Sultan, Y.J. Cui. On the thermal consolidation of Boom clay. Canadian Geotechnical Journal, 37 (4) (2000), p.343–354

DOI: 10.1139/t99-105

[15] N.H. Abu-Hamdeh. Thermal properties of soils as affected by density and water content. Biosystems Engineering, 86 (1) (2003), p.97–102

DOI: 10.1016/s1537-5110(03)00112-0

[16] BURGHIGNOLI A, DESIDERI A, MILIZIANO S. A laboratory study on the thermomechanical behaviour of clayey soils. Canadian Geotechnical Journal, 37(4) (2000): 764–780.

DOI: 10.1139/t00-010

[17] Boudali M. Viscous behavior of natural clays. Proc.13th ICSMFE, (1)(1994): 411-416.

[18] Bruyn D.De, Thimus J.F. The influence of temperature on mechanical characteristics of Boom clay: The results of an initial laboratory programme.Engineering Geology, 1996, 41: 117-126.

DOI: 10.1016/0013-7952(95)00029-1

[19] Qingbai WU, Yong-zhi LIU, Bin SHI, et al. Advance research on frozen engineering permafrost region along qinghai-xizang plateu highway. Journal of Engineering Geology, 10(1) (2002): 55-61. (in Chinese)

[20] TANG A M, CUI Y J. Controlling suction by the vapour equilibrium technique at different temperatures and its application in determining the water retention properties of MX80 clay. Canadian Geotechnical Journal, 42 (2005): 287–296.

DOI: 10.1139/t04-082

[21] Yacheng LIU, Quanshen LIU, Yushan WU, et al. Irreversible thermodynamics and thermoelasticity of fractured rock mass surrounding nuclear waste repositories. Chinese Journal of Rock Mechanics and Engineering, 19(3) (2000): 361-365. (in Chinese)

[22] Heng WU, Xingui ZHANG, Nian-ping YI, et al. Influence of water-soil interaction on soil strength in urban areas. Rock and soil mechanics, 20(4) (1999): 25-30. (in Chinese)

[23] Heng WU, Xiaoduo OU, Dong ZHOU. Thermal Mechanics Conductivity of the Clayey Soil in Urban Environment[J]. Guangxi Sciences, 10(3) (2003): 205- 207, 215. (in Chinese)

[24] Caifeng WU. The adsorbed bound water content Measurement and some characteristics of seepage. Chinese Journal of Geotechnical Engineering, 6(6) (1984): 84-93. (in Chinese)

[25] Luorong TAN, Lingwei KONG. Special geotechnical engineering soil property. Beijing: Science Press( 2006) (in Chinese)

[26] IAN J, CHRISTOPHER D R. Liquid limit and the temperature sensitivity of clays. Engineering Geology, 49(1998): 95-109.

[27] Gedzelman S D, Austin S, CermakR,et al. Mesoscaleaspectsof the urban heat island around New York City. Theor Appl Climatol 75(1) (2003):p.29–42

DOI: 10.1007/s00704-002-0724-2

[28] Oke TRThe heat island of the urban boundary layer: characteristic causes and effects. In: Cermak JE, Davenport AG,Plate EJ, Viegas DX (eds) Wind climate in cities. KluwerAcademic Publishers, Dordrecht, (1995), p.81–107

DOI: 10.1007/978-94-017-3686-2_5

[29] A.A. Al-Temeemi, D.J. Harris. The generation of subsurface temperature profiles for Kuwait. Energy and Buildings, 33 (2001), p.837–841

DOI: 10.1016/s0378-7788(01)00069-x

[30] ABDALLAH I. HUSEIN M, et.al. Effects of organic matter on the physical and the physico-chemical properties of an illitic soil. Applied Clay Science, 14(1999): 257–278.

DOI: 10.1016/s0169-1317(99)00003-4

[31] AGREN, G I, WETTERSTEDT. J A M. What determines the temperature response of soil organic matter decomposition?. Soil Biology & Biochemistry, 39(2007): 1794–1798.

DOI: 10.1016/j.soilbio.2007.02.007

[32] Tehong LIU. Expansive soil problems on engineering construction.Beijing: China Building Industry Press, (1997) (in Chinese)

[33] A.M. Tang, Y.J. Cui. Controlling suction by the vapour equilibrium technique at different temperatures and its application in determining the water retention properties of MX80 clay. Canadian Geotechnical Journal, 42 (2005), p.287–296

DOI: 10.1139/t04-082

[34] Y.P. Yuan, H.H. Ji, Y.X. Du. Semi-analytical solution for steady-periodic heat transfer of attached underground engineering envelope. Building and Environment, 43 (2008), p.1147–1152

DOI: 10.1016/j.buildenv.2007.03.001

[35] Yuan WANG, Bin SHI, Lei GAO, et al. Laboratory tests for temperature effects of clayey soil permeability. Journal of Engineering Geology, 18(3) (2010): 351~356. (in Chinese)

[36] A.C. Jacinto, M.V. Villar, R. Gomez-Espina. Adaptation of the van Genuchten expression to the effects of temperature and density for compacted bentonites. Applied Clay Science, 42 (2009), p.575–582

DOI: 10.1016/j.clay.2008.04.001

[37] Yuxian SHAO, Bin SHI, Lei GAO, et al. Laboratory Study on Influence of Temperature on Shear Strength of Unsaturated Clayey Soil. Geological Journal of China Universities, 15(2) (2009): 213-217. (in Chinese)
