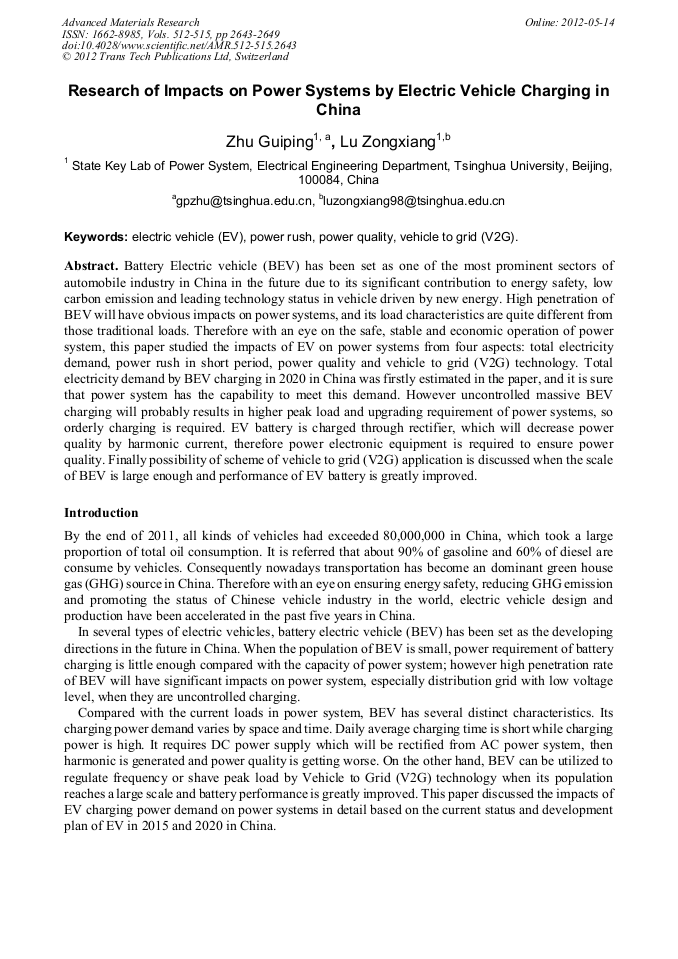

Research of Impacts on Power Systems by Electric Vehicle Charging in China

Abstract:

Battery Electric vehicle (BEV) has been set as one of the most prominent sectors of automobile industry in China in the future due to its significant contribution to energy safety, low carbon emission and leading technology status in vehicle driven by new energy. High penetration of BEV will have obvious impacts on power systems, and its load characteristics are quite different from those traditional loads. Therefore with an eye on the safe, stable and economic operation of power system, this paper studied the impacts of EV on power systems from four aspects: total electricity demand, power rush in short period, power quality and vehicle to grid (V2G) technology. Total electricity demand by BEV charging in 2020 in China was firstly estimated in the paper, and it is sure that power system has the capability to meet this demand. However uncontrolled massive BEV charging will probably results in higher peak load and upgrading requirement of power systems, so orderly charging is required. EV battery is charged through rectifier, which will decrease power quality by harmonic current, therefore power electronic equipment is required to ensure power quality. Finally possibility of scheme of vehicle to grid (V2G) application is discussed when the scale of BEV is large enough and performance of EV battery is greatly improved.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 2643-2649
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.2643
• Online since: May 2012
• Authors: Gui Ping Zhu, Zong Xiang Lu
• Keywords: Electric Vehicle (EV), Power Quality (PQ), Power Rush, Vehicle-to-Grid (V2G)

References

[1] National Bureau of Statistics of China. China Statistics Yearbook 2011 (In Chinese). Beijing: China Statistics Press, (2011)

[2] Geng Qin editor in chief. China Energy Statistical Yearbook 2010 (In Chinese). Beijing: China Statistics Press, (2010)

[3] Willett Kempton, Steven E. Latendre, 1997. Electric vehicles as a new power source for electric utilities, Transportation resources-D, 2(3): 157-175

DOI: 10.1016/s1361-9209(97)00001-1

[4] Li Wu, Chunlin Guo, Xiaolu Chen, etc. The impact of large scale charge on residential system. 2011 4th International Conference on Electric Utility Deregulation and Restructuring and Power Technologies (DRPT), 6-9 July 2011: 668 – 672

DOI: 10.1109/drpt.2011.5993977

[5] Justin Schlee, Anne Mousseau, Jeff Eggebraaten, etc. The effect of plug-in electric vehicles on a small distribution grid. North American Power Symposium (NAPS), 4-6 Oct. 2009: 1-6

DOI: 10.1109/naps.2009.5484055

[6] Shengnan Shao, Manisa Pipattanasomporn and Saifur Rahman. Challenges of PHEV penetration to the residential distribution network. Proceedings of IEEE Power and Engineering Society General Meeting, Calgary, Canada, 26-30 July 2009: 1-8

DOI: 10.1109/pes.2009.5275806

[7] Alicja Lojowska, Dorota Kurowicka, Georgios Papaefthymiou, etc. From transportation patterns to power demand: Stochastic modeling of uncontrolled domestic charging of electric vehicles. IEEE Power and Engineering Society General Meeting, 24-29 July 2011: 1-7

DOI: 10.1109/pes.2011.6039187

[8] Kejun Qian, Chengke Zhou, Malcolm Allan, etc. Modeling of load demand due to EV battery charging in distribution systems. IEEE Trans. On Power Systems, 26(2), May 2011: 802-810

DOI: 10.1109/tpwrs.2010.2057456

[9] Kristien Clement, Edwin Haesen and Johan Driesen. Coordinated charging of multiple plug-in hybrid electric vehicles in residential distribution grids. Power Systems Conference and Exposition, 2009, 15-18 March 2009: 1-7

DOI: 10.1109/psce.2009.4839973

[10] Peter Richardson, Damian Flynn and Andrew Keane. Optimal charging of electric vehicles in low-voltage distribution systems. Accepted by IEEE Trans. on Power systems.

DOI: 10.1109/tpwrs.2011.2158247

[11] P.T. Staats, W.M. Grady, A.Arapostaathis, etc. A statistical analysis of the effect of electric vehicle battery charging on distribution system harmonic voltages. IEEE Trans. on Power Delivery, 13(2), April 1998: 640-646

DOI: 10.1109/61.660951

[12] Paul S.Moses, Sara Deilami, Amir S. Masoum, etc. Power quality of smart grids with plug-in electric vehicles considering battery charging profile. Innovative Smart Grid Technologies Conference Europe (IGST Eureope), 2010 IEEE PES, 11-13 Oct. 2010: 1-7

DOI: 10.1109/isgteurope.2010.5638983

[13] Huang Shaofang. Research on Harmonics due to Electric Vehicle Charging [D] (In Chinese). Beijing Jiaotong University, (2008)

[14] Li Dong. Power Factor Correction Techniques Based on Boost Converter with Universal input Voltage Range [D] (In Chinese). Nanjing University of Aeronautics and Astronautics, (2006)

[15] Jiang Qirong, Zhao Dongyuan, Chen Jianye. Active Power Filter (In Chinese). Beijing: Science Press, (2005)
