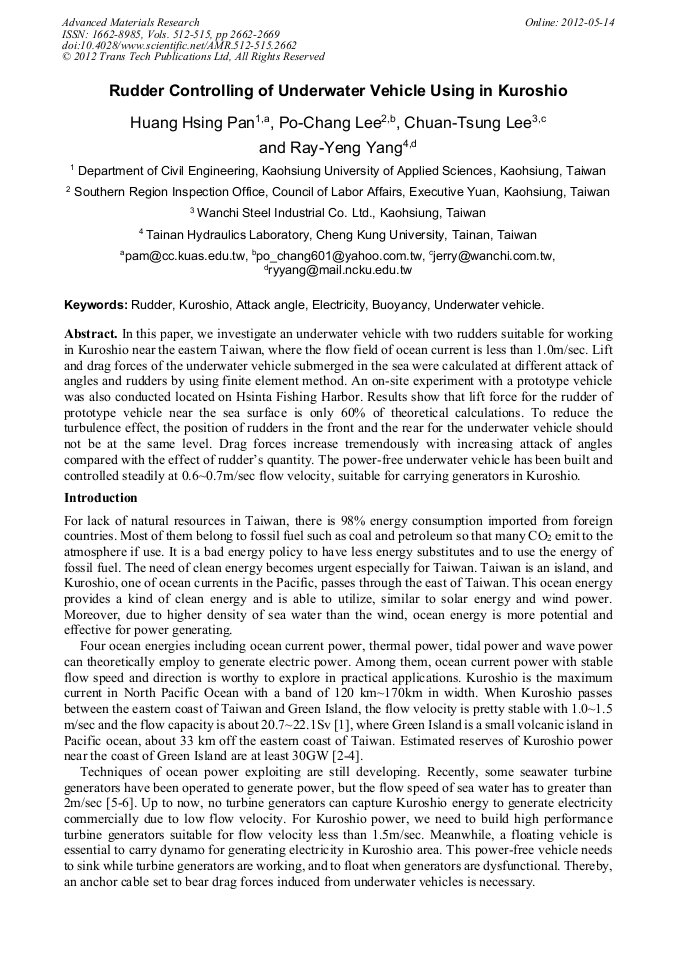

Rudder Controlling of Underwater Vehicle Using in Kuroshio

Abstract:

In this paper, we investigate an underwater vehicle with two rudders suitable for working in Kuroshio near the eastern Taiwan, where the flow field of ocean current is less than 1.0m/sec. Lift and drag forces of the underwater vehicle submerged in the sea were calculated at different attack of angles and rudders by using finite element method. An on-site experiment with a prototype vehicle was also conducted located on Hsinta Fishing Harbor. Results show that lift force for the rudder of prototype vehicle near the sea surface is only 60% of theoretical calculations. To reduce the turbulence effect, the position of rudders in the front and the rear for the underwater vehicle should not be at the same level. Drag forces increase tremendously with increasing attack of angles compared with the effect of rudder’s quantity. The power-free underwater vehicle has been built and controlled steadily at 0.6~0.7m/sec flow velocity, suitable for carrying generators in Kuroshio.

• Periodical: Advanced Materials Research (Volumes 512-515)
• Pages: 2662-2669
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.512-515.2662
• Online since: May 2012
• Authors: Huang Hsing Pan, Po Chang Lee, Chuan Tsung Lee, Ray Yeng Yang
• Keywords: Attack Angle, Buoyancy, Electricity, Kuroshio, Rudder, Underwater Vehicle

References

[1] W.E. Johns, T.N. Lee, D. Zhang, R. Zantopp, C.T. Liu and Y. Yang: J. Phys. Oceanography Vol. 31 (2001), p.1031

[2] F. Chen: Renewable and Sustainable Energy Rev. Vol.14 (2010), p.2655

[3] G. Hsu, C.T. Liu C.S. Liu and Hsu, M.K. Hsu: Tai power Enging Monthly Digest Vol. 624 (1999), p.81

[4] T.Y. Tang: Multi-Disciplinary Study on the Natural Resources in the Ocean East of Taiwan (I) Detailed Investigation of Current, Topography, Geology, Hydrography and Ecology of Lutao Area, (Report to National Science Council, Taiwan 2010)

[5] Technology White Paper on Ocean Current Energy Potential on the U.S. Outer Continental, Minerals Management Service, Renewable Energy and Alternate Use Program, U.S. Department of the Interior (May, 2006), p.5

[6] Presentation of the project Gulf Stream Energy Incorporated, 2006, by M. Hoover from Florida Hydro Company, http://www.gtsav.gatech.edu/outreach/workshop/presentations/mhoover.pdf

[7] M. Felli and M. Falchi: Exp Fluids Vol 51 (2011), p.1385

[8] S. H. Van, W. J. Kim, H. S. Yoon, Y. Y. Lee and I. R. Park: Experiments in Fluids Vol. 40 (2006), p.533

[9] Y.H. Özdemira, S. Bayraktara and T. Yılmaza: Flowfield Analysis of a Rudder by Using Computational Fluid Dynamics (5th Int. Advanced Technologies Sympo., Karabuk, Turkey 2009)

[10] H. Miyata, H. Akimoto and F. Hiroshima: J. Mar. Sci. Technology Vol.2 (1997), p.257
