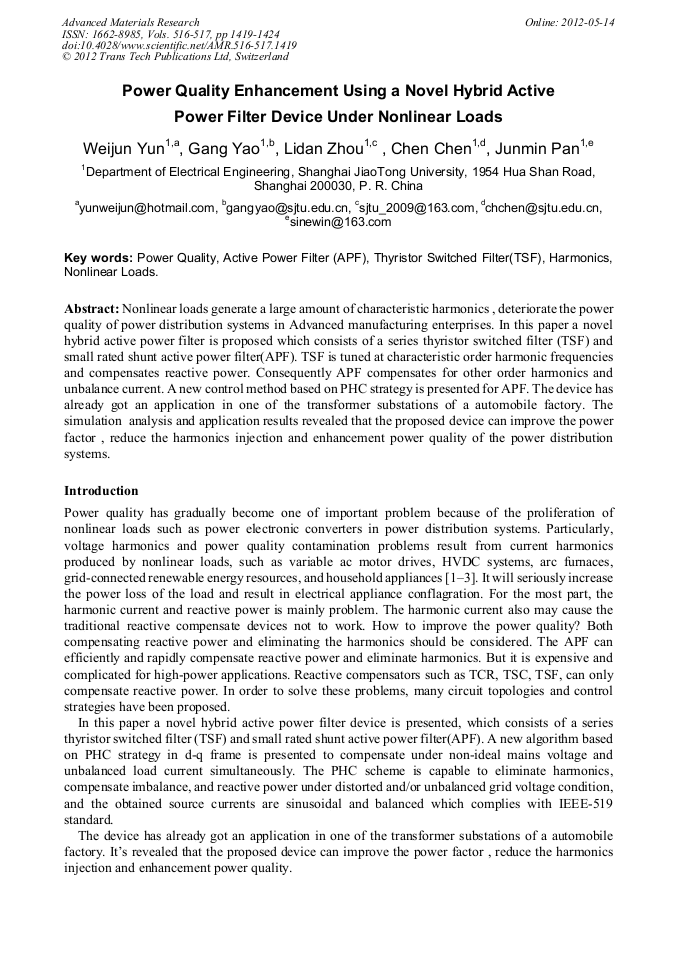

Power Quality Enhancement Using a Novel Hybrid Active Power Filter Device Under Nonlinear Loads

Abstract:

Nonlinear loads generate a large amount of characteristic harmonics , deteriorate the power quality of power distribution systems in Advanced manufacturing enterprises. In this paper a novel hybrid active power filter is proposed which consists of a series thyristor switched filter (TSF) and small rated shunt active power filter(APF). TSF is tuned at fifth and seventh order harmonic frequencies. Consequently APF compensates for third and other order harmonics, unbalance current and reactive power. A new control method based on PHC strategy is presented for APF. The device has already got an application in one of the transformer substations of a automobile factory. It’s revealed that the proposed device can improve the power factor , reduce the harmonics injection and enhancement power quality of the power distribution systems.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 1419-1424
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.1419
• Online since: May 2012
• Authors: Wei Jun Yun, Gang Yao, Li Dan Zhou, Chen Chen, Jun Min Pan
• Keywords: Active Power Filter (APF), Harmonics, Nonlinear Loads, Power Quality (PQ), Thyristor Switched Filter (TSF)

References

[1] Recommended Practices and Requirements for Harmonics Control in Electrical Power Systems, IEEE 519, 1993.

[2] Limits for Harmonic Current Emissions (Equipment Input Current up to and Including 16A Per Phase), IEC 61000-3-2 International Standard, 2000.

DOI: 10.3403/02216301

[3] TANG Jie, LUO An, FAN Rui-xiang, et al.Combined compensation system with reactive power compensation and hybrid active power filter and its engineering application [J].Proceeding of the CSEE, 2007, 27(1):88-92.

[4] Han Y., Khan M. M., Zhou L., Yao G., Chen C. A novel harmonic free power factor corrector based on T-type APF with adaptive linear neural network (ADALINE) control. Simulation Modelling Practice and Theory. 2008, No. 9,P. 1215–1238.

DOI: 10.1016/j.simpat.2008.06.002

[5] Sangsun Kim, Prasad N Enjeti, A New Hybrid Active Power Filter(APF)Topology, IEEE Transactions on Power Electronics, vol.17, no.1, 2002,pp.48-54.

DOI: 10.1109/63.988669

[6] LIU Hong-liang TANG Yu-peng YU Jie, Study of Dynamic Reactive Power and Harmonic Compensation System Based on a Combination of APF and TSC. ELECTRIC DRIVE, 2008, 38(10), pp.65-68.

[7] Y. Han, L. Xu, W. Yun, G. Yao, L. Zhou, M. Khan, and C. Chen, Power quality enhancement for automobile factory electrical distribution system-strategies and field practice. Przeglad Elektrotechniczny, vol. 85, no. 6, p.159–163, 2009.

[8] Y. Han, M. Khan, L. Xu, and G. Yao, A new scheme for power factor correction and active filtering for six pulse converters loads. Bulletin of the Polish Academy of Sciences-Technical Sciences, vol. 57, no. 2, p.157–169,2009.

DOI: 10.2478/v10175-010-0117-0

[9] Y. Han, L. Xu, M. Khan, L. Zhou, G. Yao, and C. Chen, A novel synchronization scheme for grid-connected converters by using adaptive linear optimal filter based pll (alofpll). Simulation Modelling Practice and Theory, vol. 17,no. 8, p.1299–1345, 2009.

DOI: 10.1016/j.simpat.2009.05.004

[10] Y. Han, M. Khan, L. Xu, L. Zhou, G. Yao, and C. Chen, A novel control strategy for active power filter using synchronous reference frame adalines. International Review of Electrical Engineering (IREE), vol. 3, no. 4, p.629–645, 2008.

[11] Y. Han, L. Xu, G. Yao, L. Zhou, M. Khan, and C. Chen. Flicker mitigation of arc furnace load using modified pq-r method. Przeglad Elektrotechniczny, vol. 85, no. 1,p.225–229, 2009.
