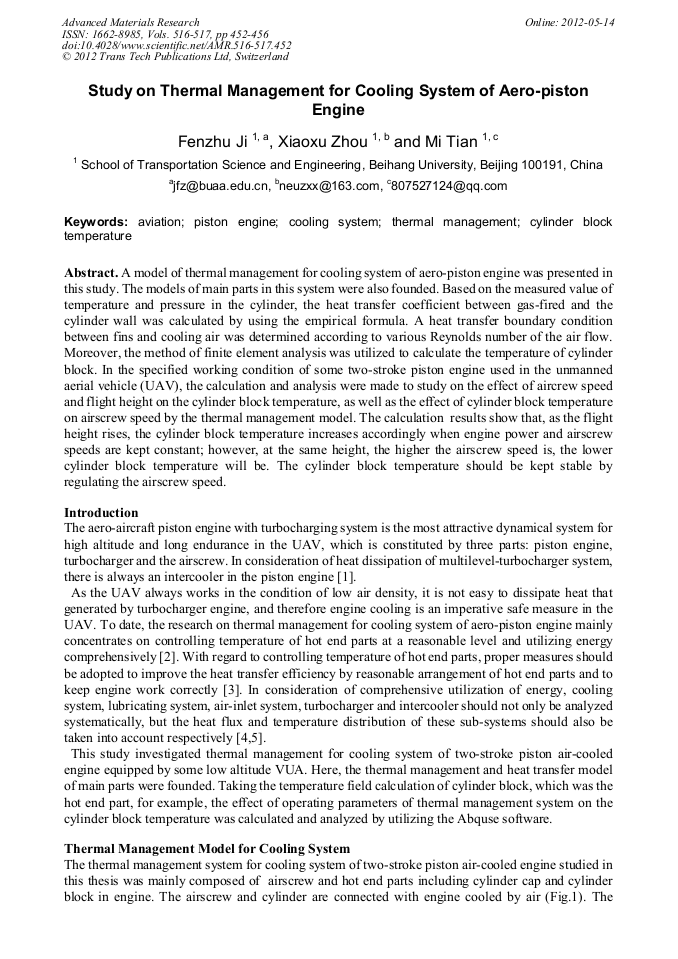

Study on Thermal Management for Cooling System of Aero-Piston Engine

Abstract:

A model of thermal management for cooling system of aero-piston engine was presented in this study. The models of main parts in this system were also founded. Based on the measured value of temperature and pressure in the cylinder, the heat transfer coefficient between gas-fired and the cylinder wall was calculated by using the empirical formula. A heat transfer boundary condition between fins and cooling air was determined according to various Reynolds number of the air flow. Moreover, the method of finite element analysis was utilized to calculate the temperature of cylinder block. In the specified working condition of some two-stroke piston engine used in the unmanned aerial vehicle (UAV), the calculation and analysis were made to study on the effect of aircrew speed and flight height on the cylinder block temperature, as well as the effect of cylinder block temperature on airscrew speed by the thermal management model. The calculation results show that, as the flight height rises, the cylinder block temperature increases accordingly when engine power and airscrew speeds are kept constant; however, at the same height, the higher the airscrew speed is, the lower cylinder block temperature will be. The cylinder block temperature should be kept stable by regulating the airscrew speed.

• Periodical: Advanced Materials Research (Volumes 516-517)
• Pages: 452-456
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.516-517.452
• Online since: May 2012
• Authors: Fen Zhu Ji, Xiao Xu Zhou, Mi Tian
• Keywords: Aviation, Cooling System, Cylinder Block Temperature, Piston Engine, Thermal Management

References

[1] Li Weidong, Zhao Yanting. The Power Device of Aero-Piston (in Chinese) [M]. ChenDu: The Press of Southwest Jiaotong University,(2004)

[2] Wang Wenlong, Wang Wei. Development of Integrated Environmental Control System/Thermal Management System (IECS/TMS) for Next Generation Fighter Aircraft (in Chinese) [J], Aircraft Design, 2004, 3, 74-76

[3] John R Wagner. An Advanced Engine Thermal Management System: Nonlinear Control and Test[C]. IEEE/ASME TRANSACTIONS ON MECHATRONICS, VOL. 10, NO. 2, APRIL 2005, 210-220

DOI: 10.1109/tmech.2005.844707

[4] Chris Vermillion, Jing Sun, Ken Butts, etl. Modeling and Analysis of a Thermal Management System for Engine Calibration[C]. International Conference on Control Applications Munich, Germany, October 4-6, 2006:2049-2053

DOI: 10.1109/cca.2006.286181

[5] J.Wagner, I. Paradis, E. Marotta,etl. Enhanced automotive engine cooling systems – A mechatronics approach, Int. J. Veh. Des. 2002, 28(1), 214-240

DOI: 10.1504/ijvd.2002.001987

[6] Lu Ruisong, Lin Fasheng, Zhang Rui. Heat Transfer and Heat Load of Engine (in Chinese) [M]. BeiJing: The Press of National Defense and Industry,(1985)

[7] Ding Xiaoliang. The Analysis of Thermal Load of F170 Air-cooled diesel engine (in Chinese) [D]. NanJing: Jiang Su University, (2005)
