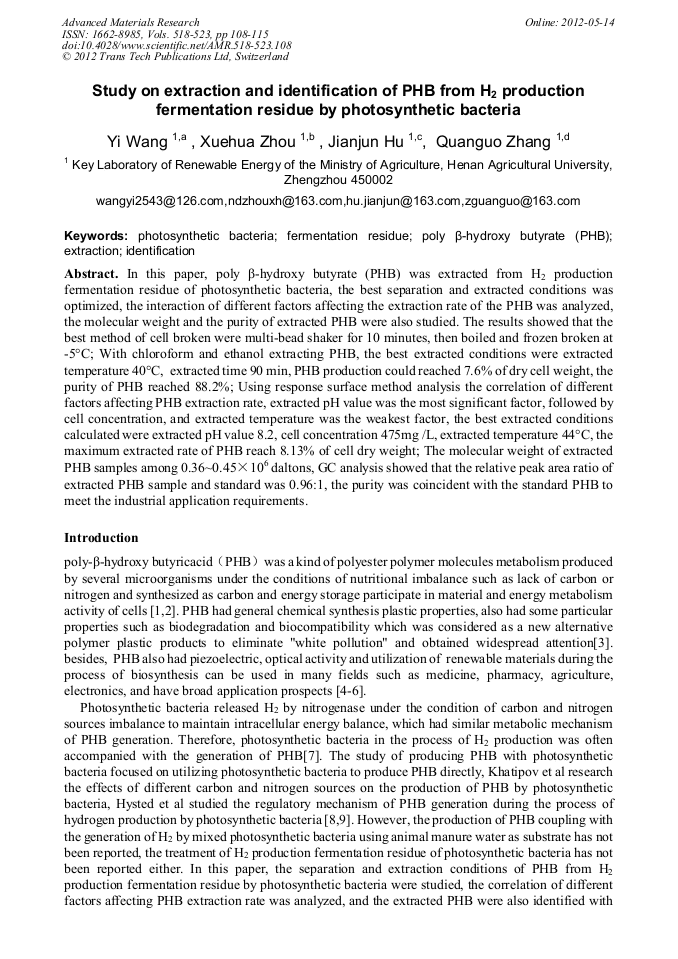

Study on Extraction and Identification of PHB from H₂ Production Fermentation Residue by Photosynthetic Bacteria

Abstract:

In this paper, poly β-hydroxy butyrate (PHB) was extracted from H2 production fermentation residue of photosynthetic bacteria, the best separation and extracted conditions was optimized, the interaction of different factors affecting the extraction rate of the PHB was analyzed, the molecular weight and the purity of extracted PHB were also studied. The results showed that the best method of cell broken were multi-bead shaker for 10 minutes, then boiled and frozen broken at -5°C; With chloroform and ethanol extracting PHB, the best extracted conditions were extracted temperature 40°C, extracted time 90 min, PHB production could reached 7.6% of dry cell weight, the purity of PHB reached 88.2%; Using response surface method analysis the correlation of different factors affecting PHB extraction rate, extracted pH value was the most significant factor, followed by cell concentration, and extracted temperature was the weakest factor, the best extracted conditions calculated were extracted pH value 8.2, cell concentration 475mg /L, extracted temperature 44°C, the maximum extracted rate of PHB reach 8.13% of cell dry weight; The molecular weight of extracted PHB samples among 0.36~0.45×10⁶ daltons, GC analysis showed that the relative peak area ratio of extracted PHB sample and standard was 0.96:1, the purity was coincident with the standard PHB to meet the industrial application requirements.

• Periodical: Advanced Materials Research (Volumes 518-523)
• Pages: 108-115
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.518-523.108
• Online since: May 2012
• Authors: Yi Wang, Xue Hua Zhou, Jian Jun Hu, Quan Guo Zhang
• Keywords: Extraction, Fermentation Residue, Identification, Photosynthetic Bacteria, Poly-β-Hydroxybutyrate (PHB)

References

[1] X.J. LI,X. Zhao, S.J. Chang,et al: J.Traditional Chinese Veterinary Medicine. Vol. 5 (2010), pp.40-43.

[2] S.S. Yang, B.B. Yuan, J. Chen: J.Shandong Institute of Light Industry (Natural Science Edition). Vol.24 (2010), P. 13-16.

[3] L.Q Wang, X.M. Lv and M.D. Chen: Friend of Science Amateurs. Vol. 21(2009), P. 22-28.

[4] B. Duan, M. Wang, Z.Y. Li,et al: Frontiers of Materials Science in China. Vol. 5(2011), pp.57-68.

[5] Y.T. Guan, L. Wang, F. Teng,et al: J. Tsinghua University(Sci and Tech). Vol. 47(2007),P. 107-114.

[6] Z.Q Guo, F. Li, D.B. Liu,et al: J. Inner Mongolia Normal University (Natural Science Edition). Vol. 40(2011), P. 297-302.

[7] D.H. Kho, J.H. J and H.KK. KIM: J.micro and biotech. Vol. 13 (2003), pp.477-481.

[8] E. Khatipov, M. Miyake, J. Mitake,et a1: FEMS Micro letters. Vol. 162 (1998), pp.39-45．

[9] Z.K. Wang, YM. Tian, Q. Liao,et al: China Envir Sci. Vol. 10 (2010),pp.1395-1401.

[10] W.J. Yue, C. Liu and X.F. Zhang: Eniver Sci & Tech. Vol. 30(2007),pp.26-28．

[11] J.Y. Ye, T. Liu, J. Zhai,et al: J. Chongqing Institute of Tech. Vol. 24(2010), pp.25-28.

[12] X.P. Xu, J.F. Chen and H.L. Xie: J. Fujian Teachers University(Natural Sci). Vol. 20(2004), pp.74-77.

[13] Y.G. Chen, J. Chen, G.C. Du,et al: Chem Industry and Eng Progress. Vol. 1(1998), P. 41-54.

[14] J.Y. Xin, Y.X. Zhang, L.L. Chen, et al: J. Chinese Institute of Food Sci and tech. Vol. 8(2008), pp.5-11.

[15] Y.L. Huang, Y.P. Chen, W.J. Chen,et al:Chinese Journal of Tropical Crops. Vol. 32(2011), pp.1158-1164.

[16] X. LI , Z.L. TAN, H.Z. Zhou,et al: Research of Envir Sci. Vol. 24(2011), pp.788-797.

[17] G.P. He, J.m. Nan and Y.H. Sun:Physical Chemistry Experiment (Chem Industry Press,2008).
