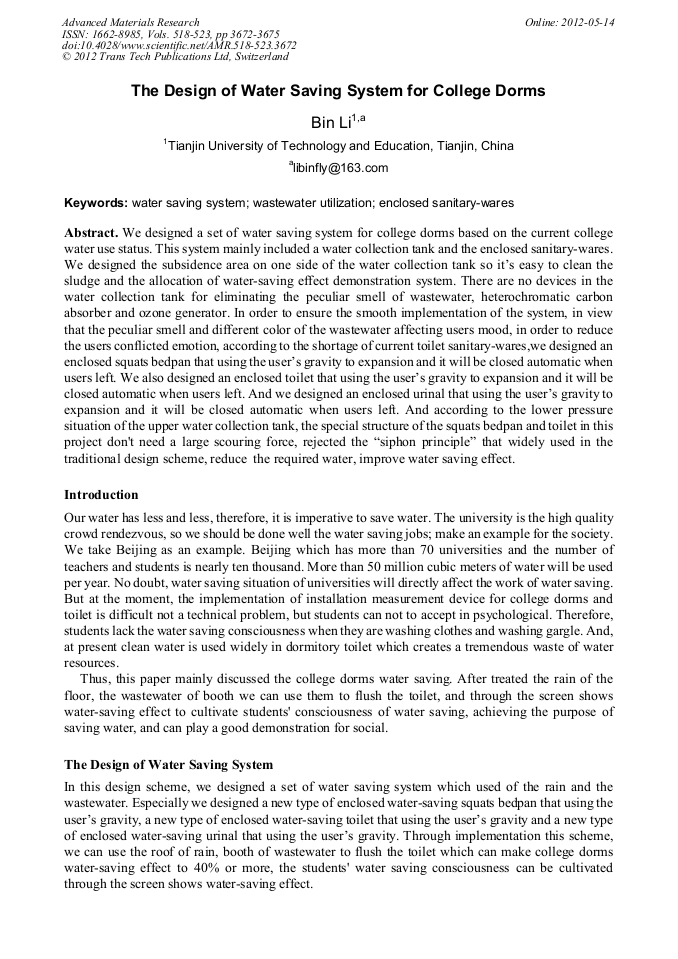

The Design of Water Saving System for College Dorms

Abstract:

We designed a set of water saving system for college dorms based on the current college water use status. This system mainly included a water collection tank and the enclosed sanitary-wares. We designed the subsidence area on one side of the water collection tank so it’s easy to clean the sludge and the allocation of water-saving effect demonstration system. There are no devices in the water collection tank for eliminating the peculiar smell of wastewater, heterochromatic carbon absorber and ozone generator. In order to ensure the smooth implementation of the system, in view that the peculiar smell and different color of the wastewater affecting users mood, in order to reduce the users conflicted emotion, according to the shortage of current toilet sanitary-wares,we designed an enclosed squats bedpan that using the user’s gravity to expansion and it will be closed automatic when users left. We also designed an enclosed toilet that using the user’s gravity to expansion and it will be closed automatic when users left. And we designed an enclosed urinal that using the user’s gravity to expansion and it will be closed automatic when users left. And according to the lower pressure situation of the upper water collection tank, the special structure of the squats bedpan and toilet in this project don't need a large scouring force, rejected the “siphon principle” that widely used in the traditional design scheme, reduce the required water, improve water saving effect.

• Periodical: Advanced Materials Research (Volumes 518-523)
• Pages: 3672-3675
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.518-523.3672
• Online since: May 2012
• Authors: Bin Li
• Keywords: Enclosed Sanitary-Wares, Wastewater Utilization, Water Saving System

References

[1] Li Shengduo. A water-saving irrigation monitoring system based on wireless data acquisition network, Advances in Intelligent and Soft Computing, Commun.114 (2012) 773-780.

DOI: 10.1007/978-3-642-03718-4_95

[2] Jin Ning, Li Shengfei, River water and ground source heat pump integrated application of energy-saving technology, Advanced Materials Research, Commun.433 (2012) 1178-1182.

DOI: 10.4028/www.scientific.net/amr.433-440.1178

[3] Huang Binbin, Zhang Xiaohui, i Study of the suitable water-saving technique model based on fuzzy neural network for Wannian County, Procedia Engineering, Commun.15 (2011) 4362-4366.

DOI: 10.1016/j.proeng.2011.08.819

[4] Sharif Asif, Technical adaptations for mechanized SRI production to achieve water saving and increased profitability in Punjab, Pakistan, Paddy and Water Environment, Commun.9 (2011) 111-119.

DOI: 10.1007/s10333-010-0223-5

[5] Sun Shijun, Zhang Xudong, Liu Xiuhua, Research on water-saving reform modes on the paddy irrigation district in Northeast China, Proceedings of 2011 International Symposium on Water Resource and Environmental Protection,Commun.4 (2011) 2733-2736.

DOI: 10.1109/iswrep.2011.5893444

[6] Lv Zhigang, Wang Peng, Water-saving controller of bathing based on STC89C58 MCU, Automation & Instrumentation, Commun.26 (2011) 57-60.

[7] Wang Qingfeng, Sun Jinhao, Xu Lina, Design of new water-saving flushing device based on ARM CORTEX-M0, 2011 International Conference on Electrical and Control Engineering, Commun.1 (2011) 638-640.

DOI: 10.1109/iceceng.2011.6057593
