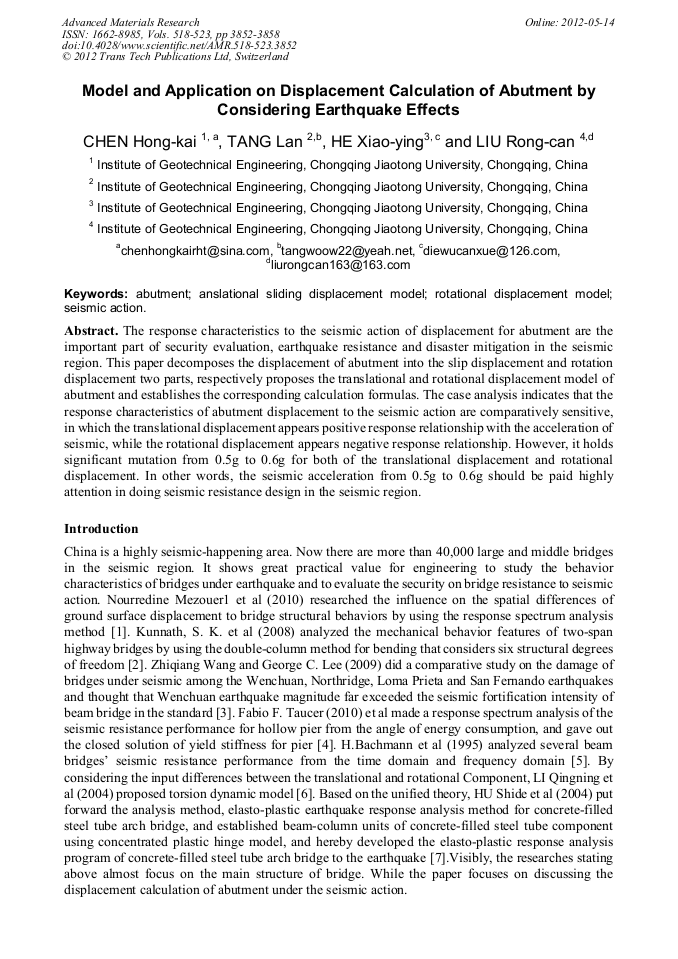

Model and Application on Displacement Calculation of Abutment by Considering Earthquake Effects

Abstract:

The response characteristics to the seismic action of displacement for abutment are the important part of security evaluation, earthquake resistance and disaster mitigation in the seismic region. This paper decomposes the displacement of abutment into the slip displacement and rotation displacement two parts, respectively proposes the translational and rotational displacement model of abutment and establishes the corresponding calculation formulas. The case analysis indicates that the response characteristics of abutment displacement to the seismic action are comparatively sensitive, in which the translational displacement appears positive response relationship with the acceleration of seismic, while the rotational displacement appears negative response relationship. However, it holds significant mutation from 0.5g to 0.6g for both of the translational displacement and rotational displacement. In other words, the seismic acceleration from 0.5g to 0.6g should be paid highly attention in doing seismic resistance design in the seismic region.

• Periodical: Advanced Materials Research (Volumes 518-523)
• Pages: 3852-3858
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.518-523.3852
• Online since: May 2012
• Authors: Hong Kai Chen, Lan Tang, Xiao Ying He, Rong Can Liu
• Keywords: Abutment, Anslational Sliding Displacement Model, Rotational Displacement Model, Seismic Action

References

[1] Dj.M. Maric, P.F. Meier and S.K. Estreicher: Mater. Sci. Forum Vol. 83-87 (1992), p.119

[2] M.A. Green: High Efficiency Silicon Solar Cells (Trans Tech Publications, Switzerland 1987).

[3] Y. Mishing, in: Diffusion Processes in Advanced Technological Materials, edtied by D. Gupta Noyes Publications/William Andrew Publising, Norwich, NY (2004), in press.

[4] G. Henkelman, G.Johannesson and H. Jónsson, in: Theoretical Methods in Condencsed Phase Chemistry, edited by S.D. Schwartz, volume 5 of Progress in Theoretical Chemistry and Physics, chapter, 10, Kluwer Academic Publishers (2000).

[5] R.J. Ong, J.T. Dawley and P.G. Clem: submitted to Journal of Materials Research (2003)

[1] Nourredine Mezouer, Kamel Silhadi and Hamid Afra. Importance of spatial variability of seismic ground motion effects on long beams response. Journal of Civil Engineering and Construction Technology, Vol.1-1(2010), pp.1-13.

[2] Kunnath, S. K., Erduran, E., Chai, Y. H, and Yashinsky., M. Effect of near-fault vertical ground motions on seismic response of highway overcrossings. J. Bridge Eng.,Vol.13-3(2008), p.282–290.

DOI: 10.1061/(asce)1084-0702(2008)13:3(282)

[3] Zhiqiang Wang and George C. Lee. A comparative study of bridge damage due to the Wenchuan, Northridge, Loma Prieta and San Fernando earthquakes[J].Earthquake Engineering and Engineering Vibration, Vol. 8-2(2009), pp.251-261.

DOI: 10.1007/s11803-009-9063-y

[4] Fabio F.Taucer, Carlo Paulotto and Gustavo Ayala. Hollow bridge-pier properties for response spectrum analysis. Bulletin of Earthquake Engineering, Vol.8-6(2010), pp.1397-1420.

DOI: 10.1007/s10518-010-9189-3

[5] H.Bachmann,P.Linde,T.Wenk. Capacity Design and Nonlinear Dynamic Analysis of Earthquake Resistant Structures[C]//10th European Conference on Earthquake Engineering, pp.11-20(1995).

[6] LI Qingning, ZHANG Xuefeng, LI Xiaofeng. Dynamic model analysis of arch bridge under rotational seismic input. Journal of Xi'an University of Architecture and technology, Vol. 36-4(2004), pp.417-420.

[7] HU Shide, SU Hong, WANG Junjie. Three dimensional elasto-plastic seismic response analysis of CFST bridge. China Journal of Highway and Transport, Vol.17-1(2004), pp.57-61.
