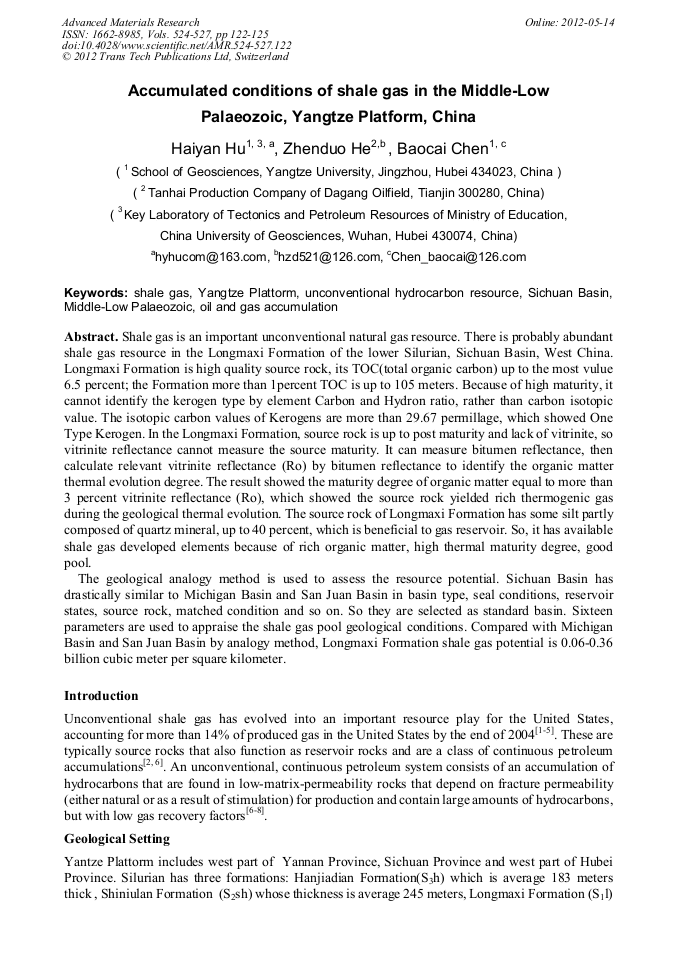

Accumulated Conditions of Shale Gas in the Middle-Low Palaeozoic, Yangtze Platform, China

Abstract:

Shale gas is an important unconventional natural gas resource. There is probably abundant shale gas resource in the Longmaxi Formation of the lower Silurian, Sichuan Basin, West China. Longmaxi Formation is high quality source rock, its TOC(total organic carbon) up to the most vulue 6.5 percent; the Formation more than 1percent TOC is up to 105 meters. Because of high maturity, it cannot identify the kerogen type by element Carbon and Hydron ratio, rather than carbon isotopic value. The isotopic carbon values of Kerogens are more than 29.67 permillage, which showed One Type Kerogen. In the Longmaxi Formation, source rock is up to post maturity and lack of vitrinite, so vitrinite reflectance cannot measure the source maturity. It can measure bitumen reflectance, then calculate relevant vitrinite reflectance (Ro) by bitumen reflectance to identify the organic matter thermal evolution degree. The result showed the maturity degree of organic matter equal to more than 3 percent vitrinite reflectance (Ro), which showed the source rock yielded rich thermogenic gas during the geological thermal evolution. The source rock of Longmaxi Formation has some silt partly composed of quartz mineral, up to 40 percent, which is beneficial to gas reservoir. So, it has available shale gas developed elements because of rich organic matter, high thermal maturity degree, good pool. The geological analogy method is used to assess the resource potential. Sichuan Basin has drastically similar to Michigan Basin and San Juan Basin in basin type, seal conditions, reservoir states, source rock, matched condition and so on. So they are selected as standard basin. Sixteen parameters are used to appraise the shale gas pool geological conditions. Compared with Michigan Basin and San Juan Basin by analogy method, Longmaxi Formation shale gas potential is 0.06-0.36 billion cubic meter per square kilometer.

• Periodical: Advanced Materials Research (Volumes 524-527)
• Pages: 122-125
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.524-527.122
• Online since: May 2012
• Authors: Hai Yan Hu, Zhen Duo He, Bao Cai Chen
• Keywords: Middle-Low Palaeozoic, Oil and Gas Accumulation, Shale Gas, Sichuan Basin, Unconventional Hydrocarbon Resource

References

[1] Jarvie D, Hill R, Ruble T. Unconventional shale-gas systems: The Mississippian Barnett Shale of north-central Texas as one model for thermogenic shale-gas assessment. AAPG Bulletin, v. 91, no. 4 p.475–499.

DOI: 10.1306/12190606068

[2] Schmoker, J W, 1995, Method for assessing continuous-type (unconventional) hydrocarbon accumulations, in D. L. Gautier, G. L. Dolton, K. I. Takahashi, and K. L. Varnes, eds., 1995 National assessment of United States oil and gas resources–Results, methodology, and supporting data: U.S. Geological Survey Digital Data Series 30, CD-ROM.

DOI: 10.3133/ds30_1995

[3] Y Mishing, in: Diffusion Processes in Advanced Technological Materials, edtied by D. Gupta Noyes Publications/William Andrew Publising, Norwich, NY (2004), in press.

[4] Huang W M, Liu S G, Ma W X, et al.. Shale gas exploration prospect of Lower Paleozoic in southeastern Sichuan and western Hubei-eastern Chongqing areas,China. Geological Bulletin of China, 2011, 30(2/3): 364-371.

[5] LI Shuang-jian, Xiao Kai-hua, Wo Yujin. Developmental Controlling Factors of Upper Ordovician-Lower Silurian High Quality Source Rocks in Marine Sequence, South China. ACTA SEDIMENTOLOGICA SINICA, Vol 26, No.5, 2008.

[6] Pollastro R.M. Jarvie D.M. Hill R.J.et al.Geologic framework of theMississippian Barnett Shale[J]. AAPG, 2007, 91(4): 405-436.

DOI: 10.1306/10300606008

[7] Daniel J.K..MARC BUSTIN R.Characterizing the shale gas resource potential of Devonian-Mississippian strata in the Western Canada sedimentary basin:Application of an integrated formation evaluation [J].AAPG,2008,92(1):87-125.

DOI: 10.1306/09040707048

[8] Anna M.M. Lynn M.W. Tim C.W.K.,et al.Microbial production and modification of gases in sedimentary basins:A geochemical case study froma Devonian shale gas play,Michigan Basin[J].AAPG Bulletin,2003,87(8):1355-1375.

DOI: 10.1306/9f82f69e-4bda-4f66-95b70e2bd2cc912f
