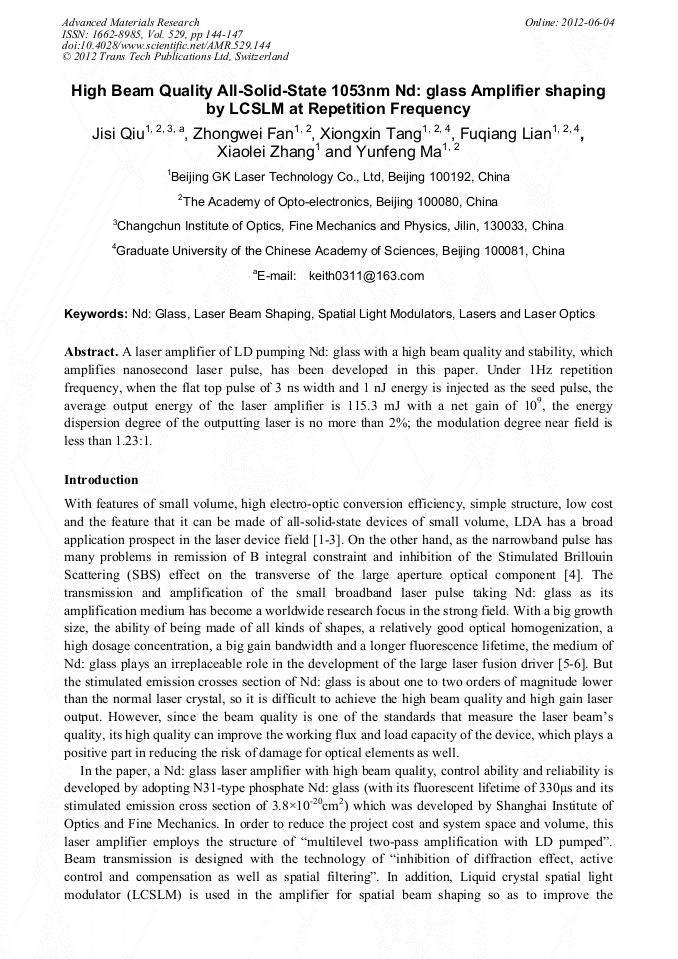

High Beam Quality All-Solid-State 1053nm Nd: Glass Amplifier Shaping by LCSLM at Repetition Frequency

Abstract:

A laser amplifier of LD pumping Nd: glass with a high beam quality and stability, which amplifies nanosecond laser pulse, has been developed in this paper. Under 1Hz repetition frequency, when the flat top pulse of 3 ns width and 1 nJ energy is injected as the seed pulse, the average output energy of the laser amplifier is 115.3 mJ with a net gain of 109, the energy dispersion degree of the outputting laser is no more than 2%; the modulation degree near field is less than 1.23:1.

• Periodical: Advanced Materials Research (Volume 529)
• Pages: 144-147
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.529.144
• Online since: June 2012
• Authors: Ji Si Qiu, Zhong Wei Fan, Xiong Xin Tang, Fu Qiang Lian, Xiao Lei Zhang, Yun Feng Ma
• Keywords: Laser, Laser Beam Shaping, Laser Optics, Nd: Glass, Spatial Light Modulators

References

[1] X. Yan, L. Guo, L. Zhang, et al. LD side-pumped 41 W high beam quality acousto-optical Q-switched single-rod Nd: YAG laser[J]. Laser Physics, 2001, 21(2): 323-326.

DOI: 10.1134/s1054660x11030236

[2] X.M. Duan, B.Q. Yao, G. Li, et al. Stable output, high power diode-pumped Tm: YLF laser with a volume Bragg grating [J]. Applied Physics B: Laser and Optics, 2001, 99(3): 465-468.

DOI: 10.1007/s00340-009-3821-4

[3] Y. Wu, G.Y. Jin, C.L. Li, et al. Diode-pumped Nd: LuVO4-Nd: YLF laser at 590 nm[J]. Laser Physics, 2001, 21(7): 1155-1158.

DOI: 10.1134/s1054660x11130299

[4] W. Wang, J. Wang, F. Wang, et al. Third harmonic generation of Nd: glass laser with novel composite deuterated KDP crystals[J]. Laser Physics, 2001, 20(10): 1923-(1926).

DOI: 10.1134/s1054660x10190175

[5] R.A. Ganeev, R.I. Tugushev and T. Usmanov, Application of the nonlinear optical properties of platinum anoparticles for the mode locking of Nd: glass laser[J]. Applied Physics B: Lasers and Optics , 2009, 94(3): 647-651.

DOI: 10.1007/s00340-009-3371-9

[6] A.A. Kuzmin, E.A. Khazanov A.A. Shaykin. Large-aperture Nd: glass laser amplifiers with high pulse repetition rate[J]. Opt. Express, 2011, 19(15): 14223-14232.

DOI: 10.1364/oe.19.014223

[7] Takashi Sekine, Shin-ichi Matsuoka, Ryo Yasuhara, et al. 84 Db amplification, 0. 46 J in a 10 Hz output diode-pumped Nd: YLF ring amplifier with phase-conjugated wavefront corrector[J]. Opt. Express, 2010, 18(13): 13927-13934.

DOI: 10.1364/oe.18.013927

[8] Andrey S. Ostrovsky, Gabriel Martínez-Niconoff, et al. Modulation of coherence and polarization using liquid crystal spatial light modulators[J]. Opt. Express, 2009, 17(7): 5257-5264.

DOI: 10.1364/oe.17.005257

[9] André Müller, Deepak Vijayakumar, Ole Bjarlin Jensen, et al. 16 W output power by high-efficient spectral beam combining of DBR-tapered diode lasers[J]. Opt. Express, 2011, 19(2): 1228-1235.

DOI: 10.1364/oe.19.001228

[10] Haotong Ma, Haichuan Zhao, Pu Zhou, et al. Adaptive conversion of multimode beam to near-diffraction-limited flattop beam based on dual-phase-only liquid-crystal spatial light modulators[J]. Opt. Express, 2010, 18(26): 27723-277302.

DOI: 10.1364/oe.18.027723

[11] H. Ma, P. Zhou, X. Wang, et al. Near-diffraction-limited annular flattop beam shaping with dual-phase-only liquid crystal spatial light modulators[J]. Opt. Express, 2010, 18(8): 8251–8260.

DOI: 10.1364/oe.18.008251

[12] R. El-Agmy, H. Bulte, A. H. Greenaway, et al. Adaptive beam profile control using a simulated annealing algorithm[J]. Opt. Express, 2005, 13(16): 6085–6091.

DOI: 10.1364/opex.13.006085
