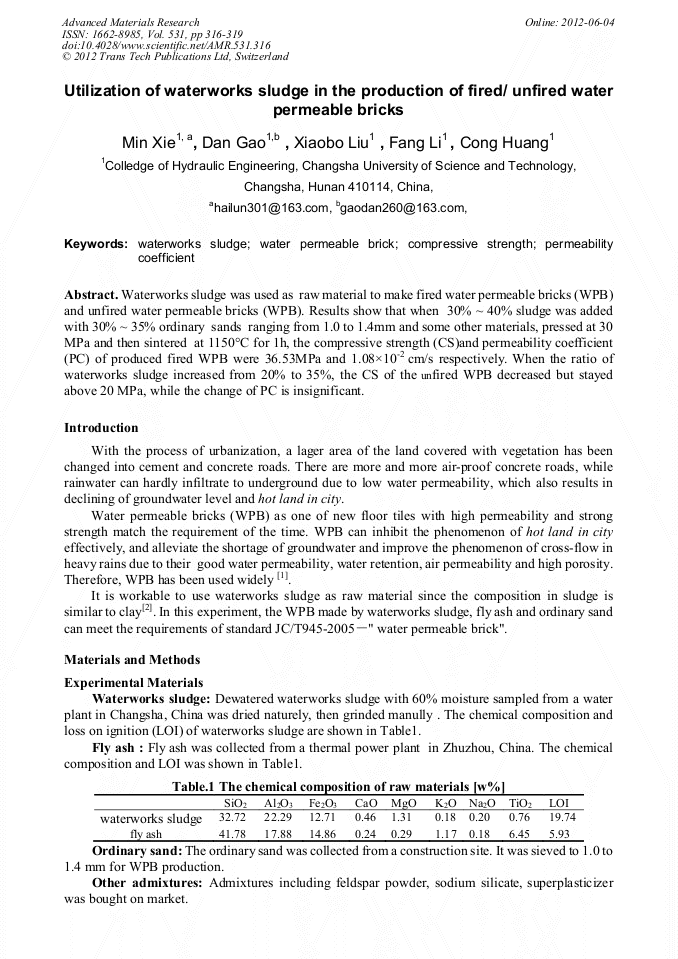

Utilization of Waterworks Sludge in the Production of Fired/Unfired Water Permeable Bricks

Abstract:

Waterworks sludge was used as raw material to make fired water permeable bricks (WPB) and unfired water permeable bricks (WPB). Results show that when 30% ~ 40% sludge was added with 30% ~ 35% ordinary sands ranging from 1.0 to 1.4mm and some other materials, pressed at 30 MPa and then sintered at 1150°C for 1h, the compressive strength (CS)and permeability coefficient (PC) of produced fired WPB were 36.53MPa and 1.08×10-2 cm/s respectively. When the ratio of waterworks sludge increased from 20% to 35%, the CS of the unfired WPB decreased but stayed above 20 MPa, while the change of PC is insignificant.

• Periodical: Advanced Materials Research (Volume 531)
• Pages: 316-319
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.531.316
• Online since: June 2012
• Authors: Min Xie, Dan Gao, Xiao Bo Liu, Fang Li, Cong Huang
• Keywords: Compressive Strength, Permeability Coefficient, Water Permeable Brick, Waterworks Sludge

References

[1] Miklas Scholz, Piotr Grabowiecki. Review of Permeable Pavement Systems. Building and Environment, Vol. 42.(2007), p.3830–3836

DOI: 10.1016/j.buildenv.2006.11.016

[2] Ren Bozhi, Tian Shenghai. Experimental Study of Sintering Brick with Sludge of the Urban Water Supply Plant and Fly-ash Clay. Urban Environmental and Urban Ecology,Vol.16 (2003),pp.13-15..

[3] Lv Shuzhen, Gu Qingyong. The production of water permeable ceramic brick using fluorite slag and perlite waste powders. New Building Materials. Vol.8 (2009), pp.31-33

[4] Li Guochang, Wang Ping. Study on production and performances of the water permeable brick from red mud. Metal Mine. Vol.12 (2009), pp.154-157

[5] P.Chindaprasirt,K.Pimraksa. A study of fly ash-lime granule unfired brick.Power Technology.Vol 182(2008), pp.33-41

DOI: 10.1016/j.powtec.2007.05.001
