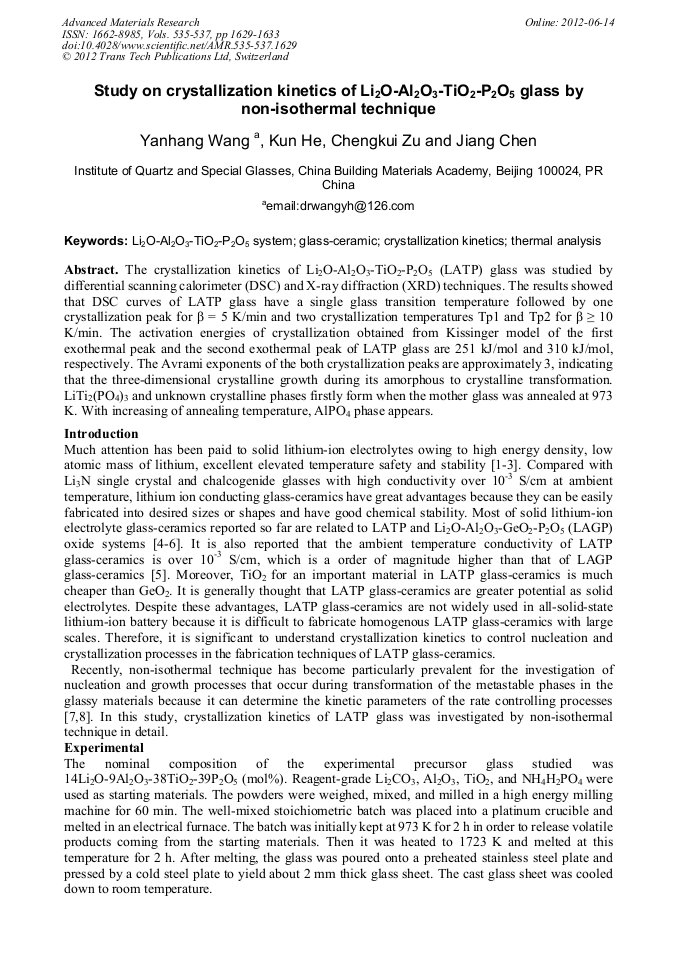

Study on Crystallization Kinetics of Li₂O-Al₂O₃-TiO₂-P₂O₅ Glass by Non-Isothermal Technique

Abstract:

The crystallization kinetics of Li₂O-Al₂O₃-TiO₂-P₂O₅ (LATP) glass was studied by differential scanning calorimeter (DSC) and X-ray diffraction (XRD) techniques. The results showed that DSC curves of LATP glass have a single glass transition temperature followed by one crystallization peak for β = 5 K/min and two crystallization temperatures T_p1 and T_p2 for β ≥ 10 K/min. The activation energies of crystallization obtained from Kissinger model of the first exothermal peak and the second exothermal peak of LATP glass are 251 kJ/mol and 310 kJ/mol, respectively. The Avrami exponents of the both crystallization peaks are approximately 3, indicating that the three-dimensional crystalline growth during its amorphous to crystalline transformation. LiTi₂(PO₄)₃ and unknown crystalline phases firstly form when the mother glass was annealed at 973 K. With increasing of annealing temperature, AlPO₄ phase appears.

• Periodical: Advanced Materials Research (Volumes 535-537)
• Pages: 1629-1633
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.535-537.1629
• Online since: June 2012
• Authors: Yan Hang Wang, Kun He, Cheng Kui Zu, Jiang Chen
• Keywords: Crystallization Kinetics, Glass-Ceramic, Li₂O-Al₂O₃-TiO₂-P₂O₅ System, Thermal Analysis

References

[1] A.M. Cruz, B.F. Eduardo, C.M.R. Ana: J. Non-Cryst. Solids Vol. 355 (2009), p.2295

[2] J.K. Feng, L. Lu, M.O. Lai: J. Alloys Compd. Vol. 501 (2010), p.255

[3] J. Kumar, B. Kumar: J. Power Sources Vol. 194 (2009), p.1113

[4] J. Fu: Solid State Ionics Vol. 104 (1997), p.191

[5] J. Fu: Solid State Ionics Vol. 96 (1997), p.195

[6] J.L. Narvaez-Semanate, A.C.M. Rodrigues: Solid State Ionics Vol. 181 (2010), p.1197

[7] S.H. Al-Heniti: J. Alloys Compd. Vol. 484 (2009), p.177

[8] Y.B. Saddeek, E.R. Shaaban, K.A. Aly, et al: Phys. B Vol. 404 (2009), p.2412

[9] K. He, Y.H. Wang, C.K. Zu, et al: Phys. B Vol. 406 (2011), p.3947

[10] W.A. Johnson, R.F. Mehl: Trans. AIME Vol. 135 (1939), p.416

[11] M. Avrami: J. Chem. Phys. Vol. 9 (1941), p.177

[12] D.W. Henderson: J. Non-Cryst. Solids Vol. 30 (1979), p.301

[13] E.R. Shaaban, M.Y. Hassaan, A.G. Mostafa, et al: J. Alloys Compd. Vol. 482 (2009), p.440

[14] C. Leonelli, T. Manfredini, M. Paganelli: J. Mater. Sci. Vol. 2 (1991), p.5041

[15] I.A. Augis, J.E. Bennett: J. Therm. Analy. Vol. 13 (1978), p.283
