Influence of Sintering Temperature and Atmosphere on Phase Makeup of SiAlON-Graphite Composites

Wen Wu Wang; Hui Yan Cao; Jin Xiang Wang; Zhi Ping Zhang

doi:10.4028/www.scientific.net/AMR.535-537.169

Paper Titles

Preparation of Polyaniline/SiO₂ Composites by Modified Silica Using Succinic Acid
p.149

The Effects of Oil Palm Fruit Bunch (OPFB) Fiber and Coupling Agent Loadings on the Performance of Hybrid Composites
p.154

The Preparation and Properties of MgO-CaO-ZrO₂ System Composite Materials
p.161

Preparation and Properties of Ce-Zr-Mn Composite Oxide Oxygen-Storage Materials
p.165

Influence of Sintering Temperature and Atmosphere on Phase Makeup of SiAlON-Graphite Composites
p.169

The Energy Absorption of Carbon Fiber Reinforced Polymer under Different Impact Speed
p.174

Synthesis of Carbon Nanofiber-Titania-Cordierite Monolith Composite and its Application as Catalyst Support on Citral Hydrogenation
p.178

Securing Superior Properties of Composite (PP+WF) through Central Composite Design
p.186

Preparation and Research on Performance of Fluorine Rubber/Metal Composite Sealing Boards
p.190

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 535-537Influence of Sintering Temperature and Atmosphere...

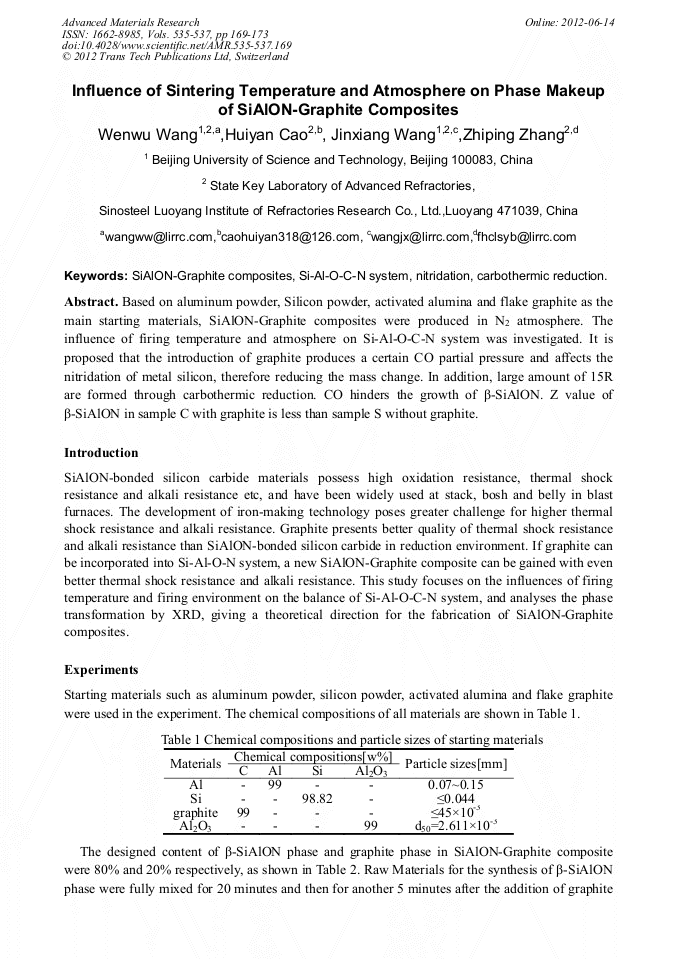

Influence of Sintering Temperature and Atmosphere on Phase Makeup of SiAlON-Graphite Composites

Abstract:

Based on aluminum powder, Silicon powder, activated alumina and flake graphite as the main starting materials, SiAlON-Graphite composites were produced in N₂ atmosphere. The influence of firing temperature and atmosphere on Si-Al-O-C-N system was investigated. It is proposed that the introduction of graphite produces a certain CO partial pressure and affects the nitridation of metal silicon, therefore reducing the mass change. In addition, large amount of 15R are formed through carbothermic reduction. CO hinders the growth of β-SiAlON. Z value of β-SiAlON in sample C with graphite is less than sample S without graphite.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 535-537)

Pages:

169-173

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.535-537.169

Citation:

Cite this paper

Online since:

June 2012

Authors:

Wen Wu Wang, Hui Yan Cao, Jin Xiang Wang, Zhi Ping Zhang

Keywords:

Carbothermic Reduction, Nitridation, Si-Al-O-C-N System, Sialon-Graphite Composites

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Huiyan Cao, Junguo Zhao, Wenwu Wang,etc.Refractories, vol. 42(2008), pp.405-40(In Chinese)

Google Scholar

[2] EKSTROM T, NYGREN M.SiAlON Ceramics[J].J Amer. Ceram. Soc, vol.75(1992),pp.259-276.

Google Scholar

[3] Zhaoyou Chen. Chemical Thermodynamics and Refractories[M]. First edition. Beijing: Metallurgical Industry Press,2005:482-484(In Chinese)

Google Scholar

[4] Akira Yamaguchi.Practical Thermodynamics and Its Application in High Temperature ceramics [M]. First Edition.Wuhan:Wuhan Industrial University Press.1993,31-32

Google Scholar

[5] Peiling Wang, Jiong Zhang, Yingxin Jia.etc. Journal of Inorganic materials, vol.15(2000), pp.756-7(In Chinese)

Google Scholar
