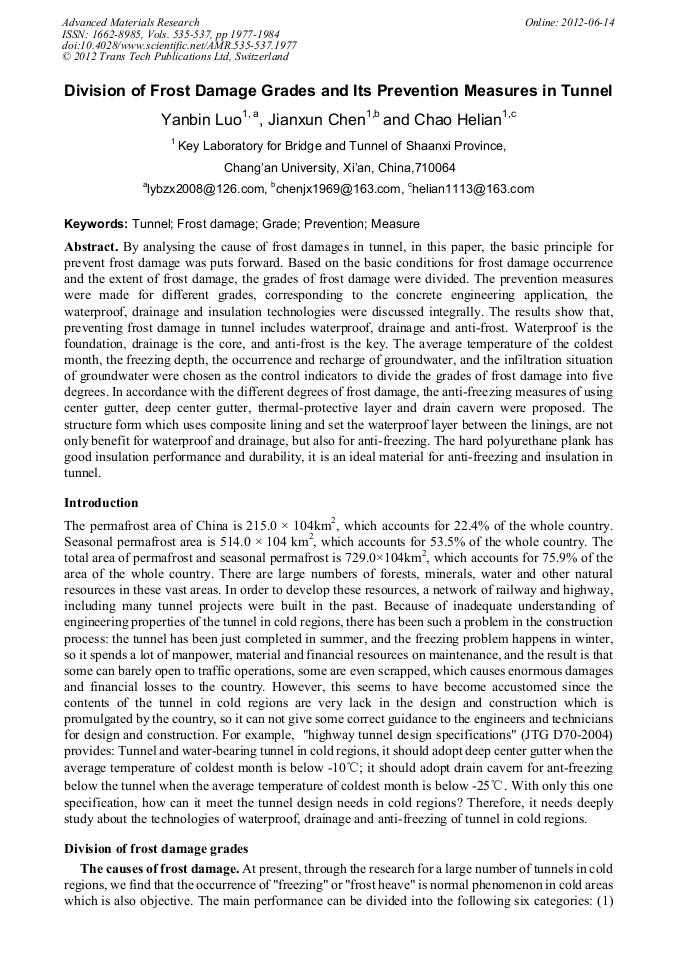

Division of Frost Damage Grades and its Prevention Measures in Tunnel

Abstract:

By analysing the cause of frost damages in tunnel, in this paper, the basic principle for prevent frost damage was puts forward. Based on the basic conditions for frost damage occurrence and the extent of frost damage, the grades of frost damage were divided. The prevention measures were made for different grades, corresponding to the concrete engineering application, the waterproof, drainage and insulation technologies were discussed integrally. The results show that, preventing frost damage in tunnel includes waterproof, drainage and anti-frost. Waterproof is the foundation, drainage is the core, and anti-frost is the key. The average temperature of the coldest month, the freezing depth, the occurrence and recharge of groundwater, and the infiltration situation of groundwater were chosen as the control indicators to divide the grades of frost damage into five degrees. In accordance with the different degrees of frost damage, the anti-freezing measures of using center gutter, deep center gutter, thermal-protective layer and drain cavern were proposed. The structure form which uses composite lining and set the waterproof layer between the linings, are not only benefit for waterproof and drainage, but also for anti-freezing. The hard polyurethane plank has good insulation performance and durability, it is an ideal material for anti-freezing and insulation in tunnel.

• Periodical: Advanced Materials Research (Volumes 535-537)
• Pages: 1977-1984
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.535-537.1977
• Online since: June 2012
• Authors: Yan Bin Luo, Jian Xun Chen, He Lian Chao
• Keywords: Frost Damage, Grade, Measure, Prevention, Tunnel

References

[1] Building Foundations Design Norms in permafrost regions (JGJ118-98)[S].Beijing: Chinese Building Industry Press, 1998, 99-100.

[2] Road Tunnel Design Norms (JTG D 70-2004) [S]. Beijing: The People Traffic Press, 2004, 50-51.

[3] Railroad third reconnaissances designing institutes. Engineering of frozen earth [M]. Beijing: Chinese Railroad Press, 2002, 261-275.

[4] Wu Zi-wang, Lai Yuan-ming, Zang En-mu,etc.Cold area tunneling [M]. Beijing: Ocean Press, 2003, 1-20.

[5] Lu Kang-cheng. Tunneling tests the detecting technology [M]. Beijing:The People Traffic Press, 2000, 69-76.

[6] Yang Yan-min. Asign of Dabanshan highway tunnel in cold area [C]//The international tunnel discussion exchanges assembly collected papers with highways build technology. Beijing：The People Traffic Press, 2002: 142-149.

[7] Chen Jian-xun, Zan Yong-jie. Field test and analysis of anti-freezing thermal-protective layer effect of the highway tunnel in cold area [J]. China Journal of Highway and Transport, 2001, 14 (4): 75-79.

[8] Chen Jian-xun. The use and calculation method of anti-freezing thermal-protective layer [J]. Civil Engineering Academic Journal, 2004, 37 (11): 85-88.

[9] Zhang Jian-xun, Chen Jian-xun, Zhu Ji-hua. The use of hard polyurethane in Tiziling tunnel [C]//The whole nation road tunnel in 2003 academic conferences collected papers. Beijing: The People Traffic Press, 2003: 455-457.
