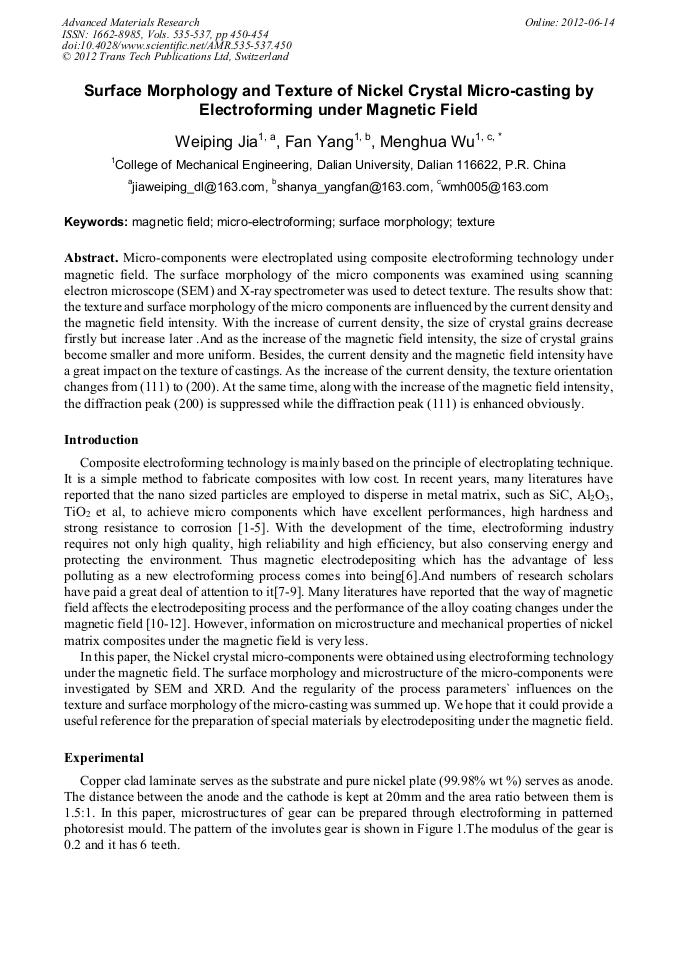

Surface Morphology and Texture of Nickel Crystal Micro-Casting by Electroforming under Magnetic Field

Abstract:

Micro-components were electroplated using composite electroforming technology under magnetic field. The surface morphology of the micro components was examined using scanning electron microscope (SEM) and X-ray spectrometer was used to detect texture. The results show that: the texture and surface morphology of the micro components are influenced by the current density and the magnetic field intensity. With the increase of current density, the size of crystal grains decrease firstly but increase later .And as the increase of the magnetic field intensity, the size of crystal grains become smaller and more uniform. Besides, the current density and the magnetic field intensity have a great impact on the texture of castings. As the increase of the current density, the texture orientation changes from (111) to (200). At the same time, along with the increase of the magnetic field intensity, the diffraction peak (200) is suppressed while the diffraction peak (111) is enhanced obviously.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 535-537)

Pages:

450-454

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.535-537.450

Citation:

Cite this paper

Online since:

June 2012

Authors:

Wei Ping Jia, Meng Hua Wu, Fan Yang

Keywords:

Magnetic Field, Micro-Electroforming, Surface Morphology, Texture

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] N. L. Zhu, S. Z. Yang and X. L. Ji: Heat processing technology, Vol.40 (2011), p.137.

Google Scholar

[2] X. Wang, Z. J. Li and P. Wang: Heat processing technology, Vol.40 (2011), p.128.

Google Scholar

[3] J. P. Liu and H. X. Ceng: Electroplating and finishing, Vol.30 (2011), p.41.

Google Scholar

[4] W. F. Zhang and X. H. Zheng: Surface technology, Vol.39 (2010), p.21.

Google Scholar

[5] J. Wu, Y. S. Chen and Y. S. Si: Metal products, Vol.36 (2010), p.25.

Google Scholar

[6] R. Z. Liu: Surface technology, Vol.30 (2001), p.7.

Google Scholar

[7] P.M. Ming, Y. D. Lv and Y. Zhang: Journal of Henan Polytechnic University, Vol.30 (2011), p.571.

Google Scholar

[8] Z. Y. Liu, M.L. Sun and F. Fan: Functional materials, Vol.41 (2010), p.1424.

Google Scholar

[9] T. C. Liu, Z. C. Lu and D. R. Li: Journal of iron and steel research, Vol.20 (2008), p.34.

Google Scholar

[10] Z. L. Li, J. J. Liu and H. Y. Guan: Materials protection, Vol.39 (2006), p.20.

Google Scholar

[11] J. Zhang, H. Z. Pei and G. L. Zhang: Materials protection, Vol.43 (2010), p.36.

Google Scholar

[12] Y. L. Wen, Y. B. Zhong and Z. M. Ren: The Chinese Journal of nonferrous metals, Vol.16 (2006), p.715.

Google Scholar
