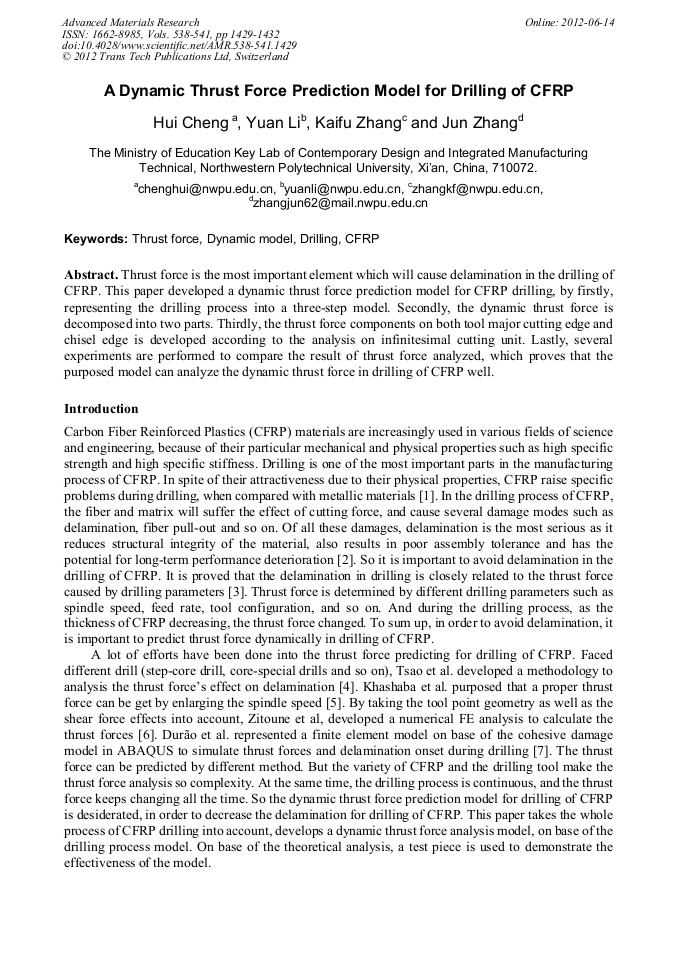

A Dynamic Thrust Force Prediction Model for Drilling of CFRP

Abstract:

Thrust force is the most important element which will cause delamination in the drilling of CFRP. This paper developed a dynamic thrust force prediction model for CFRP drilling, by firstly, representing the drilling process into a three-step model. Secondly, the dynamic thrust force is decomposed into two parts. Thirdly, the thrust force components on both tool major cutting edge and chisel edge is developed according to the analysis on infinitesimal cutting unit. Lastly, several experiments are performed to compare the result of thrust force analyzed, which proves that the purposed model can analyze the dynamic thrust force in drilling of CFRP well.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 1429-1432
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.1429
• Online since: June 2012
• Authors: Hui Cheng, Yuan Li, Kai Fu Zhang, Jun Zhang
• Keywords: Carbon Fiber Reinforced Polymer/Plastic (CFRP), Drilling, Dynamic Model, Thrust Force

References

[1] I. S. Jawahir, E. Brinksmeier, R. M'Saoubi, D. K. Aspinwall, J. C. Outeiro, D. Meyer, D. Umbrello, A. D. Jayal, Surface integrity in material removal processes: Recent advances [J]. CIRP Annals-Manufacuring Technology, 2011, 60 (2): 603-626.

DOI: 10.1016/j.cirp.2011.05.002

[2] E. Brinksmeier, S. Fangmann, R. Rentsch, Drilling of composites and resulting surface integrity [J]. CIRP Annals - Manufacturing Technology, 2011, 60 (1): 57-60.

DOI: 10.1016/j.cirp.2011.03.077

[3] V.N. Gaitonde, S.R. Karnik, J. C. Rubio, A. E. Correia, A.M. Abra, J. P. Davim, A study aimed at minimizing delamination during drilling of CFRP composites [J]. Journal of Composite Materials, 2011, 45(22): 2359-2368.

DOI: 10.1177/0021998311401087

[4] C. C. Tsao, Y. C. Chiu, Evaluation of drilling parameters on thrust force in drilling carbon fiber reinforced plastic (CFRP) composite laminates using compound core-special drills [J]. International Journal of Machine Tools and Manufacture, 2011, 51(9): 740-744.

DOI: 10.1016/j.ijmachtools.2011.05.004

[5] U.A. Khashaba, M.A. Seifb, M.A. Elhamida, Drilling analysis of chopped composites [J]. Composites Part A: Applied Science and Manufacturing, 2007, 38(1): 61–70.

DOI: 10.1016/j.compositesa.2006.01.020

[6] R. Zitoune, F. Collombet, Numerical prediction of the thrust force responsible of delamination during the drilling of the long-fibre composite structures [J]. Composites Part A: Applied Science and Manufacturing, 2007, 38 (3): 858-866.

DOI: 10.1016/j.compositesa.2006.07.009

[7] L. M. P. Durão, M. F. S. F. de Mourab, A.T. Marques, Numerical prediction of delamination onset in carbon/epoxy composites drilling [J]. Engineering Fracture Mechanics 2008 , 75 (9): 2767–2778

DOI: 10.1016/j.engfracmech.2007.03.009

[8] A. Langella, L. Nele, A. Maio, A torque and thrust prediction model for drilling of composite materials [J]. Composites: Part A, 2005, 36(1): 83-93.

DOI: 10.1016/s1359-835x(04)00177-0

[9] C. A. Mauch, L. K. Lauderbaugh, Modeling the drilling process—an analytical model to predict thrust force and torque [J]. Comput Model Simul Manuf Process, ASME Prod Eng Div 1990;48:59–65.
