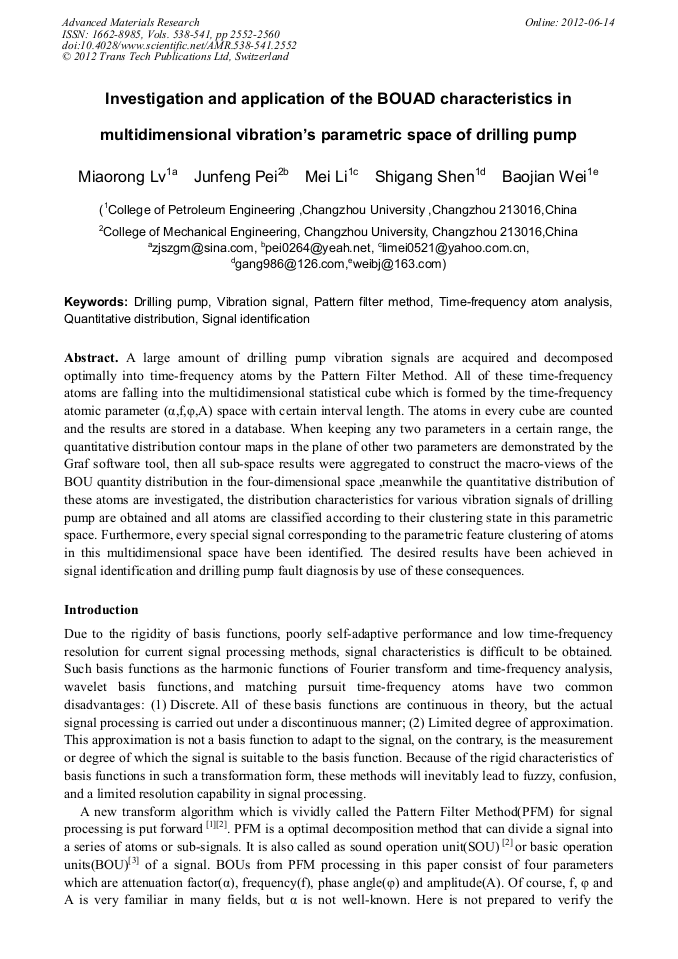

Investigation and Application of the BOUAD Characteristics in Multidimensional Vibration’s Parametric Space of Drilling Pump

Abstract:

A large amount of drilling pump vibration signals are acquired and decomposed optimally into time-frequency atoms by the Pattern Filter Method. All of these time-frequency atoms are falling into the multidimensional statistical cube which is formed by the time-frequency atomic parameter (α,f,φ,A) space with certain interval length. The atoms in every cube are counted and the results are stored in a database. When keeping any two parameters in a certain range, the quantitative distribution contour maps in the plane of other two parameters are demonstrated by the Graf software tool, then all sub-space results were aggregated to construct the macro-views of the BOU quantity distribution in the four-dimensional space ,meanwhile the quantitative distribution of these atoms are investigated, the distribution characteristics for various vibration signals of drilling pump are obtained and all atoms are classified according to their clustering state in this parametric space. Furthermore, every special signal corresponding to the parametric feature clustering of atoms in this multidimensional space have been identified. The desired results have been achieved in signal identification and drilling pump fault diagnosis by use of these consequences.

• Periodical: Advanced Materials Research (Volumes 538-541)
• Pages: 2552-2560
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.538-541.2552
• Online since: June 2012
• Authors: Miao Rong Lv, Jun Feng Pei, Mei Li, Shi Gang Shen, Bao Jian Wei
• Keywords: Drilling Pump, Pattern Filter Method, Quantitative Distribution, Signal Identification, Time-Frequency Atom Analysis, Vibration Signal

References

[1] Lv Miaorong,Wang Qian.Application of Pattern Filter Method on Well Site Vibration Signal Separation[J]. Noise and Vibration Control,2010,30(2):107-110.

[2] Lv Miaorong,Chen Zhiqiang,Li Mei.New Separation Method for Weak Vibration Signals from Mechanical Equipments[J]. Chemical Engineering & Machinery,2011,38(5):525-530.

[3] Lv Miaorong,Gu Desheng, Peng Zhenbin. The Selection and Application of Speech Signal Basic Operationunit Uint[C].2007 communication theory and technology new development——the 12th National Youth Communication Conference of China(Rudin), September 2007:736-743.

[4] Lv Miaorong, Zhoulin, Wang Li, Ma Yuming. A New Method of Quasi-Periodic Signal Processing in Petroleum Engineering[J]. Petroleum Drilling Techniques, 37(5):89-92.

[5] Yang QiJun, Xu Changhang. Application of Bispectral Analysis to the Fault Diagnosis of Reciprocating Pump[J]. Journal of Vibration Engineering, 2001, 14(4):464~468.

[6] DOU Wei; LIU Zhan-sheng; WANG Xiao-wei. Fault Diagnosis Approach Based on High-order Spectral and Principal Component Analysis[J]. Fluid Machinery, 2007, 35(2):46-50.
