Parametric Design of Cycloid Gear Based on SolidWorks

Abstract:

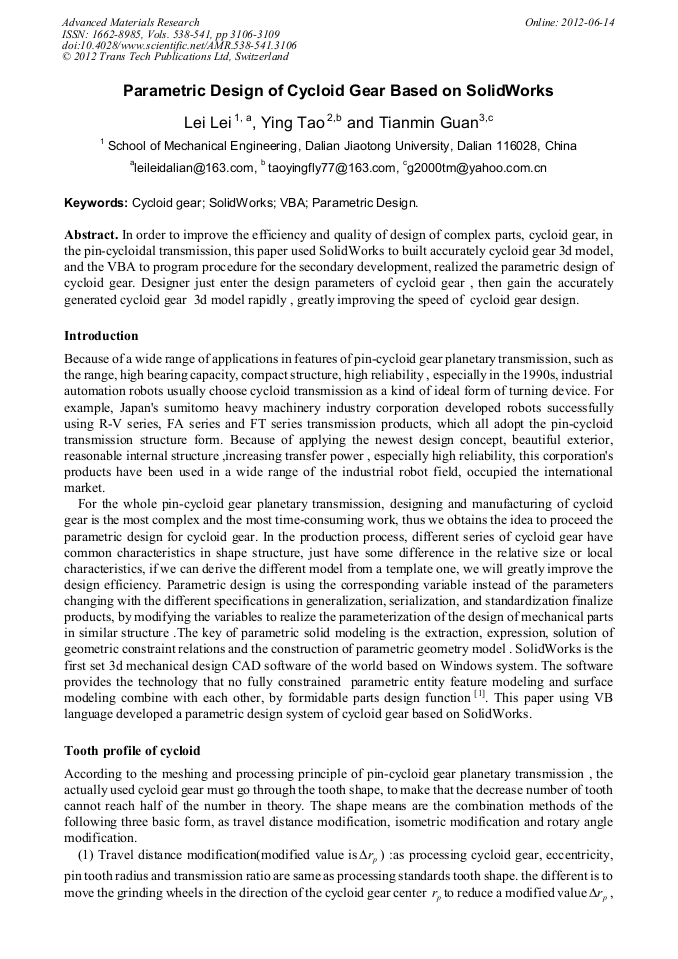

In order to improve the efficiency and quality of design of complex parts, cycloid gear, in the pin-cycloidal transmission, this paper used SolidWorks to built accurately cycloid gear 3d model, and the VBA to program procedure for the secondary development, realized the parametric design of cycloid gear. Designer just enter the design parameters of cycloid gear , then gain the accurately generated cycloid gear 3d model rapidly , greatly improving the speed of cycloid gear design.
