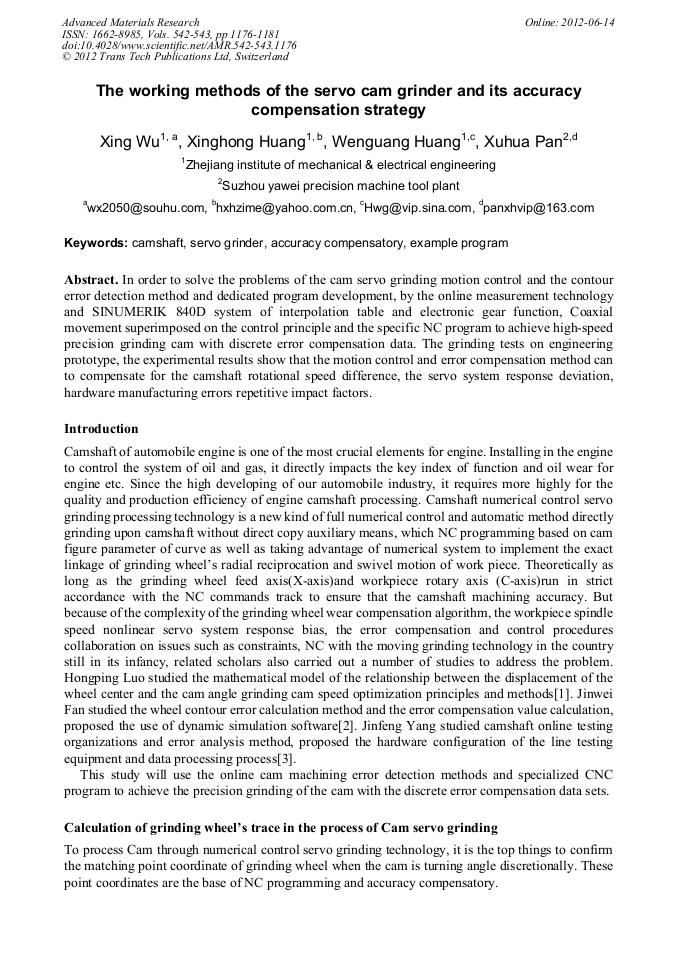

The Working Methods of the Servo Cam Grinder and its Accuracy Compensation Strategy

Abstract:

In order to solve the problems of the cam servo grinding motion control and the contour error detection method and dedicated program development, by the online measurement technology and SINUMERIK 840D system of interpolation table and electronic gear function, Coaxial movement superimposed on the control principle and the specific NC program to achieve high-speed precision grinding cam with discrete error compensation data. The grinding tests on engineering prototype, the experimental results show that the motion control and error compensation method can to compensate for the camshaft rotational speed difference, the servo system response deviation, hardware manufacturing errors repetitive impact factors.

• Periodical: Advanced Materials Research (Volumes 542-543)
• Pages: 1176-1181
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.542-543.1176
• Online since: June 2012
• Authors: Xing Wu, Xing Hong Huang, Wen Guang Huang, Xu Hua Pan
• Keywords: Accuracy Compensatory, Camshaft, Example Program, Servo Grinder

References

[1] H.P. Luo, Z.X. Zhou, Z.Y. Sun etc: Hunan University, Vol.3 (2002), p.62. (In Chinese)

[2] J.W. Fan, J.L. Guan, S.Z. Yan etc: China Mechanical Engineering, Vol.15 (2004), pp.1123-1124. (In Chinese)

[3] J.F. Yang, Z.Y. Sun: Mechanical design and manufacturing, Vol.8. (2009), p.174. (In Chinese)

[4] SIEMENS ltd .SINUMERIK 840D/840Di/810D/FM-NC Programming Guide (2004)
