The Monitoring of CNC Machine Processing Condition Based on the BP Neural Network

Abstract:

As an example for the test of built monitoring system, the experimentation was carried out to monitor the condition of tool wear, which related with the machining process closely. In pattern recognition, using the nonlinear mapping function of neural network, a three-layer BP artificial neural network was selected to carry out the mapping between the processing status and related signal features. In this way, the monitoring of machining processing was implemented. The Matlab Script node of LabVIEW software was used to call the neural network package of Matlab, which reduced the program development cycle and increased the reliability of the program. According to the cutting experimentation of the finger milling cutter, it is verified that BP artificial neural network can effectively recognize the tool condition and accomplish the wear prediction.

You might also be interested in these eBooks

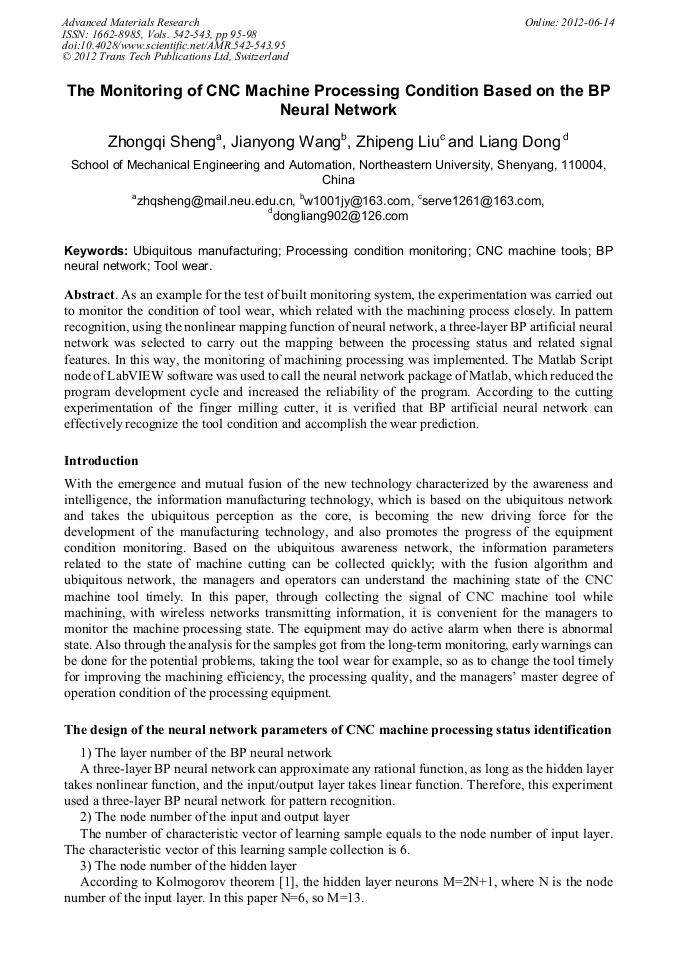

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 542-543)

Pages:

95-98

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.542-543.95

Citation:

Cite this paper

Online since:

June 2012

Authors:

Zhong Qi Sheng, Jian Yong Wang, Zhi Peng Liu, Liang Dong

Keywords:

BP Neural Network (BPNN), CNC Machine Tool, Processing Condition Monitoring, Tool Wear, Ubiquitous Manufacturing

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Marek Balazinski, Ernest Czogala, Krzysztof Jemielniak etc. Tool condition monitoring using artificial intelligence methods [J], Engineering Applications of Artificial Intelligence, 2002, 15: 73-80

DOI: 10.1016/s0952-1976(02)00004-0

Google Scholar

[2] International Telecommunication Union, Y. 2002(Y.NGN-UbiNet). Overview of ubiquitous networking and of its support in NGN[S].Geneva:ITU, (2009)

Google Scholar

[3] Yan W, Lee K. S, Wong Y. S. Investigation of indices based on milling force for tool wear in milling[J], Journal of Materials Processing Technology,1999, 89: 245-142

DOI: 10.1016/s0924-0136(99)00143-0

Google Scholar

[4] Wang Chenshu, Tzeng Y. R. A wireless networking technologies overview over ubiquitous service applications[C], NCM2008.Gyeongju, 2008:156-161

Google Scholar

[5] Bernhard Sick. On-line and indirect tool wear monitoring in turning with artificial neural networks: A review of more than a decade of research [J], Mechanical System and Signal Processing, 2002, 16(4): 487-54

DOI: 10.1006/mssp.2001.1460

Google Scholar
