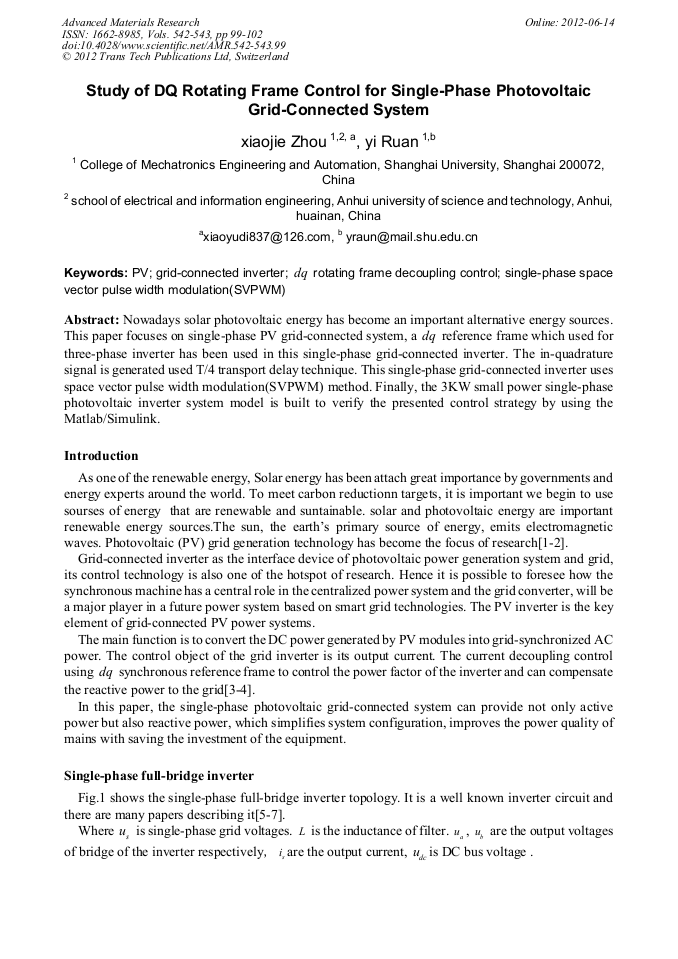

Study of DQ Rotating Frame Control for Single-Phase Photovoltaic Grid-Connected System

Abstract:

Nowadays solar photovoltaic energy has become an important alternative energy sources. This paper focuses on single-phase PV grid-connected system, a reference frame which used for three-phase inverter has been used in this single-phase grid-connected inverter. The in-quadrature signal is generated used T/4 transport delay technique. This single-phase grid-connected inverter uses space vector pulse width modulation(SVPWM) method. Finally, the 3KW small power single-phase photovoltaic inverter system model is built to verify the presented control strategy by using the Matlab/Simulink.

• Periodical: Advanced Materials Research (Volumes 542-543)
• Pages: 99-102
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.542-543.99
• Online since: June 2012
• Authors: Xiao Jie Zhou, Yi Ruan
• Keywords: Grid-Connected Inverter, PV, Rotating Frame Decoupling Control, Single-Phase Space Vector Pulse Width Modulation(SVPWM)

References

[1] EPIA, 'Global Market Outlook for Photovoltaics until 2014', May 2010.

[2] BTM Consult, 'World Market Update 2009(Forecast 2010-2014)', March 2010. www.btm.dk

[3] L. Hassaine, E. Olias, J. Quintero, and M. Haddadi, "Digital power factor control and reactive power regulation for grid-connected photovoltaic inverter," Renew. Energ., vol. 34, no. 1, p.315–321, Jan. 2009.

DOI: 10.1016/j.renene.2008.03.016

[4] Salaet J, Alepuz S, Gilabert A, et al. D-Q modeling and control of a single phase three-level boost rectifier with power factor correction and neutral-point voltage balancing[C]. IEEE Power Electronics Specialists Conference, 2002: 514-519.

DOI: 10.1109/psec.2002.1022505

[5] Yi Longqiang, Dai Yuxing. SVPWM technique applied to single-phase inverter power[J]. Transactions of China Electrotechnical Society, 2007, 22(9):112-127.

[6] Zhang, R.; Cardinal, M.; Szczesny, P.; Dame, M. A grid simulator with control of single-phase power converters in D-Q rotating frame[C]. Power Electronics Specialists Conference, 2002: 1431 – 1436.

DOI: 10.1109/psec.2002.1022377

[7] Dasgupta,S.,Sahoo S.K. Panda S.K. Single-Phase Inverter Control Techniques for Interfacing Renewable Energy Sources With Microgrid—Part I: Parallel-Connected Inverter Topology With Active and Reactive Power Flow Control Along With Grid Current Shaping", Power Electronics, IEEE Transactions on, On page(s): 717 - 731 Volume: 26, Issue: 3, March (2011)

DOI: 10.1109/tpel.2010.2096479

[8] Dong Dong,Thacker,T.,Burgos,R.,Fei Wang,Boroyevich,D.,"On Zero Steady-State Error Voltage Control of Single-Phase PWM Inverters With Different Load Types", Power Electronics, IEEE Transactions on, On page(s): 3285 - 3297 Volume: 26, Issue: 11, Nov. (2011)

DOI: 10.1109/tpel.2011.2157361

[9] Seung-Yong Lee,Young-Min Seo,Myeong-Soo Kim,Soon-Chan Honj,"Boost type inverter system for compensation of voltage sag", Power Electronics and ECCE Asia (ICPE & ECCE), 2011 IEEE 8th International Conference on, On page(s): 2757 - 2762

DOI: 10.1109/icpe.2011.5944768
